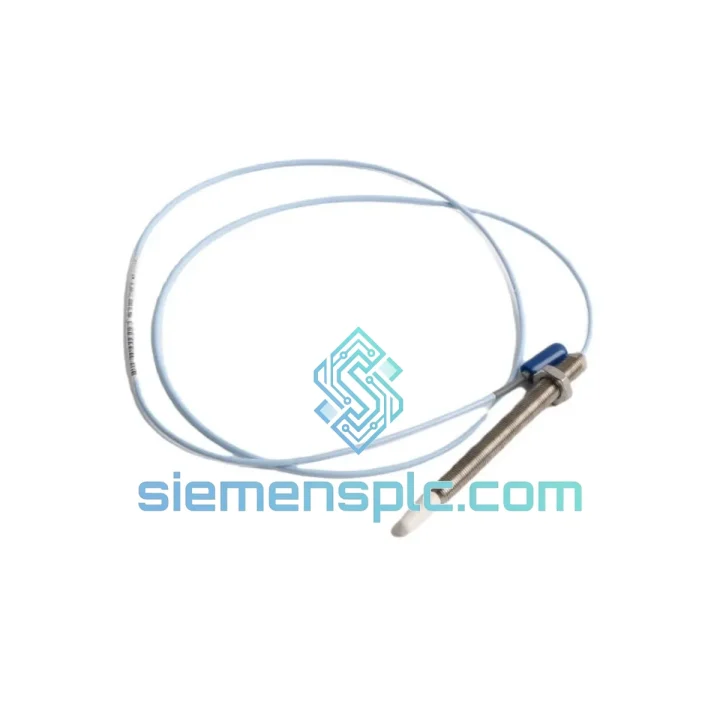

Bently Nevada 330905-00-15-10-02-00 Proximity Transducer System – 3300 XL Series

Bently Nevada 330905-00-15-10-02-00 — Eddy-Current Shaft Monitoring in Continuous Rotating Machinery

The Bently Nevada 330905-00-15-10-02-00 is a factory-matched, three-component proximity transducer system within the 3300 XL product family. It delivers non-contact, DC-coupled displacement measurement of rotating shafts with a flat frequency response from 0 Hz to 10,000 Hz (−3 dB). The system integrates a probe, a 15 ft (4.57 m) armored coaxial probe cable, a 10 ft (3.05 m) extension cable, and a dedicated oscillator-demodulator driver module — all calibrated as a matched set at the factory to a sensitivity of 200 mV/mil (7.87 V/mm).

In a typical turbomachinery protection loop, this transducer system occupies the field-sensing layer between the rotating shaft and the rack-mounted monitor (e.g., Bently Nevada 3500/40M). Its output is a DC-biased analog voltage proportional to the air gap between the probe tip and the conductive target surface. The driver module conditions the raw oscillator signal, applies temperature compensation, and presents a low-impedance output suitable for long cable runs to the monitor rack without signal degradation. This architecture eliminates the need for field-side signal conditioning amplifiers and reduces wiring complexity in skid-mounted installations.

Deployment environments where this model is routinely specified include steam turbine radial bearing planes, centrifugal compressor thrust collar positions, boiler feed pump shaft extensions, and gearbox high-speed pinion journals. In each case, the measurement objective is identical: continuous, sub-micron resolution tracking of shaft centerline position and dynamic vibration amplitude, feeding alarm and trip logic in the protection monitor without any mechanical contact with the rotating element.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330905-00-15-10-02-00 operates on the eddy-current inductive principle. The probe tip contains a wound coil driven by a high-frequency oscillator (typically 1.0 MHz carrier) embedded in the driver module. When the probe tip approaches a conductive target, the alternating magnetic field induces circulating eddy currents in the target surface. These eddy currents create a counter-magnetic field that loads the oscillator circuit, reducing its amplitude in proportion to the gap distance. The driver’s demodulator extracts this amplitude modulation and converts it to a DC-proportional output voltage.

The matched-set calibration approach is central to the system’s accuracy. The probe coil impedance, the cable’s distributed capacitance and inductance, and the driver’s oscillator tuning are characterized together at the factory. Any substitution of a single component — even with a nominally identical part number — alters the resonant characteristics of the LC circuit and shifts the sensitivity curve. This is why API 670 Section 6.3 mandates full system recalibration after any component replacement.

The −02-00 driver suffix indicates a standard (non-barrier) output configuration without a built-in Zener safety barrier. In Zone 1 or Zone 2 installations, an external certified barrier (e.g., MTL 787S or P+F KFD2-STC4-Ex1) must be inserted in the signal loop between the driver and the monitor input. The driver’s output impedance is low enough (<100 Ω) to drive cable runs of 300 m or more to the monitor rack without measurable signal attenuation at frequencies up to 10 kHz.

EMC performance is achieved through the coaxial cable construction: the outer braid provides a continuous Faraday shield from probe tip to driver output connector, attenuating radiated interference from adjacent VFDs, switchgear, and high-current bus bars. The driver enclosure is aluminum alloy with conductive gaskets, providing additional shielding against conducted emissions. In installations with severe EMI environments (e.g., near large synchronous motors or arc furnaces), the system maintains output noise below 5 mV RMS — well within the 3500 monitor’s noise floor specification.

System Integration Benefits

• Direct 3500 Monitor Compatibility: The −24 VDC output and 200 mV/mil sensitivity are natively matched to the Bently Nevada 3500/40M Proximitor I/O module input specifications, requiring no scaling resistors or signal conditioning at the rack.
• Deterministic Alarm Response: The DC-coupled output ensures that shaft position changes at 0 Hz (slow roll, thermal bow) are captured with the same fidelity as high-frequency vibration events, eliminating the blind spot present in AC-coupled sensor systems.
• API 670 Trip Logic Integrity: The flat frequency response to 10 kHz covers all relevant vibration orders for machinery operating up to 600,000 RPM (1×), ensuring that the protection monitor receives unattenuated signals for both radial vibration and axial position trip channels.
• Diagnostic Transparency via System 1: When connected to a 3500 rack with System 1 Evolution software, the driver’s output feeds automated orbit plots, Bode diagrams, and waterfall spectra without additional transducers, reducing sensor count per measurement plane.
• Thermal Drift Compensation: The driver’s internal temperature-compensation circuit maintains sensitivity within ±1% across the full −40 °C to +85 °C operating range, preventing false alarms during cold-start or high-ambient-temperature operating conditions.
• Hazardous-Area Deployment: ATEX Ex ia IIC T6 Ga certification permits installation in Zone 1 gas atmospheres (e.g., hydrogen-cooled generators, LNG compressor trains) without additional explosion-proof enclosures around the probe assembly.
• Reduced Commissioning Time: Factory-matched calibration eliminates field calibration of the probe-cable-driver chain. Commissioning is reduced to gap-setting verification and a single-point output check against the monitor’s input range.
• Long-Term Signal Stability: The eddy-current principle is immune to contamination by oil mist, condensation, and particulate matter that would degrade optical or capacitive sensors in the same environment, supporting continuous operation between scheduled outages without sensor cleaning.

Quality Assurance & Global Logistics

Every Bently Nevada 330905-00-15-10-02-00 unit dispatched from our Xiamen, China facility passes a structured incoming-quality inspection protocol before it is allocated to any order. The inspection sequence covers visual and dimensional verification against OEM mechanical drawings, functional output measurement at −24 VDC supply voltage, sensitivity verification at 200 mV/mil ± 2% tolerance gate, and serialization with a traceability record retained for a minimum of five years.

Units are sourced exclusively from authorized Baker Hughes / Bently Nevada distribution channels and certified surplus inventories with documented chain of custody. No remanufactured or counterfeit components are accepted. Each shipment is accompanied by a Certificate of Conformance (CoC) and, upon request, original factory test reports and material traceability documentation at no additional charge.

Packaging follows OEM specifications: individual anti-static foam inserts, moisture-barrier poly bags, and rigid outer cartons rated for international air freight handling. For time-critical plant shutdowns, same-day dispatch on in-stock units is available with DHL Express, FedEx International Priority, or UPS Worldwide Express, achieving delivery to most industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas within 3 to 5 business days from Xiamen. For volume orders (5+ units) or project-based procurement, consolidated sea-air freight options are available with full customs documentation support including HS code classification, commercial invoice, and packing list.
