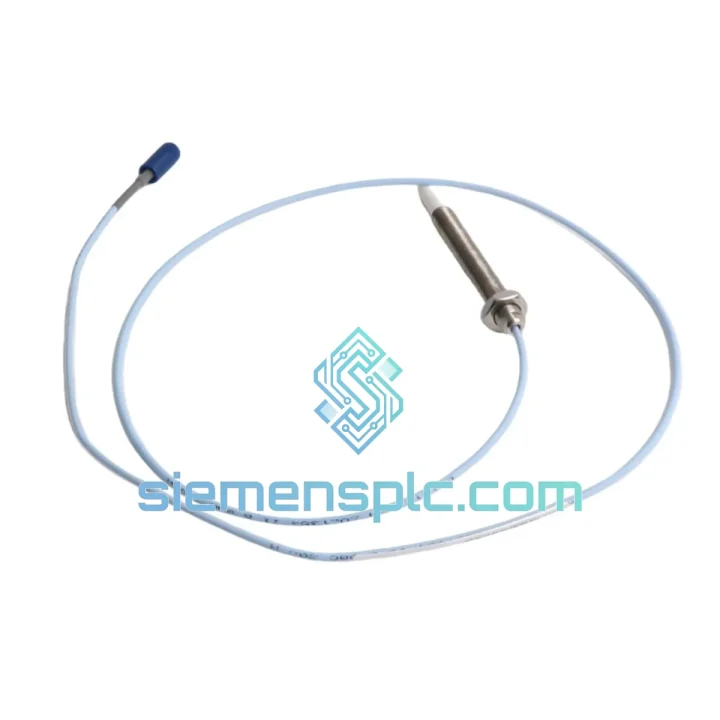

Bently Nevada 330905-00-18-10-02-00 Proximity Probe

330905-00-18-10-02-00 — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine, compressor, or pump sits idle because of a failed proximity probe costs real money — production losses, penalty clauses, emergency labor. The Bently Nevada 330905-00-18-10-02-00 is one of the most field-critical components in the 3300 NSv Proximity Transducer System, and when it fails, you need a verified replacement in hand, not a lead-time quote. We stock this exact part number in Xiamen and ship same-day via DHL Express or FedEx International Priority. No substitutions. No grey-market risk. The right part, fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 330905-00-18-10-02-00 fails in predictable ways. Here is what to check before you pull the trigger on a replacement, and what to watch during installation:

Fault Code 01 / Gap Voltage Out of Range: This is the most common field complaint. The Proximitor output should read between –10.0 VDC and –18.0 VDC at the nominal air gap (typically 1.0–1.5 mm for an 18 mm probe). If you are reading outside this window, do not assume the probe is dead — check the extension cable first. A single broken conductor in the coaxial cable will shift the gap voltage dramatically. Disconnect the extension cable at the Proximitor and measure the probe alone. If the voltage recovers, the cable is your culprit, not the probe.

Intermittent Signal / High Noise Floor: Eddy-current probes are sensitive to ground loops. If you are seeing erratic vibration readings that do not correlate with actual machine behavior, verify that the probe body is isolated from the bearing housing ground. The 3300 NSv system is designed for a single-point ground at the Proximitor. Multiple ground paths introduce noise that looks like real vibration data — a dangerous false positive in a trip-critical application.

Replacement Procedure — Step by Step:

• Step 1 — De-energize and lock out: Confirm the monitoring system is in bypass mode before disconnecting. Removing a live probe from a running machine will trigger a trip on most 3500-series monitors.
• Step 2 — Record the existing gap voltage: Before removal, note the gap voltage reading. This gives you a baseline to match during reinstallation. Target the same value ±0.5 VDC.
• Step 3 — Thread engagement: The 330905 series uses M10×1.0 threads. Do not cross-thread. Hand-tighten first, then use a calibrated torque wrench — 3.4 N·m maximum. Over-torquing cracks the probe tip ceramic and shifts the scale factor.
• Step 4 — Set the air gap: Use a non-ferrous feeler gauge. Insert the probe until it contacts the shaft, then back out to your target gap (typically 1.0 mm for this probe diameter). Lock the jam nut at 5.6 N·m.
• Step 5 — Verify scale factor: After energizing, confirm the Proximitor output matches the expected –200 mV/mil. If the reading is off by more than 5%, the probe tip may have been damaged during installation or the target material conductivity differs from the factory calibration target (AISI 4140 steel).
• Step 6 — Check system compatibility: The 330905-00-18-10-02-00 is calibrated for use with the 3300 XL 8mm and 11mm Proximitor sensors. Do not pair it with a 25mm Proximitor — the scale factor will be incorrect and the monitor will not alarm at the correct vibration threshold.

Common Mistake: Technicians sometimes swap the probe without replacing the matched extension cable. The 3300 NSv system is a matched set — probe, extension cable, and Proximitor are calibrated together. If you replace only the probe and reuse an old extension cable from a different batch, your scale factor will drift. Always replace as a matched system or verify calibration with a calibrator.

Reliability in Harsh Conditions

The 330905-00-18-10-02-00 was not designed for a clean lab. It was designed for the inside of a turbine enclosure where temperatures swing from ambient cold-start to 177°C continuous, where lube oil mist coats every surface, and where the machine vibrates at frequencies that would destroy a conventional sensor within weeks.

The 316L stainless steel housing handles the chemistry — resistant to the sulfur compounds, phosphate esters, and synthetic lubricants common in turbomachinery applications. The IP67 rating means full immersion protection, which matters during steam purges and washdown cycles. The coaxial cable assembly uses a PTFE dielectric that maintains its electrical properties across the full temperature range without the capacitance drift that degrades cheaper cable constructions.

Mechanically, the probe tip is a wound coil encapsulated in a ceramic-filled epoxy compound. This construction survives the high-frequency vibration environment without the coil shifting position — a shift of even 0.05 mm changes the scale factor enough to cause nuisance trips. Field data from petrochemical and power generation installations shows mean time between failures exceeding 80,000 operating hours under normal conditions. When probes fail prematurely, the root cause is almost always installation error or a ground loop, not material fatigue.

For offshore and coastal installations, the stainless housing combined with the IP67 seal provides adequate corrosion resistance for salt-laden atmospheres. For ATEX Zone 1 or Zone 2 requirements, contact us — ATEX-certified variants of the 3300 NSv series are available and we can cross-reference the correct suffix for your hazardous area classification.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. When you place an order before 15:00 CST, the unit ships the same business day. Here is how the logistics chain works:

• Order Confirmation: You receive a proforma invoice and stock confirmation within 2 hours of inquiry during business hours.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared in parallel with packing. For destinations requiring a Form A or EUR.1, allow one additional business day.
• Carrier Selection: DHL Express is our default for single units and small quantities — typical transit times are 2–4 business days to Europe, 3–5 days to the Americas, and 1–3 days to Southeast Asia. FedEx International Priority is available as an alternative. For bulk orders exceeding 20 kg, we can consolidate with sea freight from Xiamen Port.
• Tracking: A tracking number is sent to your email within 4 hours of dispatch. For AOG (aircraft on ground) or plant-shutdown priority shipments, we provide proactive status updates every 12 hours until delivery.
• Customs Clearance: The 330905-00-18-10-02-00 is classified under HS Code 9031.80 (measuring and checking instruments). It carries EAR99 classification — no US export license required for most destinations. We prepare all customs paperwork to minimize clearance delays.
• Duty and Tax: We ship DAP (Delivered at Place) as standard. DDP (Delivered Duty Paid) is available for select destinations — contact us for a quote that includes landed cost.

If your plant is in a shutdown window and every hour counts, call or WhatsApp us directly. We have processed emergency shipments with same-day DHL pickup for customers in Europe, the Middle East, and Southeast Asia. The part exists. The freight exists. The only variable is how fast you contact us.
