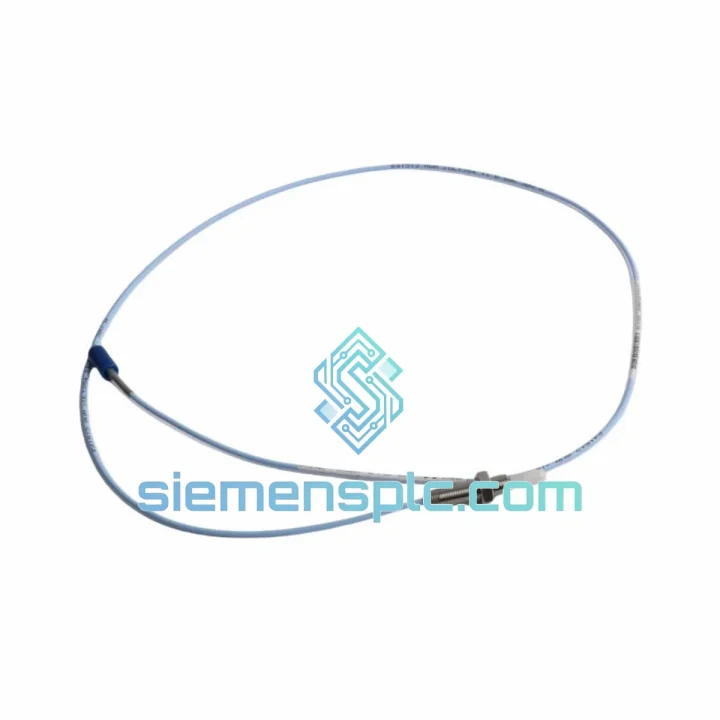

Bently Nevada 330906-02-12-70-02-05 Proximity Probe

330906-02-12-70-02-05 In Stock Now — Every Hour of Downtime Costs You Money

Your turbine tripped. The control room is red. Maintenance is standing by. The one component between you and full production restart is a Bently Nevada 330906-02-12-70-02-05 proximity probe — and you need it today, not in three weeks.

We stock the 330906-02-12-70-02-05 at our Xiamen warehouse. Same-day DHL/FedEx dispatch on confirmed orders before 15:00 CST. No broker markups, no grey-market risk — 100% original Bently Nevada 3300 XL Series, traceable to OEM documentation. While your competitors wait on lead times, your line is back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls teach you one thing: most 330906-02-12-70-02-05 failures are misdiagnosed. Before you condemn the probe, run through this checklist.

Common Fault Codes & Root Causes

• OK LED off / Not OK relay de-energized: First check gap voltage at the driver output. Should read −10 VDC ±0.5 V at nominal 1.0 mm gap. If you are reading −24 V or 0 V, the probe tip is either crashed into the shaft or the cable is open-circuit. Swap the extension cable before condemning the probe.
• 3500 monitor showing Danger with no process change: Classic symptom of a cracked probe tip or delaminated coil. Inspect the tip under magnification. Any visible crack means replace immediately. Do not attempt to re-gap — the calibration is void.
• Noisy signal / high 1X amplitude spike at all speeds: Check the target area for surface damage, rust pitting, or a keyway passing through the measurement zone. The 330906 is calibrated for AISI 4140 — non-standard target materials require a field recalibration.
• Intermittent OK/Not OK cycling: 90% of the time this is the coaxial connector at the driver end. Reseat and torque to 1.1 N·m. If the problem persists, the extension cable inner conductor is likely fatigued — common on machines with high vibration at the junction box.

Replacement Procedure — Critical Configuration Points

• Gap Setting: The 330906-02-12-70-02-05 requires a nominal gap of 1.0 mm (40 mil) for the 3300 XL 8mm driver. Set gap voltage to −10.0 VDC ±0.2 V measured at the driver output BNC. Do not use the old probe gap as a reference — probe-to-probe tip geometry varies.
• Matched Set Verification: The 3300 XL system is calibrated as a matched probe + extension cable + driver set. If you are replacing only the probe, verify the extension cable part number is 330130-080-00-00 or equivalent 3300 XL series. Mixing 3300 non-XL cables with XL probes produces a 15–20% sensitivity error — enough to trigger false alarms or miss real events.
• Driver Compatibility: Do NOT use a legacy 3300 non-XL driver with this probe. The impedance characteristics differ. The 330906 requires the 330180-X1-00 or equivalent 3300 XL 8mm driver. Check the driver label before installation.
• Polarity Check: The connector is reverse-polarity protected, but verify the center pin is intact before mating. A bent pin causes an intermittent open circuit that is nearly impossible to diagnose under vibration.
• Post-Installation Verification: After gapping, run the machine to operating speed and verify the 1X amplitude and phase match the historical baseline within ±10%. A significant deviation indicates a gapping error or target surface issue, not a faulty probe.

Reliability in Harsh Conditions

The 330906-02-12-70-02-05 is not a lab instrument — it lives inside bearing housings where temperatures swing from cold startup to 177 °C at the probe tip, where lube oil mist coats every surface, and where the machine own vibration tries to work every connection loose over 8,760 hours a year.

Bently Nevada engineered the 3300 XL probe body from 316 stainless steel with a hermetically sealed coil assembly. The cable jacket is rated for continuous immersion in turbine lube oil and resists the aromatic hydrocarbons found in most synthetic lubricants. The coaxial connector uses a gold-plated center pin and a PTFE dielectric that maintains impedance stability from −35 °C to the rated operating limit.

Vibration endurance testing per MIL-STD-810 confirms the probe assembly survives 20 g swept-sine excitation from 10 to 2,000 Hz — the kind of broadband excitation you see during a compressor surge event or a turbine blade loss. The extension cable armor braid is rated for 50,000 flex cycles at the minimum bend radius, which matters when the cable runs through a vibrating junction box.

In offshore and coastal installations, the stainless housing and sealed connector resist salt-fog corrosion per IEC 60068-2-52. ATEX and IECEx certifications cover Zone 1 and Zone 2 hazardous area installations — no additional barriers required for most gas-group IIA/IIB applications.

This probe is designed to outlast the maintenance interval. When it does fail, it fails clearly — not intermittently, not ambiguously. That predictability is what makes it the default choice for API 670 machinery protection systems worldwide.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for stocked items. Here is exactly what happens after you confirm your order:

• Order Confirmation (T+0): Payment confirmed or PO accepted — warehouse pick ticket generated within 30 minutes.
• Export Documentation (T+0 to T+2 hours): Commercial invoice, packing list, and HS code 9031.80 export declaration prepared. ATEX/IECEx certificates included in the shipment package on request.
• Carrier Handoff (T+3 to T+6 hours): DHL Express or FedEx International Priority collection from our facility. Tracking number issued to your email immediately upon scan.
• Transit Times (typical): Southeast Asia 1–2 days | Middle East / India 2–3 days | Europe 3–4 days | North America 3–5 days | South America / Africa 4–6 days.
• Customs Clearance: We pre-classify all shipments with the correct HS code and provide accurate declared values. Duties and import taxes are the buyer responsibility unless DDP terms are agreed in advance.
• Emergency Freight: For plant-down situations, we arrange next-flight-out courier from Xiamen Gaoqi International Airport. Contact WhatsApp for immediate coordination.

Every shipment is double-boxed with anti-static foam insert. The probe tip is protected by a machined plastic cap. No probe arrives with a damaged tip from transit — if it does, we replace it, no questions asked.
