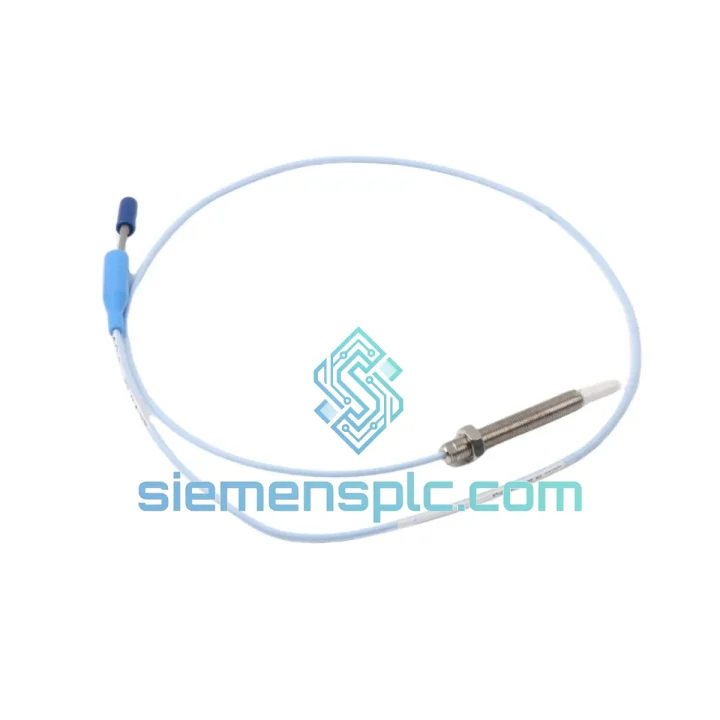

Bently Nevada 330908-00-90-05-02-05 Proximity Probe – 3300 NSv Series

Bently Nevada 330908-00-90-05-02-05 — 5 mm Eddy Current Proximity Probe for Turbomachinery Shaft Monitoring

The Bently Nevada 330908-00-90-05-02-05 is a factory-configured, non-contacting eddy current proximity probe within the 3300 NSv (Non-contacting Vibration) platform. It functions as the primary sensing element in API 670-compliant machinery protection loops, converting rotor-to-probe gap variations into a proportional DC voltage signal with a nominal scale factor of 7.87 V/mm (200 mV/mil). The probe is designed for continuous, unattended operation in rotating machinery — steam turbines, centrifugal compressors, axial fans, and pump trains — where shaft radial vibration, axial position, and differential expansion must be measured with sub-micron repeatability across the full machine operating envelope.

The part number encoding carries precise mechanical and electrical configuration data: the -90 segment specifies a 9.0 m (approximately 30 ft) integral probe cable, while the -05 segment designates the 5 mm probe tip diameter with M8 × 1.0 mounting thread. This configuration is the most widely deployed in the 3300 NSv family for journal bearing radial vibration applications, where the 5 mm tip geometry provides the optimal balance between spatial resolution and linear measurement range (0.25 mm to 2.54 mm gap).

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 330908-00-90-05-02-05 is grounded in Faraday’s law of electromagnetic induction. The probe tip houses a precision-wound coil driven by a high-frequency oscillator (typically 1.0 MHz carrier) embedded within the paired Proximitor® sensor. When the coil is energized, it projects an alternating electromagnetic field perpendicular to the probe face. As a conductive target (rotor shaft) enters this field, eddy currents are induced on the target surface, loading the oscillator circuit and causing a measurable change in coil impedance. This impedance shift is demodulated by the Proximitor® into a DC output voltage linearly proportional to the probe-to-target gap.

The 9.0 m integral cable is a critical design element. Unlike field-assembled probe-cable combinations, the factory-terminated coaxial assembly is impedance-matched and calibrated as a single unit. The cable’s characteristic impedance is controlled to ±1% tolerance, ensuring that the oscillator loading presented to the Proximitor® remains within the calibration envelope across the full cable length. Any field splice or substitution of a non-matched cable introduces a parasitic impedance discontinuity that shifts the scale factor and zero-gap voltage, invalidating the API 670 calibration record.

The 316L stainless steel housing provides corrosion resistance in H₂S-bearing gas streams, chloride-laden cooling water environments, and hydrocarbon condensate atmospheres — conditions common in upstream and midstream oil and gas installations. The M8 × 1.0 thread form is machined to ISO 965-1 tolerance class 6H, ensuring repeatable installation depth and gap setting without thread galling in stainless-to-stainless bracket interfaces. The IP67 rating of the probe body is achieved through a hermetic glass-to-metal seal at the coil-to-cable junction, preventing moisture ingress that would alter coil inductance and corrupt the measurement baseline.

EMC performance is addressed at the coil winding level. The probe coil is wound with a controlled pitch and shielded by the stainless housing, which acts as a Faraday cage for electric field interference. The coaxial cable geometry provides inherent common-mode rejection for magnetically induced noise. In high-EMI environments — adjacent to variable frequency drives, large motor starters, or bus duct installations — the system’s common-mode rejection ratio (CMRR) exceeds 60 dB at frequencies below 1 kHz, maintaining measurement integrity without additional shielding conduit.

System Integration Benefits

• API 670 Drop-in Compliance: The 330908-00-90-05-02-05 is factory-calibrated to API 670 Annex D requirements. It integrates directly into existing 3300 NSv protection loops without field recalibration, reducing commissioning time from hours to minutes on replacement projects.
• Deterministic Signal Latency: The eddy current measurement chain introduces less than 100 µs of signal latency from gap change to Proximitor® output update. This deterministic response ensures that the 3500 Series monitor’s trip relay activates within the protection system’s required response time budget, typically ≤ 20 ms for API 670 overspeed and high-vibration trips.
• Broad Frequency Coverage for Fault Discrimination: The DC–10,000 Hz bandwidth captures not only 1× and 2× running speed vibration components but also sub-synchronous instabilities (oil whirl at 0.43–0.48×), blade-pass frequencies, and gear mesh harmonics — enabling the System 1® software to perform multi-spectral fault discrimination without sensor substitution.
• Thermal Stability Across Process Extremes: Scale factor drift across the full –35 °C to +177 °C operating range is specified at ≤ ±1% of full scale. In cryogenic LNG compressor applications or high-temperature steam turbine bearing housings, this stability eliminates temperature-induced false alarms that would otherwise require seasonal recalibration.
• Plug-Compatible with Multiple Monitor Generations: The 3300 NSv probe interfaces with 3300 XL Proximitor® sensors, 3500/40M and 3500/42M monitor cards, and System 1® software without hardware adapters. This backward compatibility protects capital investment when upgrading monitor chassis while retaining field-installed probe infrastructure.
• Diagnostic Transparency via Gap Voltage Monitoring: The –2 V to –18 VDC output provides a continuous, readable gap voltage that operators can trend in System 1® to detect probe fouling, bracket loosening, or shaft surface degradation before these conditions affect vibration measurement accuracy. A gap voltage drifting outside the –10 V ± 2 V nominal operating center is a direct, unambiguous indicator of a mechanical or installation anomaly.
• Reduced Wiring Infrastructure: The 9.0 m integral cable eliminates one field junction point per probe channel compared to shorter probes requiring extension cables. In a 16-channel protection system, this removes 16 potential coaxial splice failure points, directly improving system MTBF and reducing periodic inspection scope.
• Hazardous Area Deployment Capability: ATEX certification (zone classification per configuration suffix) allows direct installation in Zone 1 and Zone 2 classified areas without intrinsic safety barriers or explosion-proof conduit seals at the probe body, simplifying installation design and reducing installed cost in offshore and refinery environments.

Quality Assurance & Global Logistics

Every unit of the 330908-00-90-05-02-05 supplied through siemensplc.com is sourced from verified industrial distribution channels with full traceability to Bently Nevada (Baker Hughes) manufacturing records. Pre-shipment verification includes visual inspection of the probe housing and coaxial connector for mechanical damage, cable continuity and insulation resistance measurement, and serial number cross-reference against OEM documentation. Original manufacturer labeling, date codes, and packaging are preserved intact where available. A Certificate of Conformance (CoC) is issued with each shipment upon request, documenting the inspection results and confirming part number authenticity.

Logistics operations are based in Xiamen, China, a major international freight hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and consolidated air freight services. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment. For shutdown-critical replacement orders, same-day dispatch is available for in-stock units confirmed before 14:00 CST. Typical transit times are 3–5 business days to Southeast Asia, 5–7 business days to the Middle East and Europe, and 5–8 business days to North America via express courier. Bulk orders and blanket purchase agreements are accommodated with scheduled release shipments and pre-positioned inventory arrangements.
