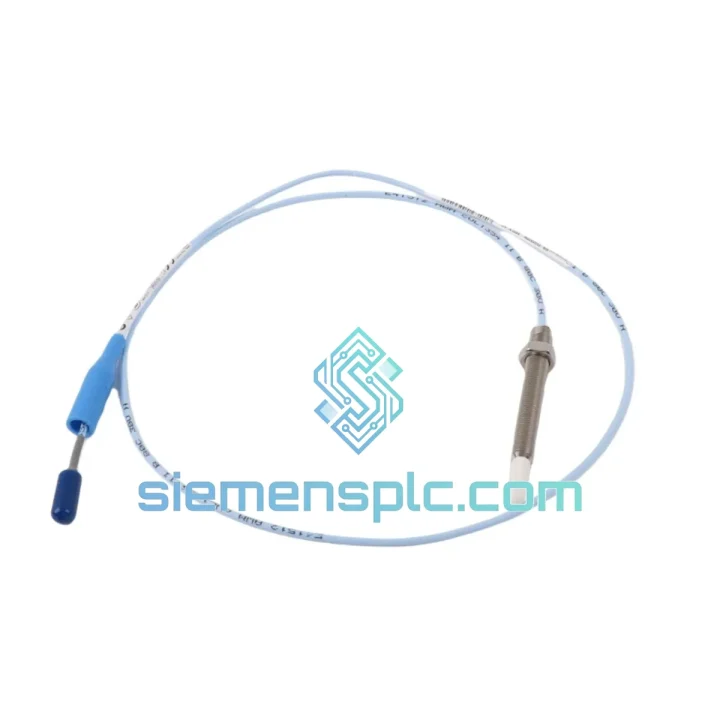

Bently Nevada 330908-00-90-10-02-00 Proximity Probe

330908-00-90-10-02-00 — Stop the Clock on Your Downtime. Ship Today.

Your turbine is tripped. Your compressor train is offline. Every minute the shaft sits idle, the losses compound — production shortfall, penalty clauses, maintenance crew standing by. You need the Bently Nevada 330908-00-90-10-02-00 proximity probe back in the measurement chain, calibrated and running, before the next shift. We stock it. We ship it today from Xiamen. That’s the only conversation that matters right now.

The 330908-00-90-10-02-00 is a 3300 NSv Series eddy current proximity probe — the front-line sensor in Bently Nevada’s most widely deployed machinery protection architecture. It feeds shaft displacement data directly into 3300 XL and 3500 Series monitors. When this probe fails or drifts out of calibration, your entire vibration protection loop goes blind. No alarm. No trip. No protection. That’s not a risk any reliability engineer can accept on a critical rotating asset.

We maintain physical stock of this part number specifically because it appears on emergency procurement lists across oil & gas, power generation, and petrochemical plants worldwide. Our team has processed same-day RFQs for this exact SKU for plants in Southeast Asia, the Middle East, and Europe. If you’re reading this page, you already know what you need. Let’s move.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 330908-00-90-10-02-00:

1. Gap Voltage Out of Range (most frequent call-out)
Normal operating gap voltage for 3300 NSv 8mm probes is –10.0 VDC ± 0.5 V at the recommended 1.0 mm air gap. If your 3500 monitor is throwing a Not OK (NOK) status with no mechanical change on the shaft, check gap voltage at the proximitor output first. A reading outside –9.5 to –10.5 VDC almost always points to probe tip damage, probe body contamination (oil fouling, metallic debris), or a cracked integral cable — not the proximitor itself. Swap the probe before condemning the driver.

2. Intermittent NOK / Spike Events
If the 3500 rack is logging intermittent NOK trips with no corresponding process upset, inspect the probe-to-extension cable junction. The BNC connection at the probe integral cable termination is the highest-vibration point in the measurement chain. Micro-fretting at this junction introduces impedance variation that the proximitor reads as gap change. Torque the connector to spec (finger-tight plus 1/4 turn) and apply thread-locking compound rated for the ambient temperature.

3. Replacement Procedure — Field Checklist

• De-energize the 3500 rack channel before disconnecting the probe. Hot-swapping without channel inhibit will trigger a false trip on the monitor.
• Match the replacement probe cable length to the existing extension cable. The 3300 NSv system is calibrated as a matched set — probe + extension cable + proximitor. Mismatched cable lengths shift the scale factor and introduce measurement error. The total system cable length (probe integral + extension) must match the proximitor’s calibrated range.
• Set the air gap to 1.0 mm ± 0.05 mm using a feeler gauge or gap voltage measurement. Target –10.0 VDC at the proximitor output terminal.
• After installation, perform a static calibration check: rotate the shaft by hand and verify the vibration channel reads near zero with no runout spikes exceeding the machine’s acceptance criteria.
• Re-enable the channel in the 3500 rack and confirm OK status before returning the machine to service.
• Log the replacement in your CMMS with the new probe serial number and installation gap voltage for future reference.

4. Target Material Verification
The 330908-00-90-10-02-00 is factory-calibrated for steel targets. If your shaft journal is Inconel, titanium, or any non-ferrous alloy, the scale factor will be off by up to 8%. Bently Nevada publishes correction factors for common target materials — apply them or request a material-specific calibration from the factory before commissioning.

Reliability in Harsh Conditions

The 3300 NSv probe series was not designed for a clean lab environment. It was designed for the conditions you actually work in — and the 330908-00-90-10-02-00 reflects that engineering philosophy throughout its construction.

The probe body is machined from 316 stainless steel, providing resistance to the hydrocarbon condensates, lube oil mist, and process gas atmospheres common in compressor and turbine bearing housings. The integral cable uses a PTFE-insulated, armored construction that resists both chemical attack and the mechanical abrasion that occurs when cables are routed through tight conduit runs in high-vibration environments.

Thermal performance is a genuine differentiator. The probe tip is rated to +177°C continuous — sufficient for most steam turbine bearing housings and gas turbine exhaust-end applications where ambient temperatures routinely exceed what standard industrial sensors can tolerate. The epoxy encapsulant used in the probe body is formulated to resist thermal cycling without delamination, which is the primary failure mode for proximity probes in applications with frequent start-stop cycles.

Vibration immunity is built into the mechanical design. The probe body thread engagement and locknut arrangement is engineered to maintain the set air gap under continuous broadband vibration up to the levels specified in API 670. In practice, this means the probe stays in calibration even when the machine it’s monitoring is running rough — exactly when accurate data matters most.

Moisture ingress protection is achieved through the sealed probe body construction and the armored cable jacket. In outdoor installations or humid tropical environments, the probe assembly maintains measurement integrity without additional weatherproofing beyond standard conduit sealing at the junction box entry point.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-efficient export hubs in Asia, with direct access to DHL, FedEx, and UPS international express networks operating daily flights to major industrial hubs worldwide.

Standard express timeline from order confirmation:

• Order confirmed before 14:00 CST: Same-day dispatch from Xiamen warehouse
• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days door-to-door via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express

Every shipment includes a complete export documentation package: commercial invoice, packing list, certificate of origin, and material safety data sheet where applicable. For projects requiring additional documentation — ECA certificates, Form E (ASEAN FTA), or third-party inspection reports — our logistics team can arrange these with 24–48 hours advance notice.

All units are packed in anti-static foam-lined boxes with moisture-barrier inner packaging. The probe tip is protected with a machined plastic cap during transit. For multi-unit orders, individual units are packed separately to prevent contact damage during air freight handling.

We provide a tracking number within 2 hours of dispatch. For urgent shipments, our logistics coordinator can provide direct carrier contact details and proactive status updates at each transit hub.
