Bently Nevada 330910-00-02-10-02-00: Eddy-Current Displacement Sensing in API 670-Compliant Turbomachinery Protection

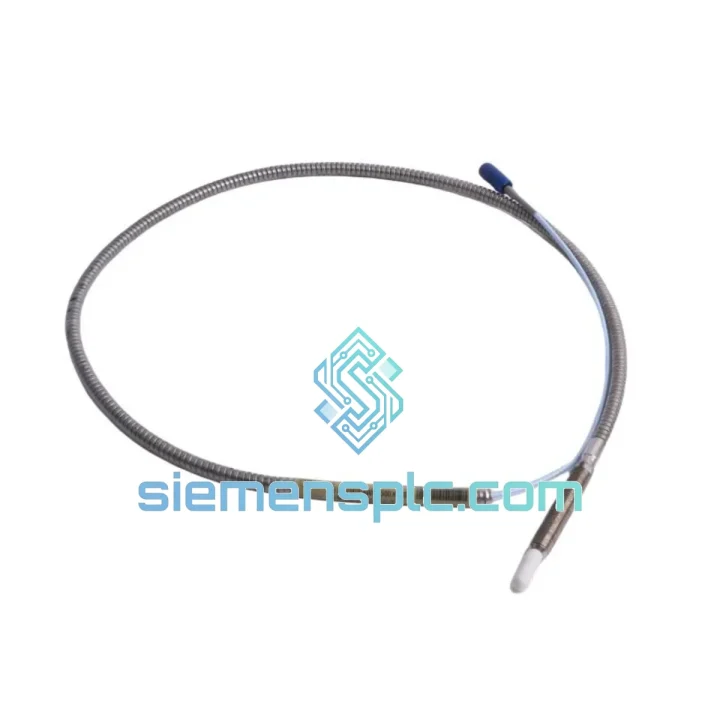

The 330910-00-02-10-02-00 is a non-contacting eddy-current proximity probe belonging to the Bently Nevada 3300 NSv system — a platform engineered specifically for continuous shaft displacement and radial vibration measurement on critical rotating machinery. Unlike general-purpose inductive sensors, this probe operates as a calibrated transducer within a three-component system: probe body, extension cable, and proximitor driver. The output is a DC-biased voltage signal proportional to the gap between the probe tip and the conductive target surface, with a nominal sensitivity of 7.87 V/mm (200 mV/mil) across the linear measurement range.

In a typical turbomachinery protection loop, the 330910-00-02-10-02-00 is mounted radially in a bearing housing bracket, positioned 90° from a second probe to form an X-Y measurement plane. The two-probe configuration allows the monitoring system — typically a Bently Nevada 3500 rack — to reconstruct the shaft orbit, detect sub-synchronous instability, and trigger protective trips before bearing clearance limits are exceeded. The probe’s eddy-current field penetrates the shaft surface to a depth of approximately 0.3 mm, making surface finish and material conductivity critical installation parameters. Target materials must be ferromagnetic or non-ferromagnetic conductive metals; the probe is factory-calibrated for AISI 4140 steel.

The NSv designation carries specific engineering significance. “N” confirms non-contacting operation. “S” indicates seismic qualification per IEEE Std 344, which requires the probe assembly to maintain measurement accuracy during and after a defined seismic event — a mandatory requirement for safety-related instrumentation in nuclear power plant auxiliary systems. “v” denotes the vibration measurement function. This qualification distinguishes the 3300 NSv from standard 3300 XL probes and restricts its application to environments where seismic documentation is required by regulatory authority.

The probe body is constructed from 316 stainless steel with a PEEK (polyether ether ketone) tip housing, providing chemical resistance to hydrocarbon process fluids, H₂S environments, and steam condensate. The integral cable is terminated with a standard BNC connector for connection to the 3300 XL extension cable. The overall probe-cable-driver system is designed to maintain a combined system sensitivity within ±1% of nominal across the operating temperature range of −35°C to +177°C, ensuring measurement traceability without field recalibration under normal service conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The eddy-current sensing mechanism in the 330910-00-02-10-02-00 relies on the interaction between a high-frequency oscillating magnetic field — generated by the LC tank circuit within the proximitor driver — and the conductive target surface. As the probe tip approaches the shaft, eddy currents induced in the target surface load the oscillator circuit, reducing its amplitude. The proximitor demodulates this amplitude variation into a proportional DC voltage output. The probe coil itself is a passive element; all active signal conditioning resides in the 3300 XL Proximitor, which means the probe body contains no electronics susceptible to thermal degradation or radiation damage — a key design advantage in nuclear and high-temperature applications.

The PEEK tip housing provides electrical isolation between the probe coil and the stainless steel body, preventing ground loops that would introduce 50/60 Hz noise into the measurement signal. The coil winding geometry is optimized for an 8 mm tip diameter, which defines the effective sensing field diameter at approximately 2× the tip diameter — roughly 16 mm. This field geometry determines the minimum shaft diameter for accurate measurement (typically ≥25 mm) and the sensitivity to surface irregularities such as keyways, scratches, or residual magnetism.

EMC performance is achieved through the shielded coaxial construction of the integral cable, which maintains signal integrity against radiated interference from variable-frequency drives, high-current bus bars, and RF sources common in industrial machine rooms. The BNC connector provides a defined 50 Ω impedance interface, and the extension cable maintains this impedance continuity to the proximitor input. Ground reference is established at the proximitor chassis, with the probe body floating relative to the machine frame — a configuration that eliminates common-mode noise injection from machine ground currents.

The seismic qualification per IEEE 344 requires the probe-cable assembly to survive a defined response spectrum without loss of measurement function. The 3300 NSv qualification envelope covers both operating basis earthquake (OBE) and safe shutdown earthquake (SSE) conditions, with post-seismic functional verification confirming sensitivity remains within ±2% of pre-test values. This qualification is documented in a test report traceable to the specific probe design revision, which must be verified against the installed part number suffix to confirm applicability.

System Integration Benefits

• Direct API 670 Compliance: The 330910-00-02-10-02-00 satisfies API 670 5th Edition requirements for proximity probe systems without additional field calibration, reducing commissioning time on new machinery protection installations.
• Deterministic Signal Latency: The passive probe design introduces zero processing delay; signal propagation from shaft displacement to proximitor output is governed only by the LC oscillator frequency (typically 1 MHz), enabling the 3500 rack to execute protective trips within its specified 20 ms response time.
• Shaft Orbit Reconstruction: Paired X-Y installation with a second 330910-series probe provides the 3500 rack with sufficient data to compute full shaft orbit plots, enabling differentiation between unbalance, misalignment, oil whirl, and rub — diagnostic information unavailable from single-axis measurement.
• Backward Compatibility with 3300 XL Infrastructure: The probe interfaces directly with existing 3300 XL extension cables and proximitors, allowing replacement of older 3300 series probes without rewiring or driver substitution — a significant advantage during planned maintenance outages.
• Hazardous Area Suitability: The probe assembly carries appropriate hazardous location certifications for use in Zone 1/Zone 2 (ATEX) and Class I Division 1/2 (NEC) environments, covering the majority of oil and gas and petrochemical installation requirements.
• Thermal Stability Across Process Extremes: The −35°C to +177°C operating range accommodates both cryogenic LNG service and high-temperature steam turbine bearing housings without sensitivity drift requiring field correction.
• Diagnostic Transparency via System 1: When integrated with Bently Nevada System 1 software, the probe’s continuous output enables trend analysis, alarm setpoint management, and historical waveform storage — providing maintenance teams with documented evidence of machinery condition changes over time.
• Reduced Mechanical Intrusion: Non-contacting measurement eliminates the need for shaft-mounted transducer hardware, reducing rotating assembly imbalance risk and removing a potential failure mode associated with contact-type sensors in high-speed applications above 3,600 RPM.
• Seismic Documentation Chain: The NSv qualification provides a complete IEEE 344 test report chain, satisfying nuclear regulatory authority documentation requirements without additional site-specific testing.
• Standardized Spare Parts Management: The 330910-00-02-10-02-00 part number structure encodes probe length, cable length, and connector configuration, enabling maintenance planners to specify exact replacements without ambiguity across multi-unit plant installations.
