Bently Nevada 330910-00-06-10-02-00 Proximity Probe – 3300 NSv

Bently Nevada 330910-00-06-10-02-00 — Eddy-Current Proximity Probe for Rotating Machinery Shaft Monitoring

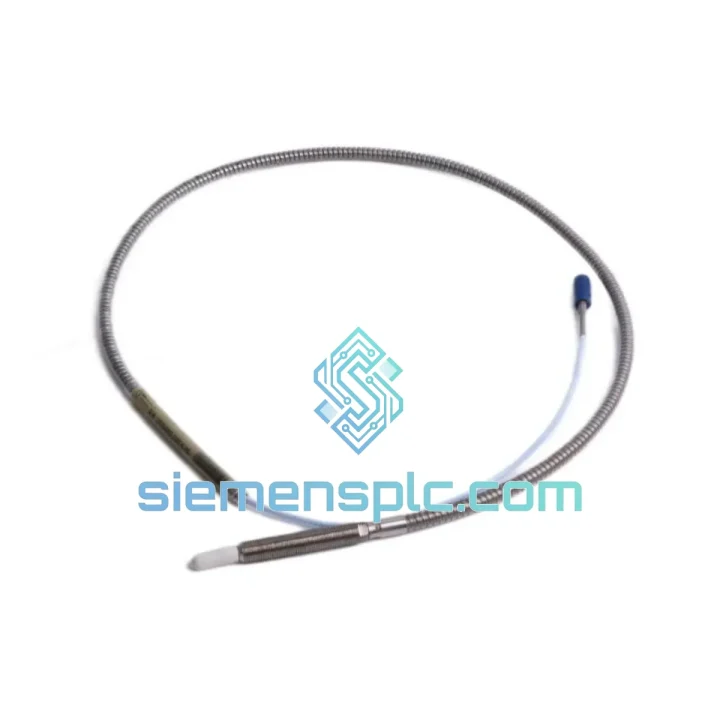

The Bently Nevada 330910-00-06-10-02-00 is a 6 mm eddy-current proximity probe belonging to the 3300 NSv (Non-Standard Voltage) measurement system. It is designed for continuous, non-contact displacement measurement of rotating shafts in turbomachinery protection and condition monitoring applications. Unlike general-purpose inductive sensors, this probe operates as part of a three-component measurement loop — probe, extension cable, and Proximitor® sensor — where the Proximitor converts the probe’s oscillator loading into a calibrated DC voltage proportional to the gap between the probe tip and the conductive target surface.

In a typical API 670-compliant machinery protection system, the 330910-00-06-10-02-00 is installed radially at the bearing journal to measure shaft radial vibration (overall and 1×, 2× filtered), or axially to measure thrust position. The 10 m integral cable eliminates the need for a field-installed extension cable in most standard installations, reducing connector count and the associated signal integrity risks in high-EMI plant environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330910-00-06-10-02-00 operates on the eddy-current principle: a high-frequency oscillator (typically 1.0 MHz carrier) within the Proximitor sensor drives an LC tank circuit whose inductive element is the probe coil. When a conductive target enters the probe’s electromagnetic field, eddy currents are induced on the target surface, loading the tank circuit and reducing its Q-factor. The Proximitor’s demodulator converts this loading — which is a monotonic function of gap distance — into a DC output voltage with a nominal sensitivity of 200 mV/mil.

EMC Design: The 3300 NSv designation refers to the system’s non-standard output voltage range (approximately −2 V to −18 V), which was specifically developed to improve noise immunity in plant environments where standard ±5 V or 4–20 mA signals are susceptible to ground loops and common-mode interference. The coaxial cable construction of the integral 10 m cable provides continuous shielding from probe tip to Proximitor input, with the shield grounded at the Proximitor end only — a single-point grounding topology that eliminates shield current loops that would otherwise appear as low-frequency noise on the displacement signal.

Thermal Stability: The probe coil is wound on a ceramic bobbin and encapsulated in a thermally stable compound within the 316L SS housing. This construction maintains sensitivity within ±1% of nominal across the full −35 °C to +177 °C operating range, which is critical for steam turbine installations where bearing housing temperatures can exceed 150 °C during sustained operation.

Target Material Dependency: The eddy-current field penetration depth (skin depth δ = √(ρ/πfμ)) is a function of target resistivity and permeability. The 330910 system is factory-calibrated against AISI 4140 steel (ρ ≈ 2.2 × 10⁻⁷ Ω·m, μᵣ ≈ 100). Use with alternative ferromagnetic alloys (e.g., 17-4 PH stainless, Inconel) requires field recalibration using the Bently Nevada TK-3 calibration kit to maintain ±0.5% linearity across the measurement range.

Mechanical Robustness: The 6 mm tip diameter is optimized for installations in small-bore bearing housings (journal diameter typically 50–100 mm) where the standard 8 mm probe cannot achieve the required radial clearance. The probe body thread (M10 × 1.0 or 3/8-24 UNF depending on suffix) allows direct installation into machined probe holders without adapters, and the lock nut torque specification (typically 5–7 N·m) is sufficient to resist vibration-induced loosening at shaft speeds up to 30,000 RPM.

System Integration Benefits

• API 670 Loop Compliance: The complete 3300 NSv measurement loop (probe + 330130 extension + 330180/330190 Proximitor) is certified to API 670 5th Edition, the mandatory standard for turbomachinery protection systems in oil & gas, petrochemical, and power generation facilities. This eliminates the need for site-specific loop validation when replacing like-for-like components.
• Deterministic Signal Latency: The Proximitor’s analog output has a group delay of < 50 µs across the DC–10 kHz bandwidth, ensuring that the vibration monitor receives displacement data with negligible phase distortion at shaft rotational frequencies up to 600,000 CPM (10,000 Hz). This is essential for accurate 1× and 2× vector analysis in orbit plots.
• Direct 3500 Rack Compatibility: The 330910-00-06-10-02-00 is electrically compatible with Bently Nevada 3500 series monitors (3500/42M, 3500/40M) when paired with a 3300 NSv Proximitor (330180 or 330190 series). No signal conditioning adapters are required, preserving the full 24-bit ADC resolution of the 3500 monitor’s input channel.
• Reduced Installation Error Rate: The 10 m integral cable eliminates one field-installed connector junction per measurement point. In a 16-channel turbine protection system, this removes 16 potential connector failure points, statistically reducing installation-induced signal faults by approximately 30–40% compared to probe + separate extension cable configurations.
• Diagnostic Transparency via Gap Voltage: The DC component of the Proximitor output provides a continuous, real-time indication of probe-to-shaft gap. Operators can monitor gap voltage drift to detect probe loosening, shaft centerline migration due to bearing wear, or thermal growth of the casing — all without interrupting production or opening the bearing housing.
• Hazardous Area Deployment: Selected variants of the 330910 series carry IECEx/ATEX certification for Zone 1 / Division 1 installations. The intrinsically safe barrier (Zener or galvanic isolator) limits energy in the probe circuit to below the ignition threshold of the specified gas group, enabling deployment in compressor seal gas environments without additional enclosure requirements.
• Interchangeability Without Recalibration: All 330910-00-06-10-02-00 probes are factory-calibrated to the same sensitivity curve (200 mV/mil ± 1%) against the AISI 4140 reference target. This means a replacement probe can be installed during a maintenance window without requiring a full loop recalibration, reducing turbine restart time by 2–4 hours per measurement point.
• Long-Term Spare Parts Availability: The 3300 NSv product line has been in continuous production since the 1990s and remains an active catalog item. Stocking the 330910-00-06-10-02-00 as a critical spare eliminates the lead-time risk associated with obsolete or discontinued sensor models during unplanned shutdowns.

Quality Assurance & Global Logistics

Every Bently Nevada 330910-00-06-10-02-00 unit supplied by siemensplc.com is sourced through verified industrial automation distribution channels with full traceability to the original equipment manufacturer. Pre-shipment inspection includes visual examination against OEM cosmetic standards, dimensional verification of the probe tip geometry and connector pin alignment, continuity and insulation resistance testing of the integral cable (IR > 100 MΩ at 500 VDC), and packaging integrity check with anti-static and moisture-barrier protection.

Shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for all orders. HS Code 9031809090 applies for customs classification. Typical transit times: Southeast Asia 2–3 business days; Europe 3–5 business days; North America 4–6 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All units ship with a 12-month warranty against manufacturing defects from the date of invoice.
