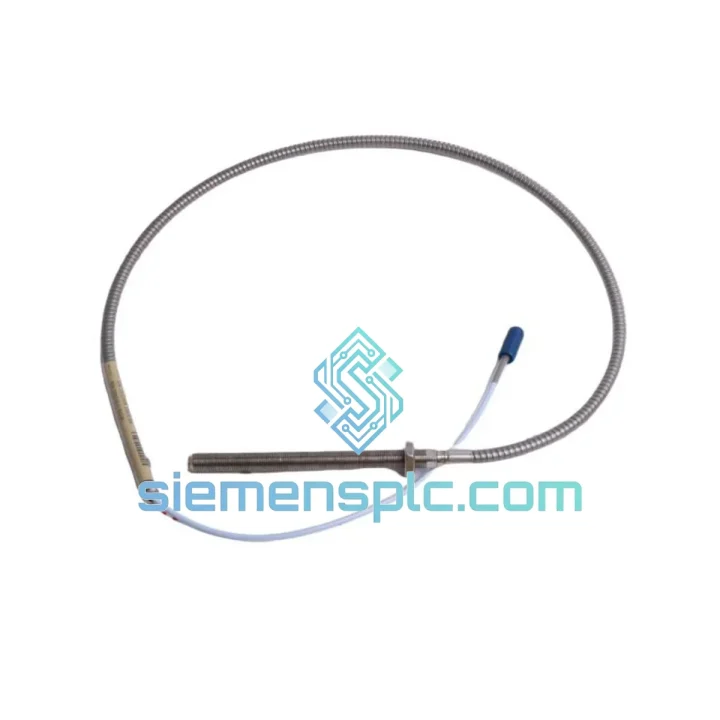

The Bently Nevada 330910-00-07-10-02-05 is a 5 mm eddy-current non-contact proximity probe belonging to the 3300 NSv (Non-contact Sensor) Series, manufactured by Bently Nevada — a Baker Hughes company and the global benchmark for machinery protection instrumentation. This probe is engineered for continuous, real-time measurement of shaft radial vibration, axial position, and eccentricity in turbomachinery and other critical rotating equipment operating under API 670 machinery protection requirements.

Within a complete 3300 NSv probe system, the 330910-00-07-10-02-05 functions as the primary sensing element. It operates on the eddy-current principle: a high-frequency oscillating magnetic field generated at the probe tip induces eddy currents in the conductive target (shaft), and the resulting impedance change is converted by the paired Proximitor® sensor into a DC voltage proportional to the gap distance. The output range of –2 VDC to –18 VDC corresponds to a linear measurement span of 80 mil (2.03 mm), with a nominal sensitivity of 200 mV/mil (7.87 V/mm) — a figure that remains stable across the full operating temperature envelope of –35 °C to +177 °C.

The probe body is threaded 10-32 UNF, allowing precise axial positioning within the probe holder during installation. The 7 ft (2.13 m) integral armored cable terminates in a standard connector compatible with the 330130-Series extension cables, enabling system configurations from 5 m to 9 m total probe-to-Proximitor distance without signal degradation. The 5 mm tip diameter is optimized for shaft target diameters commonly encountered in steam turbines, gas turbines, centrifugal compressors, and high-speed pumps.

This part number encodes a specific configuration: 7 ft cable, 10-32 UNF thread, 5 mm tip, standard temperature rating, and a defined connector type — making it a direct, drop-in replacement for existing 3300 NSv installations without recalibration of the Proximitor sensor, provided the same extension cable length is maintained. Procurement engineers and reliability teams can specify this part number with confidence in dimensional and electrical interchangeability.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330910-00-07-10-02-05 probe operates as the passive impedance element in a three-component measurement chain: probe → extension cable → Proximitor sensor. Understanding the hardware logic at each stage is essential for correct system commissioning and fault isolation.

Eddy-Current Field Geometry: The 5 mm tip diameter defines the effective sensing field diameter, which is approximately 2× the tip diameter (≈10 mm). This field geometry determines the minimum acceptable shaft diameter and the maximum permissible lateral misalignment between probe axis and shaft centerline. For shafts below 50 mm diameter, the curved target surface introduces a measurable scale factor error that must be corrected via the Proximitor’s calibration curve — a factor often overlooked during replacement procurement.

Cable Impedance and System Matching: The integral 7 ft cable is electrically matched to the 330130-Series extension cable and the 3300 XL 8mm Proximitor (330180 Series). The total cable system impedance is a tuned parameter: substituting non-OEM cables or mismatching lengths shifts the resonant frequency of the oscillator circuit within the Proximitor, degrading sensitivity linearity by up to 3–5% and potentially triggering false OK/Not-OK relay transitions in the 3500 monitor. The 330910-00-07-10-02-05 integral cable length of 7 ft is therefore a system-level specification, not merely a mechanical convenience.

EMC Design: The probe body and cable assembly incorporate a continuous coaxial shield grounded at the Proximitor end only (single-point grounding). This topology eliminates ground-loop currents that would otherwise appear as low-frequency noise on the DC output — a critical design requirement in environments with high-power motor drives, variable-frequency drives (VFDs), or large transformer installations where common-mode interference can exceed 50 mV peak-to-peak. The armored outer jacket provides additional mechanical protection against abrasion and fluid ingress in wet or oil-mist environments.

Temperature Stability: The probe’s ferrite core and coil assembly are selected for low thermal coefficient of inductance. Over the –35 °C to +177 °C range, sensitivity drift is maintained within the API 670 allowable band, eliminating the need for temperature compensation in the Proximitor for standard steel targets. This is particularly relevant for hot-section turbine applications where bearing housing temperatures routinely exceed 120 °C during steady-state operation.

Fault Detection Architecture: When the probe tip is open-circuit (cable break) or short-circuit (probe body damage), the Proximitor output drives to its supply rail (approximately –24 VDC) or to 0 VDC respectively — both conditions outside the –2 V to –18 V valid output window. The 3500 monitor’s OK circuit detects this excursion within one monitor update cycle (typically 20 ms), asserting a NOT OK status and triggering the appropriate relay output. This deterministic fault propagation path is a deliberate hardware design feature, not a software alarm — it ensures machinery protection response is independent of firmware state.

System Integration Benefits

• Direct API 670 Compliance: The probe meets API 670 5th Edition transducer performance requirements out of the box, eliminating the need for site-level calibration verification prior to commissioning in regulated facilities.
• Zero-Recalibration Replacement: As a like-for-like replacement within an existing 3300 NSv system (same cable length, same target material), no Proximitor recalibration is required — reducing planned maintenance downtime to the physical swap time only.
• Deterministic Latency: The analog output architecture delivers gap measurement updates at the Proximitor’s carrier frequency (typically 1 MHz oscillator), with no digital processing latency. The 3500 monitor samples this output at its configured update rate (typically 20 ms), providing deterministic vibration data for time-critical trip logic.
• Diagnostic Transparency: The NOT OK circuit provides unambiguous hardware-level fault indication for open-circuit and short-circuit probe failures, distinguishing transducer faults from process vibration events without requiring software diagnostics.
• Wide Environmental Tolerance: The –35 °C to +177 °C operating range covers both cold-start conditions in outdoor installations and sustained high-temperature operation in hot-section turbine bearing housings, without derating sensitivity.
• Compatibility with 3500 Machinery Protection System: The probe integrates directly with the Bently Nevada 3500/40M Proximitor/Seismic Monitor, 3500/42M Proximitor/Seismic Monitor, and the full 3500 rack architecture, supporting both radial vibration and axial position channel configurations.
• Scalable System Architecture: The 3300 NSv probe system supports extension cable lengths of 5 m and 9 m (330130 Series), allowing probe placement up to approximately 11 m from the Proximitor without signal conditioning changes — accommodating large turbine pedestals and remote bearing housings.
• Reduced Spare Parts Complexity: The standardized 10-32 UNF thread and 5 mm tip geometry are shared across multiple 330910-Series part numbers, allowing a single probe holder design to accommodate the full range of cable length variants — simplifying spare parts inventory management for multi-unit installations.
