Bently Nevada 330910-00-12-10-02-05 Proximity Probe – 3300 XL Series

Bently Nevada 330910-00-12-10-02-05 NSv Proximity Probe — Shaft Vibration Measurement in Rotating Machinery Protection Systems

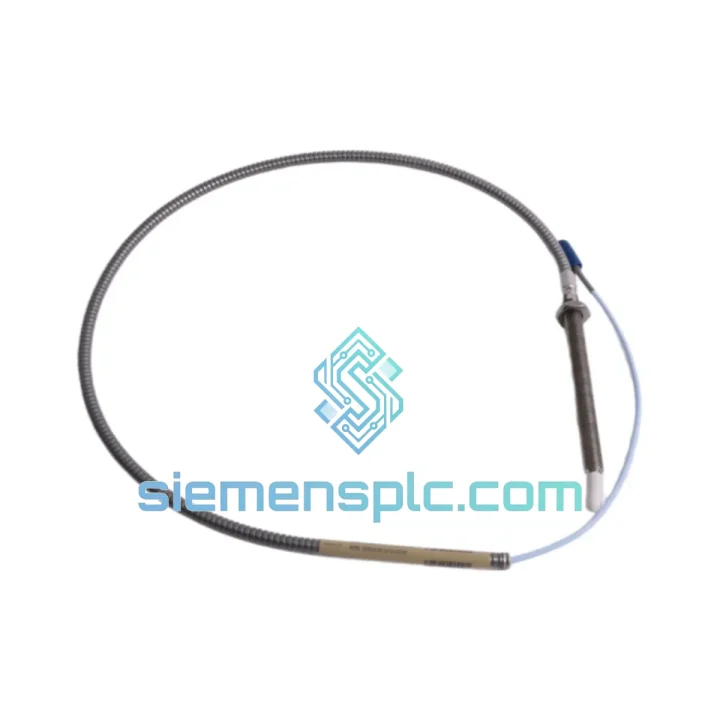

The Bently Nevada 330910-00-12-10-02-05 is a non-contacting proximity transducer manufactured under the 3300 XL NSv (Non-contacting Vibration) platform. It is designed for continuous, real-time measurement of radial shaft vibration, axial position, and differential expansion in turbomachinery and other rotating equipment subject to API 670 machinery protection requirements.

The probe operates on the eddy-current principle: a high-frequency oscillator drives a coil embedded in the probe tip, generating an electromagnetic field. When a conductive target surface — typically a shaft journal — enters this field, eddy currents are induced, loading the oscillator circuit. The resulting change in oscillator amplitude is demodulated by the paired driver/extension cable system into a DC voltage proportional to the gap distance. The NSv variant introduces a second-generation signal conditioning architecture that substantially reduces sensitivity to target material conductivity variation and magnetic permeability shifts, a persistent source of measurement error in standard eddy-current systems operating on alloy steel shafts.

This specific configuration — 12 mm sensing range, 5 m integral cable, M10×1 thread, standard tip geometry — is the most widely deployed variant in the 3300 XL NSv family and serves as the direct replacement for legacy 3300 XL 8 mm probe installations where extended gap range is required.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330910-00-12-10-02-05 probe body houses a precision-wound sensing coil potted in a thermally stable epoxy compound rated to 177 °C continuous. The coil geometry is optimized for the 10 mm tip diameter to achieve a field penetration depth consistent with the 12 mm linear range specification, while maintaining a tight linearity tolerance of ±0.5% full scale across the calibrated gap range.

NSv Signal Conditioning Architecture: Unlike first-generation 3300 XL probes that rely on a single-frequency oscillator, the NSv platform employs a dual-frequency excitation scheme. The primary frequency drives the gap measurement loop; a secondary reference frequency monitors target material response in real time. The driver module computes a correction factor from the ratio of the two responses, compensating for conductivity and permeability deviations in the shaft material. This is particularly significant in applications where shafts are fabricated from 4140 or 4340 alloy steel, materials with magnetic permeability that varies with temperature and stress state — conditions that introduce systematic offset errors of up to 15% in uncorrected eddy-current systems.

EMC Design: The armored integral cable provides continuous 360° shield coverage from the probe tip to the connector, with shield termination at the driver end only (single-point grounding). This topology eliminates ground loop currents that would otherwise appear as low-frequency noise on the output signal. The cable armor is rated for mechanical protection against oil, coolant, and abrasion in turbine enclosure environments. Ferrite beads are integrated at the cable-to-probe junction to suppress high-frequency common-mode interference from adjacent VFD cabling or ignition systems.

Mechanical Mounting Integrity: The M10×1 thread with 316 SS housing provides corrosion resistance in steam and hydrocarbon environments. The probe tip is recessed within the housing nose to protect the sensing coil from direct contact during installation. A locknut and jam nut arrangement (supplied separately) allows precise gap setting and mechanical retention under vibration loads up to 50 g broadband.

System Integration Benefits

• Direct 3500 Series Monitor Compatibility: The 330910 probe is calibrated for use with the Bently Nevada 3300 XL 8 mm driver and 3500 series monitor cards. No recalibration or scaling adjustment is required when replacing a like-configured probe in an existing installation, preserving alarm and trip setpoints.
• Deterministic Real-Time Response: The DC-to-10 kHz flat frequency response ensures that sub-synchronous, synchronous, and super-synchronous vibration components — including blade-pass frequencies in multi-stage compressors — are captured without phase distortion or amplitude roll-off within the measurement bandwidth.
• Diagnostic Transparency via Gap Voltage: The –2 V to –18 V output range provides a direct, continuously observable DC gap voltage that maintenance engineers can monitor with a standard voltmeter. Deviations from the nominal –10 V (mid-gap) setpoint indicate bearing wear, shaft bow, or probe mounting shift without requiring specialized diagnostic tools.
• Reduced Sensitivity to Shaft Runout Compensation Errors: The NSv material compensation reduces the electrical runout component in the raw vibration signal, improving the accuracy of 1× synchronous runout subtraction in the monitor and yielding cleaner filtered vibration trend data for condition monitoring databases.
• Hazardous Area Deployment: When paired with the Bently Nevada 3300 XL Zener Barrier, the system meets intrinsic safety requirements for Zone 1/Division 1 installations. The probe itself carries no active electronics, simplifying ATEX/IECEx entity parameter calculations.
• Long-Term Calibration Stability: The potted coil assembly and thermally stable housing maintain sensitivity within ±1% of nominal across the full operating temperature range, reducing the frequency of in-situ calibration checks required by API 670 Section 9 maintenance schedules.
• Plug-Compatible Replacement: The 330910-00-12-10-02-05 is dimensionally and electrically interchangeable with the earlier 330905 series probes in the same thread and cable length configuration, enabling fleet-wide standardization without bracket or conduit modifications.
• Integrated System BOM Simplification: A single probe part number covers both radial vibration and axial position measurement applications (with appropriate driver selection), reducing the number of distinct spare part SKUs that a maintenance storeroom must carry for a multi-train turbomachinery installation.

Quality Assurance & Global Logistics

Every Bently Nevada 330910-00-12-10-02-05 unit dispatched from our Xiamen, China facility is sourced through verified industrial supply channels with full lot traceability. Units are inspected against OEM dimensional and labeling references prior to packaging. Functional bench verification of output linearity within the specified gap range is performed before dispatch. Lot documentation and test records are available upon request.

Shipments originate from Xiamen, China with access to major international freight forwarders and express carriers (DHL, FedEx, UPS). Standard in-stock lead time is 1–3 business days. DDP (Delivered Duty Paid), FOB Xiamen, and EXW terms are available. Export documentation — commercial invoice, packing list, certificate of origin — is provided with every shipment. HS Code: 9026.80.

All products carry a 12-month warranty from the date of shipment covering manufacturing defects. Warranty claims are processed with replacement dispatch within 5 business days of confirmed fault verification.
