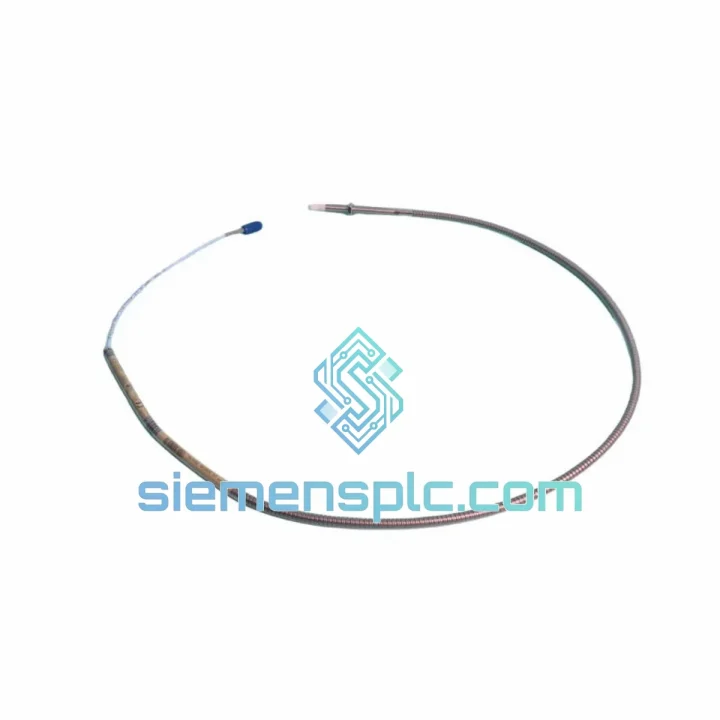

Bently Nevada 330910-00-13-10-02-05 Proximity Transducer System – 3300 XL Series

Bently Nevada 330910-00-13-10-02-05: Eddy-Current Shaft Monitoring at the Core of Rotating Machinery Protection

The Bently Nevada 330910-00-13-10-02-05 is an 8 mm eddy-current proximity transducer system within the 3300 XL product family — a platform that has defined the API 670 machinery protection standard for rotating equipment across power generation, oil & gas, and petrochemical industries for decades. This specific part number encodes a fully configured system: 8 mm probe diameter, 1.0 m integral probe cable, and a 5.0 m armored extension cable, delivering a calibrated total system gap range of 0.25 mm to 2.54 mm with a nominal output of −18 Vdc at the mid-gap operating point.

In a rotating machinery protection architecture, the proximity transducer occupies the first and most critical node in the signal chain. It converts mechanical shaft displacement — radial vibration, axial position, differential expansion, or eccentricity — into a continuous analog voltage signal that feeds directly into Bently Nevada 3300 or 3500 series monitors. Any degradation in transducer linearity, sensitivity drift, or cable impedance mismatch propagates as measurement error through the entire protection loop, potentially masking a developing fault or triggering a spurious trip. The 330910-00-13-10-02-05 is engineered to eliminate these failure modes through tightly controlled manufacturing tolerances and a matched-system calibration approach.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330910-00-13-10-02-05 operates on the principle of high-frequency electromagnetic induction. The probe coil, driven by the Proximitor oscillator at approximately 1 MHz, generates an alternating magnetic field that induces eddy currents in the conductive target surface. The magnitude of these eddy currents — and therefore the energy absorbed from the oscillator circuit — is a precise function of the air gap between probe face and shaft surface. The Proximitor converts this impedance variation into a DC voltage output with a scale factor of 7.87 V/mm.

EMC Design: The 3300 XL probe body is constructed from 316 stainless steel with a fully shielded coaxial cable architecture. The shield is grounded at the Proximitor end only, forming a single-point ground that eliminates ground loop currents — a common source of 50/60 Hz noise injection in industrial environments with multiple earthing points. The extension cable’s armor provides an additional Faraday shield layer, attenuating radiated EMI from variable-frequency drives, high-current bus bars, and switching power supplies that are ubiquitous in turbomachinery control rooms.

Matched-System Calibration: Unlike generic eddy-current sensors where probe and driver are interchangeable, the 3300 XL system is calibrated as a matched set. The suffix structure of part number 330910-00-13-10-02-05 encodes the exact cable lengths used during factory calibration. Substituting a different cable length — even within the same probe family — shifts the resonant frequency of the LC circuit formed by the probe coil and cable capacitance, introducing a scale factor error that cannot be corrected by monitor gain adjustment alone. This matched-system architecture is the primary reason API 670 mandates complete system replacement rather than component-level substitution.

Thermal Stability: The probe coil is wound on a ceramic bobbin with a low coefficient of thermal expansion, maintaining coil geometry — and therefore scale factor — within ±0.5% across the full −35°C to +121°C operating range. This is particularly relevant in steam turbine pedestals where bearing housing temperatures can cycle significantly during startup and shutdown sequences.

Cable Impedance Control: The extension cable is manufactured to a controlled characteristic impedance, minimizing reflections at the probe-to-extension cable junction. At the 1 MHz oscillator frequency, even a small impedance discontinuity can introduce standing waves that modulate the apparent gap signal. The 330910 series extension cables are tested for impedance uniformity along their full length before assembly into the matched system.

System Integration Benefits

• Direct Monitor Compatibility: Plug-and-play integration with Bently Nevada 3300/16, 3500/40M, and 3500/42 monitors — no span or zero recalibration required when replacing a like-for-like 330910-00-13-10-02-05 unit, reducing maintenance window duration.
• Deterministic Signal Latency: The analog output path from probe to monitor introduces no digital processing delay, ensuring that shaft displacement events are captured within the monitor’s sampling interval — typically <1 ms for 3500 series monitors — preserving the integrity of trip response timing.
• Dual-Use Measurement: A single installed transducer simultaneously provides radial vibration (AC component, 1×, 2× harmonic analysis) and shaft centerline position (DC component, gap voltage) data to the monitor, eliminating the need for separate sensors for each measurement function.
• System 1 Software Integration: The calibrated scale factor of 7.87 V/mm is natively recognized by Bently Nevada System 1 Evolution software, enabling direct engineering-unit display (µm pk-pk or mil pk-pk) without manual conversion factors in the historian configuration.
• Fault Diagnostic Transparency: The Proximitor’s OK relay output provides a hardware-level signal integrity indicator. A gap voltage outside the −2 Vdc to −18 Vdc OK window — caused by probe damage, cable open-circuit, or target loss — drives the OK relay to the de-energized state, triggering a monitor channel fault alarm independently of the vibration alarm setpoints.
• Redundant Architecture Support: The 8 mm probe diameter and standard mounting thread (M10 × 1.0) are compatible with dual-probe redundant installations per API 670 Annex D, where two probes are mounted 90° apart for XY vibration vector analysis and voting logic in 2oo2 protection configurations.
• Minimal Intrusion Geometry: The 8 mm probe diameter allows installation in bearing housings with limited radial clearance, including compact gearbox designs and small-frame centrifugal pumps where larger probe formats are geometrically excluded.
• Long-Term Spare Parts Availability: The 330910 series has maintained dimensional and electrical backward compatibility across multiple product generations, protecting the capital investment in existing monitor infrastructure and allowing phased replacement of aging transducer systems without monitor upgrades.

Quality Assurance & Global Logistics

Every Bently Nevada 330910-00-13-10-02-05 unit supplied by siemensplc.com is sourced as genuine OEM hardware. Prior to dispatch from our Xiamen, China facility, each unit undergoes a structured pre-shipment inspection protocol:

• Physical Integrity Check: Probe tip face, cable jacket, armor terminations, and connector pin geometry inspected against OEM dimensional references. Any unit with mechanical damage to the probe body or cable armor is rejected.
• Electrical Functional Test: Output voltage measured at three calibrated gap distances (0.5 mm, 1.0 mm, 1.5 mm) using a calibrated gap simulation fixture. Scale factor deviation must be within ±1% of the nominal 7.87 V/mm to pass.
• Part Number Verification: Label, date code, and serialization cross-referenced against Bently Nevada documentation to confirm authenticity and correct configuration.
• Packaging: Units are individually sealed in anti-static, moisture-barrier packaging with desiccant. Probe tip is protected by a machined cap. Each shipment includes an inspection record with test data.

Logistics from Xiamen operate via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard transit times are 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia and the Middle East. Full export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 9031.80) — is provided with every shipment. For customers requiring CITES, EAR, or end-user certificate compliance, our logistics team coordinates documentation in advance of dispatch. All units carry a 12-month warranty against manufacturing defects from the date of shipment.
