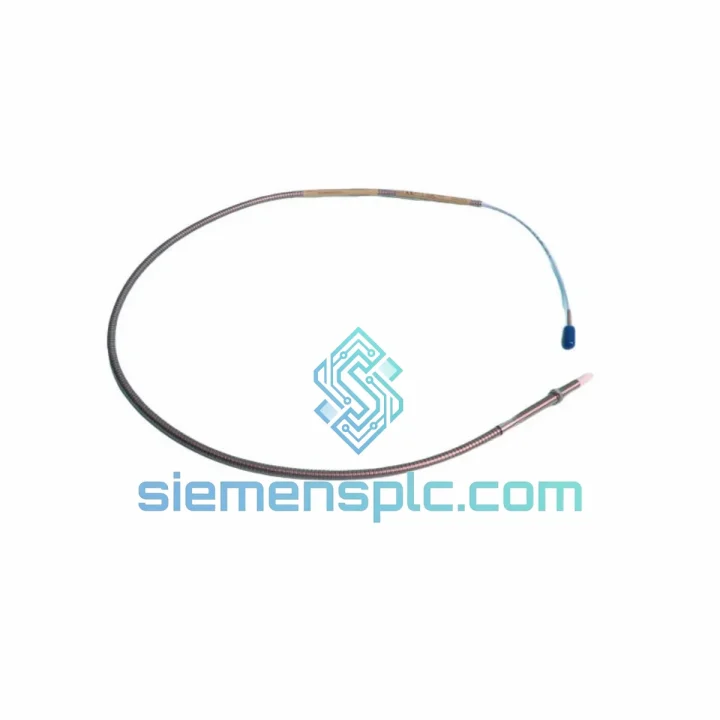

Bently Nevada 330910-00-22-10-01-00 Proximity Transducer – 3300 XL Series

330910-00-22-10-01-00: Non-Contact Shaft Measurement at the Core of Rotating Machinery Protection

The Bently Nevada 330910-00-22-10-01-00 is an 8 mm eddy-current proximity transducer system belonging to the 3300 XL Series — a platform that has defined the API 670 machinery protection standard across oil & gas, power generation, and petrochemical industries for decades. This specific configuration ships with a 22-foot (6.7 m) extension cable and is calibrated for AISI 4140 steel targets, delivering a sensitivity of 200 mV/mil (7.87 V/mm) across a linear measurement range of 10–90 mil (0.25–2.29 mm).

Unlike contact-based displacement sensors, the eddy-current operating principle of the 330910 series imposes zero mechanical load on the rotating shaft. The probe generates a high-frequency electromagnetic field; when a conductive target enters this field, eddy currents are induced on the target surface, altering the probe’s oscillator circuit impedance. The Proximitor driver converts this impedance shift into a calibrated DC voltage output (−1 VDC to −21 VDC), which is then processed by the 3300 series monitor card for alarm and trip logic. This non-contact architecture eliminates wear, removes the need for periodic recalibration under normal operating conditions, and sustains measurement integrity across the full machine lifecycle.

The 330910-00-22-10-01-00 is deployed in steam turbine bearing pedestals, centrifugal compressor radial bearing housings, gearbox output shaft assemblies, and axial thrust collar measurement planes. Its frequency response of 0–10,000 Hz captures sub-synchronous instabilities, synchronous imbalance vectors, and high-frequency rubs that are invisible to accelerometer-based systems mounted on bearing housings.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330910-00-22-10-01-00 operates on a three-component signal chain: probe oscillator → extension cable → Proximitor driver. Each element is impedance-matched at the factory to the specific cable length encoded in the part number (22 ft in this configuration). Substituting a mismatched cable length without recalibration introduces a static offset error that propagates directly into the monitor’s gap voltage reading — a failure mode that is silent and difficult to detect during commissioning.

The probe coil is wound on a ferrite core and encapsulated in a stainless steel housing with a PEEK (polyether ether ketone) tip. PEEK provides electrical isolation between the coil assembly and the machine structure, preventing ground loop currents that would otherwise appear as low-frequency noise on the output signal. The stainless steel armor on the extension cable provides both mechanical protection and EMC shielding, with the shield terminated at the Proximitor end only — a single-point grounding topology that suppresses common-mode interference without creating a ground loop through the cable shield.

The Proximitor driver contains a Colpitts oscillator operating at approximately 1 MHz. The oscillator’s tank circuit is loaded by the eddy-current losses in the target, and the resulting amplitude modulation is demodulated to produce the DC output voltage. The 1 MHz carrier frequency is high enough to resolve shaft surface features at rotational speeds up to 60,000 RPM, yet low enough to maintain stable operation across the full −35°C to +85°C driver temperature range without frequency drift compensation circuits. This design choice reflects a deliberate trade-off between bandwidth and thermal stability that is appropriate for the 0–10,000 Hz measurement bandwidth required by API 670.

EMC performance is governed by the probe’s coaxial field geometry. The eddy-current field is confined to a hemisphere approximately 2× the probe diameter in radius (≈16 mm for an 8 mm probe). This tight field confinement means that adjacent metallic structures — bearing housings, proximity probe guards, and keyway features — must be kept outside this exclusion zone to avoid target effect errors. The 3300 XL installation manual specifies a minimum clearance of 3× the probe diameter from any secondary conductive surface, a constraint that must be verified during mechanical design review.

System Integration Benefits

• Drop-in 3300 Rack Compatibility: The 330910 series is electrically and mechanically interchangeable with all 3300 XL monitor cards, including the 3300/16, 3300/20, and 3300/25 series, eliminating the need for rack modifications or firmware updates during replacement.
• Deterministic Latency: The analog signal path from probe to monitor card introduces less than 100 µs of measurement latency, ensuring that trip logic responds to shaft events within the monitor’s configured time-delay window without additional signal processing delay.
• Dual-Measurement Capability: A single 330910 probe, when paired with a matched Proximitor and a 3300/20 dual-channel monitor, simultaneously provides radial vibration (AC-coupled) and average shaft gap (DC) measurements on a single channel pair, reducing probe count and wiring complexity.
• Diagnostic Transparency via Gap Voltage: The DC gap voltage output provides a continuous, real-time indicator of probe-to-shaft clearance. A drifting gap voltage — without a corresponding change in vibration amplitude — is a reliable early indicator of probe fouling, target surface degradation, or mounting bracket creep, enabling condition-based maintenance scheduling.
• Hazardous Area Deployment: ATEX and IECEx Zone 1 certification allows installation in gas-group IIC environments (hydrogen atmosphere) without additional barriers or zener diode safety units in most configurations, simplifying the intrinsic safety design.
• Long-Lifecycle Asset Support: The 3300 XL platform has maintained backward compatibility across multiple hardware revisions. Replacement of a failed probe does not require re-engineering of the monitor rack, cable routing, or DCS interface — a critical consideration for plant assets with 20–40 year operational lifespans.
• Calibration Traceability: Each 330910 system is factory-calibrated against NIST-traceable standards. The calibration data is encoded in the part number suffix, allowing maintenance engineers to verify system performance against the original factory curve without specialized test equipment.
• Reduced Commissioning Risk: The matched-system approach (probe + cable + driver sold as a calibrated set) eliminates the most common commissioning error in proximity transducer installations: mismatched component combinations that produce incorrect sensitivity and require field recalibration.

Quality Assurance & Global Logistics

Every 330910-00-22-10-01-00 unit dispatched from our Xiamen, China facility is sourced through verified industrial supply channels and undergoes a structured pre-shipment inspection protocol. This includes visual examination of the probe tip, connector, and cable armor for mechanical damage; part number and revision verification against manufacturer documentation; continuity and insulation resistance checks on the extension cable; and anti-static packaging with a humidity indicator card sealed inside the shipping carton. A certificate of conformance is available upon request for each shipment.

We do not handle refurbished-as-new, cosmetically restored, or unverified surplus inventory. All stock is traceable to its procurement source, and documentation is retained for a minimum of five years to support plant audit requirements.

From Xiamen, we ship to over 60 countries via DHL Express, FedEx International Priority, and UCP air freight consolidation. In-stock units are dispatched within 1–2 business days of payment confirmation. Export documentation — including commercial invoice, packing list, HS code 9031.80 classification, and certificate of origin — is prepared in-house. For projects requiring EPC-standard documentation packages (material test reports, third-party inspection certificates), contact our logistics team in advance of order placement.

A 12-month warranty covers defects in materials and workmanship from the date of shipment. Warranty claims are processed with a target response time of 48 hours. Replacement units are dispatched before the defective unit is returned, subject to a security deposit, to minimize plant downtime.
