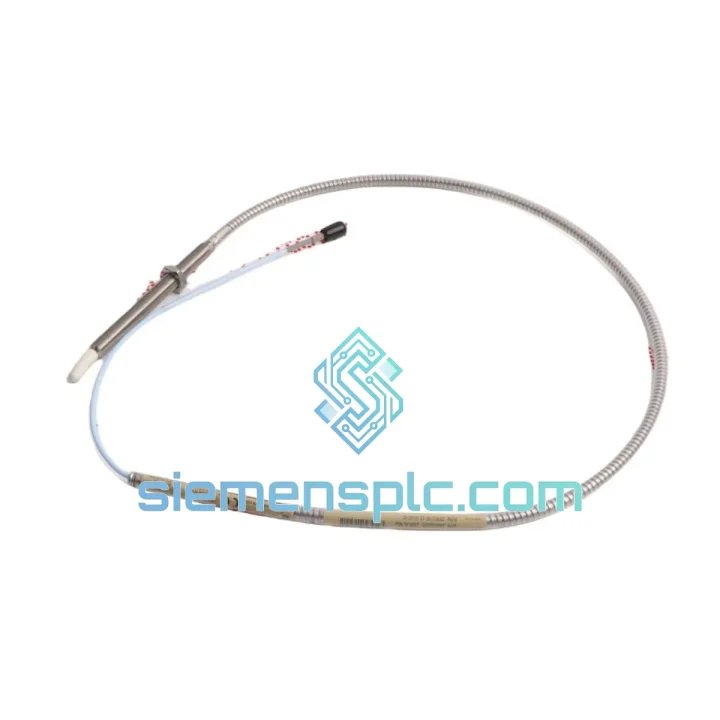

Bently Nevada 330910-00-25-10-02-00 Proximity Probe

330910-00-25-10-02-00 — Stop the Clock on Your Downtime

Your steam turbine just tripped. The DCS is screaming a HIGH VIBRATION alarm on the radial channel. Maintenance pulls the probe — tip is corroded, cable jacket cracked at the gland, output voltage drifted 3 V off the nominal gap. You need a Bently Nevada 330910-00-25-10-02-00 in your hands today, not in six weeks. Every hour that machine sits idle costs your facility real money — in a mid-size refinery, unplanned compressor downtime routinely runs USD 15,000–40,000 per hour when you factor in lost throughput, flare losses, and contractor callouts.

We stock the 330910-00-25-10-02-00 at our Xiamen warehouse specifically for this scenario. Same-day dispatch on confirmed orders. DHL Express door-to-door in 2–5 business days to most industrial hubs worldwide. No minimum order quantity. No waiting for a distributor to locate stock from a regional hub. You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures that point to a dead 330910-00-25-10-02-00:

• DC gap voltage out of range: Nominal gap for this probe at 10 mm is approximately –10 VDC (with a standard –24 VDC Proximitor supply). If your monitor is reading –6 V or –18 V at a gap you know is correct, the probe coil is suspect — not the Proximitor.
• Bently Nevada fault code 01 / “Not OK” LED on 3500/40M: First rule out cable continuity. Disconnect the extension cable at the Proximitor junction box and measure probe tip-to-connector resistance. Should read 7–9 Ω on the coil. Open circuit or >15 Ω = failed probe.
• Intermittent vibration spikes with no process change: Classic symptom of a cracked cable jacket causing intermittent ground faults. Flex the cable near the gland fitting while watching the raw gap voltage — if it jumps, replace the probe assembly.
• High 1× amplitude after bearing replacement: Don’t assume the new bearing is bad. Check probe gap first. A gap shift of even 0.5 mm changes the sensitivity curve enough to generate false amplitude readings.

Step-by-step replacement procedure (field-proven):

1. Isolate and lock out the Proximitor power supply at the junction box — do not pull the probe while the system is live. You risk a false machine trip if the monitor interprets the open circuit as a vibration event.
2. Record the existing gap voltage before removal. This gives you a baseline to set the new probe gap without a gap meter if you are in a pinch.
3. Remove the probe by unscrewing the locknut at the bracket. Count the turns as you back it out — this tells you the approximate thread depth for the new probe installation.
4. Install the 330910-00-25-10-02-00 and thread it in to the same depth. Reconnect the extension cable. Power up the Proximitor and read the gap voltage. Target: –10 VDC ± 0.5 V at your nominal 10 mm gap.
5. Fine-adjust gap by rotating the probe body in or out (each full turn on the M8 thread = ~1.25 mm gap change). Lock the nut when gap voltage is within spec.
6. Verify OK status on the 3500 monitor front panel. Confirm 1× and 2× amplitude readings are consistent with baseline data before returning the machine to service.
7. No recalibration of the monitor card is required for a like-for-like 330910-00-25-10-02-00 replacement — the sensitivity factor (7.87 V/mm) is identical across the 3300 NSv probe family.

Configuration note: The 330910-00-25-10-02-00 has no DIP switches or firmware — it is a passive eddy current sensor. All configuration lives in the Proximitor and the 3500 monitor card. If replacing a probe after a monitor card swap, verify the scale factor setting in the 3500 configuration software matches 7.87 V/mm before commissioning.

Reliability in Harsh Conditions

The 3300 NSv probe series was engineered for environments that destroy lesser sensors. The 330910-00-25-10-02-00 addresses the failure modes field engineers encounter most often in rotating machinery applications.

Vibration fatigue: The integral 2-metre cable uses a multi-strand, helically wound conductor inside an armored jacket. This construction resists the cyclic bending stress that kills solid-conductor cables at gland fittings — a failure mode that typically appears after 18–36 months in high-vibration compressor applications. The probe body is machined from 316 stainless steel with a threaded body that maintains torque retention even after repeated thermal cycling.

High-temperature operation: With a probe tip rating of +177 °C, the 330910-00-25-10-02-00 handles the bearing housing temperatures found in steam turbine pedestals and hot gas expanders without signal drift. The coil potting compound is rated for continuous exposure at these temperatures — not just short-term excursions.

Chemical and moisture ingress: Petrochemical environments expose probes to hydrocarbon vapors, H₂S, and process water. The stainless housing and sealed coil assembly resist chemical attack. The cable jacket material is compatible with common industrial solvents and lubricants found in compressor and turbine lube oil systems.

EMI immunity: Eddy current technology is inherently immune to electromagnetic interference generated by VFDs, large motors, and switchgear — a significant advantage over piezoelectric sensors in electrically noisy plant environments. The 3300 NSv signal conditioning chain maintains signal integrity even when probe cables are routed alongside power cables in congested cable trays.

Global Express Logistics

Our Xiamen warehouse is positioned to serve industrial customers across Asia-Pacific, the Middle East, Europe, and the Americas with competitive transit times.

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to DHL Express or FedEx International Priority.
• Commercial invoice and packing list prepared to your specification — including HS code 8543.70 for smooth customs clearance in most jurisdictions.
• Transit times from Xiamen: Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | Australia 2–3 days.
• Tracking number provided within 2 hours of dispatch. We monitor shipments proactively and flag any customs holds immediately.
• Export documentation: We handle industrial goods export paperwork, dual-use screening, and can provide a Certificate of Origin on request.
• Dangerous goods: The 330910-00-25-10-02-00 is non-hazardous and ships without restriction under IATA regulations — no delays for DG classification.

For customers in regions with complex import requirements — India, Brazil, Saudi Arabia — contact us before ordering and we will advise on the most efficient routing and documentation package.
