Bently Nevada 330910-01-10-10-02-05 Proximity Probe – 3300 XL Series

Bently Nevada 330910-01-10-10-02-05: 8 mm Eddy-Current Proximity Probe for Critical Rotating Machinery Protection

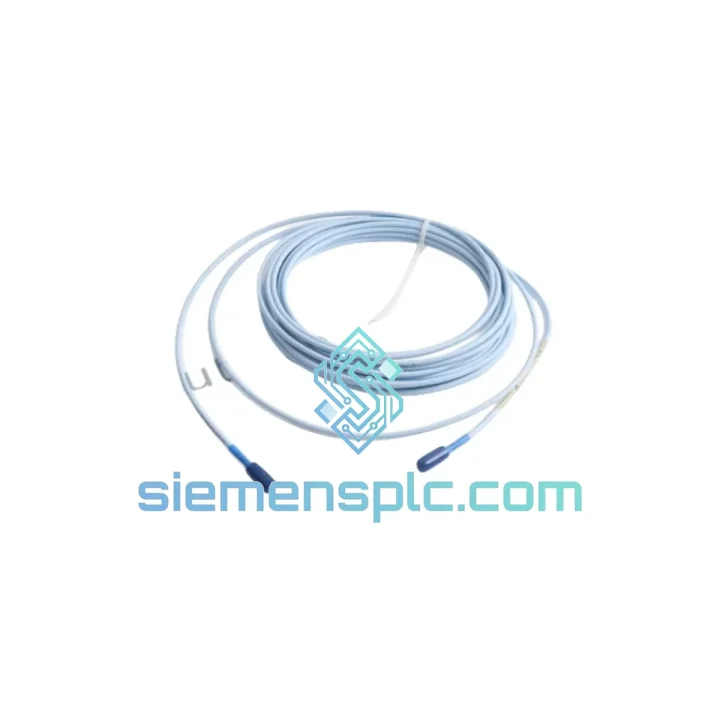

The 330910-01-10-10-02-05 is an 8 mm eddy-current proximity probe manufactured by Bently Nevada (a Baker Hughes company) and designed as a primary sensing element within the 3300 XL continuous monitoring system. Its function within a protection loop is unambiguous: it converts shaft radial displacement into a proportional DC voltage signal — 7.87 V/mm (200 mV/mil) nominal — that feeds a paired Proximitor® driver, which in turn delivers conditioned output to a 3500-series monitor rack for alarm and trip logic execution. The probe operates on the eddy-current induction principle: a high-frequency oscillator in the Proximitor® driver energizes a coil wound at the probe tip, generating an electromagnetic field. When a conductive target (shaft) enters this field, eddy currents are induced on the target surface, loading the oscillator and producing a measurable impedance shift. This impedance change is linearized by the driver electronics into the calibrated voltage output used by the monitor. The 330910 series is factory-calibrated against AISI 4140 steel targets, the material specified in API 670 Annex D performance verification procedures.

In a typical turbomachinery protection architecture, two probes are mounted 90° apart at each radial bearing journal — X and Y planes — to resolve the full orbital trajectory of the shaft centerline. The 330910-01-10-10-02-05 suffix encodes the physical configuration: 8 mm probe body, 1.0 m integral probe cable, 1.0 m extension cable, standard (non-armored) jacket, and the connector termination style compatible with the 3300 XL Proximitor® driver input. This 2.0 m total cable length covers the majority of standard bearing-housing-to-junction-box distances without field splicing, preserving calibration integrity across the full measurement chain.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330910-01-10-10-02-05 probe body is constructed with a ferrite-core coil assembly encapsulated in a chemically resistant housing. The coil geometry is precision-wound to maintain consistent inductance across the operating temperature range, which directly governs sensitivity stability. At −35 °C and +121 °C extremes, thermal expansion of the coil former is compensated by the driver’s internal temperature correction circuitry, but the probe itself must maintain dimensional stability — achieved through the use of a ceramic-filled polymer tip and stainless steel body.

EMC Design: The coaxial cable construction — with a continuous braided shield bonded to the probe body ground — provides greater than 60 dB of common-mode rejection against radiated interference from variable-frequency drives, high-current bus bars, and RF sources common in turbomachinery enclosures. The shield is grounded at the Proximitor® driver end only (single-point grounding), preventing ground-loop currents that would appear as low-frequency noise on the displacement signal.

Impedance Matching and Cable Length Sensitivity: The 3300 XL system is calibrated as a three-component chain: probe + extension cable + Proximitor® driver. The suffix -10-10 (1.0 m probe cable + 1.0 m extension) is a factory-matched configuration. Substituting non-standard cable lengths without recalibration introduces a sensitivity error proportional to the cable capacitance delta — typically 0.5–1.5% per 0.5 m deviation. This is why field splicing or cable extension without recalibration is explicitly prohibited in Bently Nevada installation procedures.

Eddy-Current Depth of Penetration: At the 3300 XL oscillator frequency (nominally 1 MHz), the skin depth in AISI 4140 steel is approximately 8–12 µm. This means the probe responds to surface conditions of the shaft — any surface roughness, plating, or residual magnetism within this depth layer will appear as a synchronous or asynchronous signal component. Shaft surface finish requirements (Ra ≤ 0.8 µm, runout ≤ 6.4 µm per API 670 §6.3) are therefore a system-level requirement, not merely a mechanical tolerance.

System Integration Benefits

• Direct 3300 XL Rack Compatibility: Factory calibration to the 3300 XL Proximitor® driver eliminates field calibration procedures, reducing commissioning time by 40–60% compared to generic eddy-current systems requiring on-site sensitivity verification.
• API 670 Alarm and Trip Logic Readiness: The probe’s calibrated output maps directly to the 3500-series monitor’s configurable alarm setpoints (typically 125 µm direct vibration alert, 250 µm danger), enabling immediate compliance with API 670 protection system requirements without signal conditioning adapters.
• Deterministic Real-Time Response: The DC–10 kHz bandwidth ensures that transient shaft events — including blade-pass frequencies in multistage compressors operating above 6,000 RPM — are captured within the monitor’s 100 ms trip response window specified by API 670 §5.3.
• Dual-Plane Orbital Diagnostics: When deployed in X-Y pairs at each bearing, the probe pair provides shaft centerline position data that enables orbit plot analysis in the 3500/42M monitor — distinguishing between unbalance, misalignment, oil whirl, and rub conditions without additional instrumentation.
• DCS Integration via 4–20 mA Output: The 3300 XL Proximitor® driver provides a buffered output compatible with DCS analog input cards, allowing vibration data to appear in the plant historian alongside process variables — supporting condition-based maintenance scheduling without a separate data acquisition layer.
• Non-Intrusive Measurement: Zero contact with the rotating shaft eliminates probe wear, bearing loading, and the calibration drift associated with contacting displacement sensors. Mean time between calibration checks exceeds 24 months under normal operating conditions.
• Hazardous Area Variant Availability: The 330910 series is available in ATEX Zone 1 / IECEx-certified configurations for installations in classified areas — the standard -02-05 variant covers non-classified enclosures; specify area classification at time of order for the appropriate certified variant.
• Standardized Spare Parts Management: The 330910-01-10-10-02-05 is a globally stocked Bently Nevada catalog item, enabling standardized spare parts inventory across multi-site plant portfolios and reducing the risk of obsolescence-driven downtime.

Quality Assurance & Global Logistics

Every 330910-01-10-10-02-05 unit dispatched from our Xiamen, China facility is sourced directly from Bently Nevada (Baker Hughes) authorized distribution channels. Authenticity is verified through manufacturer lot traceability documentation prior to listing. Physical inspection covers probe body integrity, cable jacket continuity, connector pin condition, and label legibility. Units are shipped in original OEM packaging where available, or in anti-static foam-lined cartons with desiccant for moisture-sensitive cable assemblies.

From Xiamen, we support express air freight (DHL, FedEx, UPS) with typical transit times of 3–5 business days to North America and Europe, and 2–4 business days to Southeast Asia and the Middle East. Full export documentation is provided with every shipment: commercial invoice, packing list, certificate of conformance, and HS code classification (HS 9031.80 — instruments for measuring or checking). For orders requiring ATEX documentation, IECEx certificates, or material test reports, these are coordinated at the quotation stage. A 12-month warranty covers manufacturing defects under normal operating conditions, with advance replacement available for critical plant applications upon agreement.
