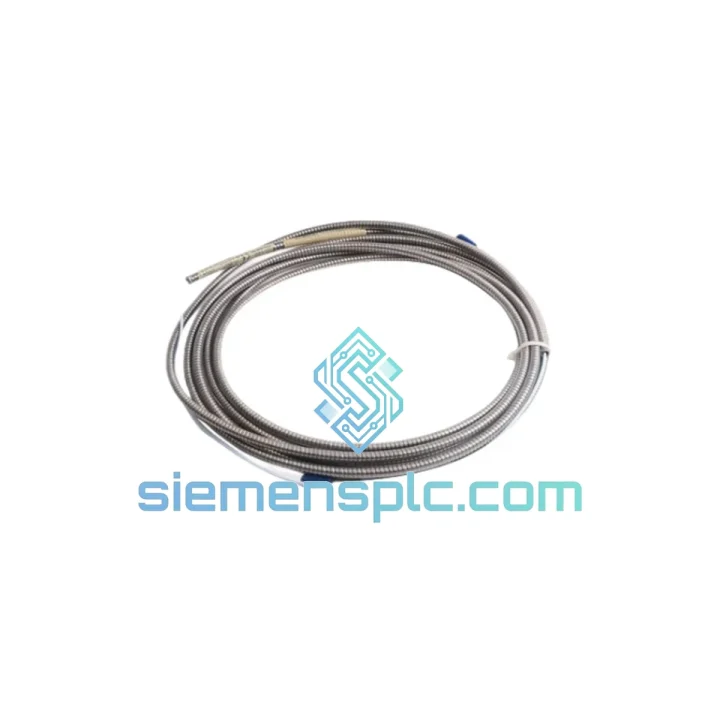

Bently Nevada 330930-040-00-CN Extension Cable

330930-040-00-CN Proximity Extension Cable: Stop the Clock on Unplanned Downtime

Every hour a turbine, compressor, or critical rotating machine sits idle costs real money — production losses, penalty clauses, emergency labor. When your Bently Nevada proximity system throws a fault and the extension cable is the culprit, you need a verified replacement on-site fast, not a two-week lead time from a distributor who has to “check stock.” The Bently Nevada 330930-040-00-CN 40 ft conduit-armored extension cable is on our shelf in Xiamen right now. We ship DHL/FedEx Express within 24 hours of order confirmation. That is the only promise that matters when your plant is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls teach you one thing: most proximity system faults that get blamed on the proximitor or the monitor card are actually a degraded extension cable. Here is how to diagnose and replace the 330930-040-00-CN without wasting time.

Common Fault Signatures Pointing to the Extension Cable:

• OK LED off, -24 V supply confirmed good — Measure DC gap voltage at the proximitor output. If it reads outside the −10 V to −18 V window with the probe at nominal gap, suspect cable impedance drift or a broken shield braid.
• Intermittent vibration spikes on a healthy machine — Flex the cable conduit near the probe end while watching the monitor. A spike on flex = cracked inner conductor or compromised connector crimp.
• System 1 / ADRE showing “Not OK” with no process change — Pull the extension cable from the proximitor and measure resistance tip-to-tip. Spec is <2 Ω center conductor, >10 MΩ shield-to-conductor isolation. Anything outside this: replace the cable.
• Calibration drift after maintenance — If the cable was bent sharply or kinked during a turnaround, the dielectric constant shifts. A like-for-like replacement restores factory sensitivity without recalibration.

Step-by-Step Replacement Procedure:

• Step 1 — Bypass or inhibit the channel in the 3500 rack (use the front-panel inhibit switch or System 1 software) before disconnecting. Failure to inhibit will trigger a machinery trip if the machine is running.
• Step 2 — Tag out the probe circuit per your site LOTO procedure. The −24 V DC supply to the proximitor must remain live during measurement but the machine should be at rest for cable swap.
• Step 3 — Disconnect at both ends: probe-end connector first, then proximitor-end. Note the routing path — the conduit armor on the CN version is rigid; allow a minimum bend radius of 75 mm to avoid kinking the replacement.
• Step 4 — Route the new 330930-040-00-CN along the same path. Do not coil excess cable — lay it in a single run. Coiling introduces inductance that degrades high-frequency vibration signals above 10 kHz.
• Step 5 — Verify gap voltage after connection. With the probe at the original gap (typically 1.0–1.5 mm for 8 mm probes), the proximitor output should read −10.0 V ± 0.5 V. If it reads outside this, check probe gap before assuming cable fault.
• Step 6 — Remove inhibit and verify OK status in the 3500 rack. Log the replacement in your maintenance management system with the new cable serial number for traceability.

Configuration Notes:

• The 330930-040-00-CN does not have DIP switches or firmware — it is a passive cable assembly. No address configuration is required.
• Total system cable length (probe cable + extension cable) must stay within the proximitor’s specified range. For the 3300 XL 8 mm system, the approved total is 9 m. The 40 ft (12.2 m) extension is used with a short probe cable (typically 1 m) to stay within this window.
• Do not mix CN (conduit) and non-CN cables in the same system run — the mechanical termination method differs and can introduce connector stress at the junction.

Reliability in Harsh Conditions

The 330930-040-00-CN was engineered for environments that destroy ordinary instrumentation cables. The stainless-steel conduit armor (the “CN” designation) is not cosmetic — it is a structural requirement for installations where the cable runs through turbine enclosures, along compressor skids, or through areas with continuous oil mist, steam, and mechanical vibration.

• Vibration resistance: The conduit armor distributes mechanical stress along the full cable length rather than concentrating it at connectors. Field data from petrochemical installations shows CN-version cables outlasting non-armored versions by 3–5x in high-vibration zones (above 10 g RMS).
• Thermal cycling: The −40 °C to +125 °C operating range covers everything from Arctic cold-start conditions to the radiant heat zones adjacent to gas turbine exhaust casings. The PTFE dielectric maintains stable impedance across this full range — critical for accurate vibration amplitude measurement.
• Chemical resistance: The outer conduit and connector bodies resist hydrocarbon fluids, H₂S atmospheres, and cleaning solvents common in refinery and LNG environments. The inner coaxial assembly is fully sealed against moisture ingress at both connector terminations.
• Mechanical impact: The armored jacket withstands incidental tool strikes and cable tray abrasion that would sever an unprotected cable. In practice, this means fewer nuisance faults during plant turnarounds when maintenance traffic around the machine is highest.

Every unit we ship has passed incoming inspection: center conductor continuity, shield isolation, and connector seating are verified before the cable leaves our warehouse. We do not ship untested stock.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx Express gateway access. This is not a drop-ship arrangement. Stock is physically on our shelves, and orders confirmed before 14:00 CST ship the same business day.

• DHL Express Worldwide: Europe, Middle East, and Southeast Asia typically receive shipments in 2–4 business days from dispatch. North America 3–5 business days.
• FedEx International Priority: Available for customers with FedEx account numbers or for time-critical shipments where DHL is not preferred. Transit times comparable to DHL Express.
• Export documentation: Commercial invoice, packing list, and certificate of conformance (COC) are prepared for every shipment. HS code 8544.42 is pre-classified for smooth customs clearance. We handle export licensing screening — no delays from your end.
• Packaging: Each cable is individually wrapped in anti-static foam, placed in a rigid outer carton, and labeled with the part number and serial number. Connector ends are capped to prevent damage during transit. We have shipped to 40+ countries without a single transit-damage claim.
• Tracking: AWB number is emailed within 2 hours of dispatch. Real-time tracking link provided. For urgent shipments, our logistics team monitors the shipment and proactively flags any customs holds.
• Emergency same-day dispatch: For confirmed plant-down situations, contact us via WhatsApp before 12:00 CST. We will prioritize packing and hand-carry to the DHL gateway if necessary.
