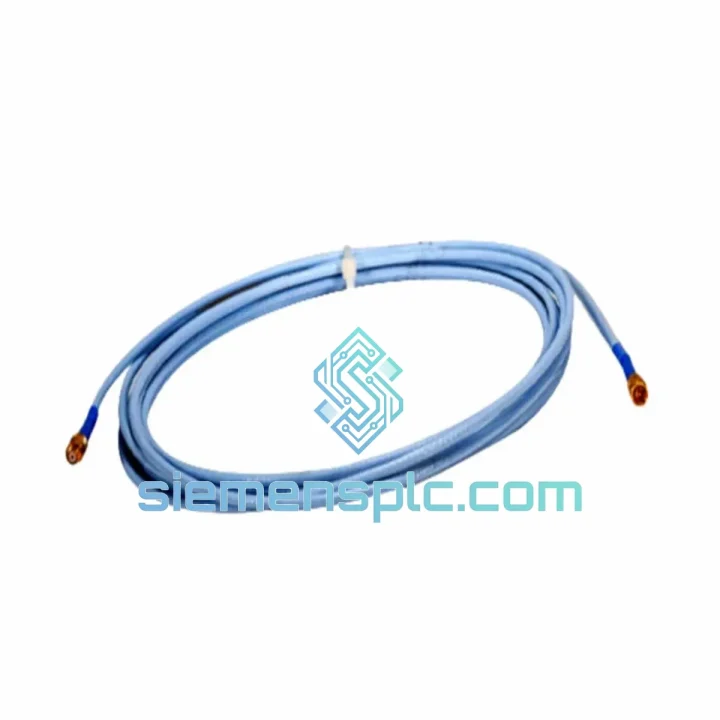

Bently Nevada 330930-040-02-00 Extension Cable

330930-040-02-00 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Your turbine is down. Your compressor is offline. Every hour without a working proximity transducer system costs real money — lost production, idle crews, and contract penalties. The Bently Nevada 330930-040-02-00 armored extension cable is the exact link between your proximity probe and proximitor that your 3300 XL system needs to get back online. We stock it. We ship it fast. No waiting on OEM lead times that stretch into weeks.

This is a 40 ft (12.2 m) armored extension cable, suffix breakdown: -040 = 40 ft length, -02 = armored construction, -00 = standard connector. Every digit matters when you’re ordering under pressure — confirm all three before you submit your PO.

📧 URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here’s what actually goes wrong with extension cables — and what to check before you condemn the module:

1. Verify total cable system length first. The 3300 XL proximitor is factory-calibrated to a specific total cable length: probe cable + extension cable combined. The most common field mistake is swapping in a different-length extension without recalibrating the proximitor. If your gap voltage is reading off-scale or your vibration baseline has shifted after a cable swap, this is the first thing to check. The total system length must match the proximitor’s calibrated range — typically 5 m, 9 m, or a custom value stamped on the proximitor label.

2. Check the suffix digits — all three. A -040-02-00 is not interchangeable with a -040-00-00 (non-armored) or a -040-02-05 (different connector). In a pinch, engineers sometimes grab whatever is on the shelf. If the connector doesn’t seat fully or the armor jacket looks different, you likely have a suffix mismatch. Pull the part number off the cable jacket label and compare digit by digit.

3. Connector integrity is the #1 failure point. The BNC-style connectors on these cables are vulnerable to corrosion, mechanical damage from repeated disconnection, and contamination from machine oil. Before replacing the cable, clean the connector with isopropyl alcohol and inspect the center pin under a flashlight. A bent or corroded pin will cause intermittent gap voltage readings that look like a failing proximitor — but the proximitor is fine.

4. Shield continuity check. Use a multimeter to verify shield continuity end-to-end. An open shield on an extension cable introduces EMI pickup that manifests as high-frequency noise on your vibration channel. If your 3500 monitor is throwing a Not OK on a channel that was previously healthy, and the probe gap voltage looks correct, check shield continuity on the extension cable before pulling the proximitor.

5. Proximitor self-check after cable swap. After installing the new 330930-040-02-00, power up the proximitor and measure the output voltage at the driver output terminals. For a standard 3300 XL system with an 8 mm probe at nominal gap, you should see approximately -10 VDC ± 1 V. If you’re outside that range, re-check the probe gap (typically 1.0–1.5 mm for 8 mm probes) before assuming the cable or proximitor is defective.

6. No field splicing. It’s tempting when you’re 2 hours into a forced outage and the cable is 2 feet short. Don’t do it. A splice introduces an impedance discontinuity that shifts the system’s sensitivity curve. Order the correct length. We can ship overnight.

Reliability in Harsh Conditions

The 330930-040-02-00 is built for environments that destroy ordinary instrumentation cables. The armored jacket (-02 designation) is not cosmetic — it’s a mechanical shield against the real-world abuse that happens inside turbine enclosures, compressor skids, and pump pits.

Vibration is the constant enemy of any cable in a rotating machinery installation. The armor construction distributes mechanical stress along the cable length rather than concentrating it at the connector roots, which is where unarmored cables fail first. In high-vibration applications — gas turbine exhaust ends, high-speed compressor bearing housings — the armored variant is the only acceptable choice.

Temperature cycling is the second major stress factor. The cable’s operating range of -40°C to +85°C covers the full envelope from cold-start conditions in outdoor installations to the sustained heat of a running turbine enclosure. The dielectric material maintains its impedance characteristics across this range, which is critical for measurement accuracy — a cable that changes impedance with temperature will introduce a temperature-dependent offset into your vibration readings.

Moisture and chemical exposure are addressed through the cable’s construction: the armor jacket provides a physical barrier against condensation, wash-down water, and incidental contact with lubricating oil or hydraulic fluid. In offshore and coastal installations where salt-laden air accelerates corrosion, the armored cable significantly outlasts non-armored alternatives.

This is why API 670 — the machinery protection standard for critical rotating equipment — specifies armored cable construction for proximity transducer systems in covered applications. The 330930-040-02-00 meets that standard out of the box.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express networks. This is not a warehouse that batches shipments once a week. Orders confirmed before 14:00 CST ship the same business day.

Typical transit times from Xiamen:

Every shipment includes a commercial invoice, packing list, and certificate of conformance. For customers in regulated industries (oil & gas, power generation, petrochemical), we can provide additional documentation including original manufacturer paperwork upon request. Customs HS code documentation is prepared at dispatch to minimize clearance delays.

For genuine plant emergencies — forced outages, safety system failures, production-critical shutdowns — contact us directly via WhatsApp before placing your order. We will confirm stock, prepare the shipment, and coordinate with the courier for the earliest possible pickup slot. We have handled emergency dispatches with same-day courier collection for customers in critical situations.
