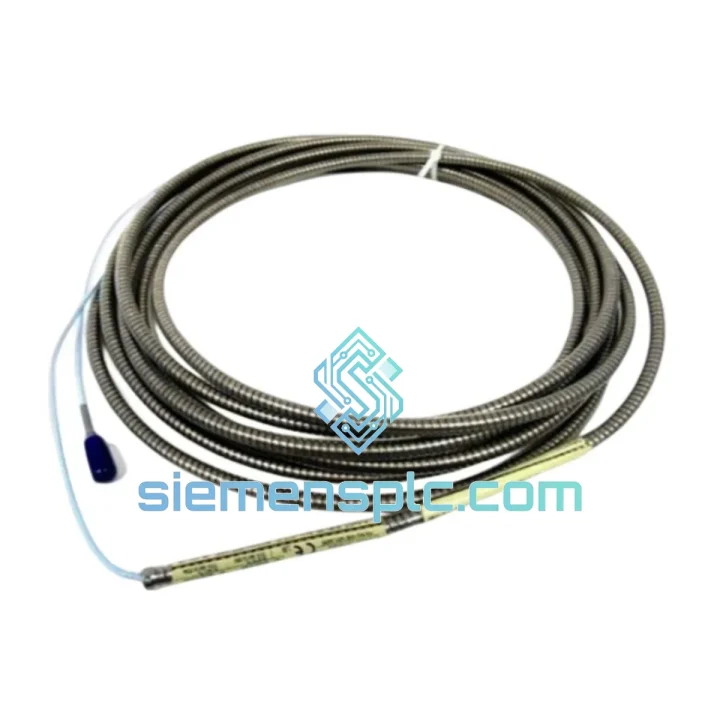

Bently Nevada 330930-060-01-CN Extension Cable – 3300 XL Series

Bently Nevada 330930-060-01-CN: 60 ft Coaxial Extension Cable for 3300 XL Proximity Transducer Systems

The Bently Nevada 330930-060-01-CN is a 60-foot (18.3 m) armored coaxial extension cable engineered specifically for the Bently Nevada 3300 XL and 3300 NSv proximity transducer systems. Its function within the measurement chain is precise: it bridges the eddy-current probe and the proximitor/oscillator module, transmitting the high-frequency carrier signal — typically 200 kHz — across the installation distance without degrading the gap-voltage linearity that the entire vibration measurement depends on.

In rotating machinery protection, signal fidelity between probe and proximitor is not a secondary concern. The 330930-060-01-CN is factory-calibrated as part of a matched system assembly. Its 50 Ω nominal impedance is held within tight tolerances across the full operating temperature range, ensuring that the proximitor’s internal oscillator maintains the correct bias point and that the scale factor — expressed in mV/mil or mV/µm — remains within the ±1% linearity specification required by API 670 machinery protection installations.

The -CN suffix designates the China-market certification variant, which carries the same electrical and mechanical specification as the standard -00 suffix but includes documentation packages aligned with domestic regulatory requirements. The cable is stocked and dispatched from Xiamen, China, with export documentation issued for all international shipments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330930-060-01-CN operates as a passive transmission element, but its hardware design carries several deliberate engineering decisions that directly affect measurement accuracy and long-term reliability in plant environments.

Impedance Continuity and Scale Factor Integrity. The 3300 XL proximitor drives a 200 kHz oscillator into the probe-cable-extension assembly. Any impedance discontinuity along this path reflects energy back toward the oscillator, shifting the resonant operating point and introducing a non-linearity error in the gap-voltage output. The 330930-060-01-CN uses a solid PTFE dielectric — not foam-core — to maintain a stable dielectric constant (εr ≈ 2.1) across the full temperature range. This prevents the impedance drift that foam-core cables exhibit above 60 °C, which is a common failure mode in turbine bearing housings where ambient temperatures routinely exceed 70 °C.

EMC Shielding Architecture. The stainless-steel armored braid provides two functions simultaneously: mechanical protection against abrasion and cable tray damage, and electromagnetic shielding with a transfer impedance below 10 mΩ/m at 200 kHz. In environments with variable-frequency drives, high-current bus bars, or adjacent RF sources, this shielding level is sufficient to suppress induced noise below the proximitor’s internal noise floor, which is specified at less than 25 mV peak-to-peak. Without adequate shielding, induced noise appears as false vibration amplitude on the monitor display — a diagnostic hazard in machinery protection applications.

Connector Mechanical Design. The MIL-C-5015 bayonet-lock connector maintains a defined contact resistance below 5 mΩ across the mating interface. The center-pin geometry is matched to the probe cable connector to prevent impedance step discontinuities at the junction. The connector body is stainless steel, providing corrosion resistance in humid or chemically aggressive environments such as offshore platforms and chemical plant cable trays.

Thermal Cycling Stability. PTFE has a coefficient of thermal expansion (CTE) of approximately 100–150 ppm/°C, which is significantly higher than the copper center conductor (17 ppm/°C). The cable construction accounts for this mismatch through a controlled stranding pitch on the center conductor, allowing the conductor to accommodate differential thermal expansion without inducing mechanical stress at the connector terminations — a failure mode that manifests as intermittent open-circuit faults after repeated thermal cycling in steam turbine applications.

System Integration Benefits

• API 670 Compliance Without Recalibration: When the 330930-060-01-CN replaces a like-for-like unit in an existing 3300 XL installation, the total system cable length is preserved. No proximitor gap-voltage recalibration is required, eliminating the need for a calibration outage and reducing maintenance downtime to the cable swap time only.
• Deterministic Signal Latency: The propagation delay through 18.3 m of 50 Ω coaxial cable at 200 kHz is approximately 91 ns — well below the proximitor’s internal signal processing window. This ensures that the phase relationship between the Keyphasor reference and the vibration signal is not distorted by cable-induced delay, which is critical for accurate 1X and 2X vector analysis in balancing and alignment diagnostics.
• Plug-and-Play with 3500 Series Monitors: The 330930-060-01-CN is electrically compatible with the Bently Nevada 3500/42M Proximitor I/O module when used with 3300-series probe assemblies, extending its utility across both the 3300 and 3500 platform generations without adapter hardware.
• Diagnostic Transparency: Because the cable is a passive element with no active components, it does not introduce failure modes that are difficult to isolate. A failed cable produces a predictable fault signature — open circuit, short circuit, or elevated noise floor — that the 3500 monitor’s channel OK relay detects and annunciates within one monitor scan cycle (typically 20 ms), enabling rapid fault isolation during plant troubleshooting.
• Reduced Spare Parts Complexity: The 330930-060-01-CN covers the most common installation distance in turbomachinery trains where the proximitor is mounted in a local junction box 15–18 m from the bearing housing. Stocking a single cable length covers the majority of plant installations, reducing spare parts inventory cost compared to maintaining multiple length variants.
• Compatibility with System 1 Asset Management: OEM units carry Bently Nevada serialization that integrates with the System 1 software asset registry. Maintenance records, installation dates, and cable serial numbers can be logged against the machine tag, supporting condition-based maintenance programs and audit trail requirements in regulated industries.
• Resistance to Plant Chemical Exposure: The PTFE outer jacket and stainless-steel armor are resistant to hydrocarbon lubricants, steam condensate, and common industrial cleaning agents. This eliminates jacket degradation as a failure mechanism in petrochemical and power generation environments where cable trays are periodically exposed to process fluid leaks.
• Interchangeability Across Probe Tip Sizes: The extension cable is mechanically and electrically identical for both 8 mm and 5 mm tip diameter 3300 XL probes. A single cable part number serves both probe variants, simplifying procurement and reducing the risk of incorrect part substitution during emergency maintenance.

Quality Assurance & Global Logistics

Each 330930-060-01-CN unit stocked at our Xiamen facility undergoes a structured incoming inspection protocol before it is allocated to customer orders. This includes visual inspection of the connector bodies and jacket for transit damage, continuity measurement of the center conductor (target: <1 Ω end-to-end), shield continuity verification, and insulation resistance measurement between center conductor and shield (acceptance criterion: >100 MΩ at 500 VDC). Units that do not pass all criteria are quarantined and returned to the supply chain — they are not offered for sale.

All units are stored in anti-static bags within foam-lined cartons, with the cable coiled to the OEM-specified minimum bend radius to prevent dielectric deformation during storage. Shelf life is managed on a first-in, first-out basis.

Export documentation — commercial invoice, packing list, and Certificate of Conformance — is issued for every international shipment. For customers requiring additional documentation such as material test reports or country-of-origin certificates, these are available on request at the time of order placement.

Logistics from Xiamen covers major global destinations: DHL Express and FedEx International Priority services provide 3–5 business day delivery to Europe, North America, Southeast Asia, and the Middle East. For plant shutdown emergencies requiring same-day dispatch, contact us before 14:00 CST to confirm stock availability and arrange priority booking.
