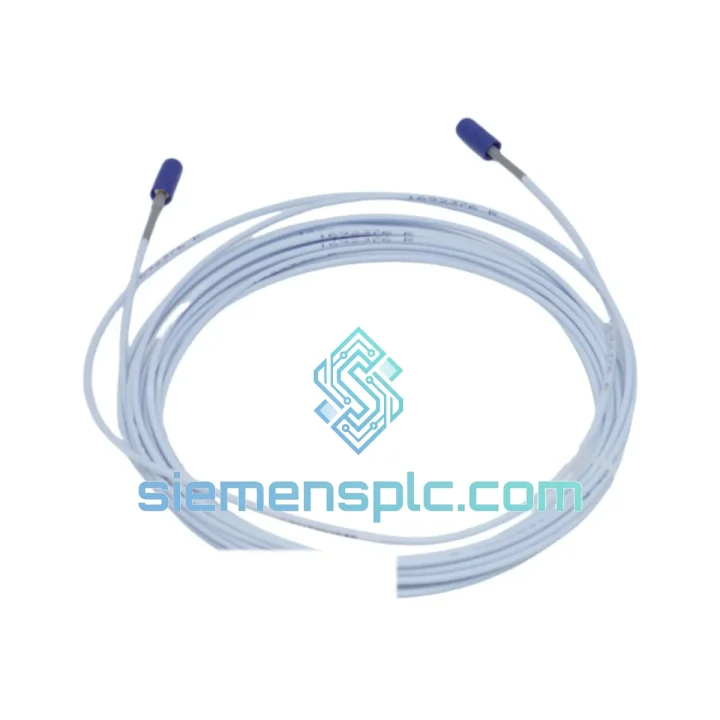

Bently Nevada 330930-060-03-05 Proximity Transducer – 3300 XL Series

Bently Nevada 330930-060-03-05 — Eddy-Current Proximity Transducer for Continuous Machinery Vibration Monitoring

The Bently Nevada 330930-060-03-05 is a 8 mm eddy-current proximity transducer belonging to the 3300 XL series, engineered for non-contact, continuous measurement of radial shaft vibration, axial position, and differential expansion on critical rotating machinery. Operating on the eddy-current induction principle, the transducer generates a high-frequency oscillating magnetic field at its tip; when a conductive target surface enters the sensing field, induced eddy currents attenuate the oscillator amplitude, and the Proximitor® driver converts this attenuation into a calibrated DC voltage output proportional to the gap distance. The result is a measurement chain with DC-to-10 kHz frequency response, zero mechanical wear, and sub-micron displacement resolution — characteristics that make this transducer the reference standard in API 670-compliant machinery protection systems across power generation, oil & gas, and petrochemical industries.

The suffix structure of the part number encodes the physical configuration: 330930 identifies the 8 mm tip diameter transducer family; 060 specifies a 6.0 m integral armored cable; 03 denotes the standard armored cable and connector style; 05 indicates calibration for AISI 4140 steel target material. Each unit ships factory-calibrated as a matched system with its designated extension cable and Proximitor® driver, ensuring the published ±0.5% linearity specification is met at the system level rather than at the component level alone.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330930-060-03-05 transducer operates as the passive sensing element in a three-component measurement chain: transducer → extension cable → Proximitor® driver. Understanding the hardware logic at each stage is essential for correct installation and fault isolation.

Oscillator-Demodulator Architecture: The Proximitor® driver houses a Colpitts-type LC oscillator whose resonant tank circuit is coupled to the transducer coil via the extension cable. The transducer coil itself has a precisely wound inductance value matched to the driver’s oscillator frequency (typically 1.0 MHz for the 8 mm series). When the conductive target approaches the tip, eddy currents induced in the target surface load the coil, reducing the effective Q-factor of the tank circuit and attenuating oscillator amplitude. The demodulator stage rectifies and filters this amplitude-modulated signal into a DC voltage. The linear relationship between gap distance and output voltage is maintained within the 0.25–2.25 mm range, beyond which the response becomes non-linear and the driver output saturates.

EMC Design and Shielding: The integral 6.0 m armored cable uses a triaxial construction — inner conductor, inner shield, outer shield — where the inner shield is driven at the same potential as the center conductor (guard drive) to eliminate cable capacitance effects on the oscillator. The outer armor provides mechanical protection and a low-impedance path to chassis ground, attenuating common-mode electromagnetic interference from variable-frequency drives, high-voltage switchgear, and RF sources common in industrial environments. This architecture allows the transducer to maintain measurement integrity in environments with conducted EMI levels up to the limits defined in IEC 61000-4-6.

Target Material Sensitivity: The eddy-current depth of penetration (skin depth) is a function of target material conductivity and permeability. The -05 suffix calibration is optimized for AISI 4140 steel (relative permeability ~200, conductivity ~4.0 MS/m). Shafts manufactured from non-standard alloys — titanium, Inconel 718, duplex stainless — exhibit different skin depths, shifting the effective scale factor by up to ±15%. For such applications, a target material calibration (TMC) must be performed, where the Proximitor® driver is recalibrated against a sample of the actual shaft material. Failure to perform TMC on non-standard alloys introduces a systematic bias error that cannot be corrected by software scaling alone.

Cable Impedance Matching: The 6.0 m cable length is not arbitrary. The Proximitor® driver’s oscillator is designed to drive a specific cable capacitance range. Substituting a cable of different length or construction changes the total capacitance presented to the oscillator, shifting the resonant frequency and altering the scale factor. Bently Nevada’s matched-system calibration approach — where transducer, extension cable, and driver are calibrated together as a set — eliminates this variable. Field replacement of any single component requires re-verification of the system scale factor against a known gap standard.

System Integration Benefits

• API 670 5th Edition Compliance: The 330930-060-03-05 meets all transducer performance requirements of API 670, the industry standard for machinery protection systems, enabling direct use in safety-instrumented and machinery protection applications without additional qualification testing.
• DC-Coupled Measurement Path: The DC-to-10 kHz frequency response preserves both static position (DC component) and dynamic vibration (AC component) in a single output signal, eliminating the need for separate position and vibration sensors on the same measurement plane.
• Deterministic Latency: As a passive analog sensor, the 330930-060-03-05 introduces no digital processing latency. The analog output is available at the Proximitor® driver terminals within the propagation delay of the cable — typically under 10 ns — ensuring that the 3500 Series monitor’s analog input card receives the signal within its specified acquisition window for deterministic alarm response.
• Compatibility with 3500 Series Monitors: The –1 to –21 VDC output range is directly compatible with the Bently Nevada 3500/40M and 3500/42M monitor input cards, which accept the standard 3300 XL scale factor without requiring input scaling configuration.
• Diagnostic Transparency via Gap Voltage: The DC gap voltage provides a continuous, real-time indicator of the physical air gap between the transducer tip and the shaft. Operators can monitor this value to detect shaft centerline migration, bearing wear, and thermal growth without interrupting production — a capability that supports condition-based maintenance strategies.
• Non-Contact Operation Eliminates Wear: Because the sensing mechanism involves no physical contact with the rotating shaft, the transducer has no inherent wear mechanism. Mean time between failures (MTBF) for the 3300 XL series in normal operating conditions exceeds 100,000 hours, reducing scheduled replacement intervals and associated maintenance labor.
• Hazardous Area Certification: ATEX and IECEx certifications allow installation in Zone 1 and Zone 2 classified areas without additional barriers or enclosures in most configurations, simplifying installation design in refineries, offshore platforms, and chemical processing facilities.
• System 1 Software Integration: The analog output is fully compatible with Bently Nevada System 1 condition monitoring software via the 3500 Series data acquisition path, enabling trend analysis, waveform capture, and alarm management within a unified plant asset management framework.

Quality Assurance & Global Logistics

Every 330930-060-03-05 unit supplied by siemensplc.com is sourced through verified distribution channels with full traceability to Bently Nevada / Baker Hughes manufacturing records. Pre-shipment inspection covers output voltage verification at three known gap distances, cable continuity and insulation resistance, connector integrity, and serial number cross-check against manufacturer records. Certificate of Conformance (COC) and factory test reports are available upon request for each unit.

Shipments originate from our warehouse in Xiamen, China, a major international logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Standard export documentation — commercial invoice, packing list, certificate of origin — is prepared for every international shipment. For customers requiring DDP (Delivered Duty Paid) terms, we coordinate customs clearance and import duty payment in the destination country. In-stock units are dispatched within 1–2 business days of order confirmation. Expedited same-day dispatch is available for orders placed before 14:00 CST.

All units are packaged in ESD-safe, moisture-proof enclosures with foam-lined outer cartons rated for international air freight handling. The 12-month warranty covers manufacturing defects and calibration drift beyond the published specification; warranty claims are processed with a target turnaround of 5 business days including return logistics coordination.
