Bently Nevada 330930-065-01-00 Extension Cable – 3300 XL Series

Bently Nevada 330930-065-01-00 Extension Cable – Signal Integrity in the 3300 XL Proximity Measurement Chain

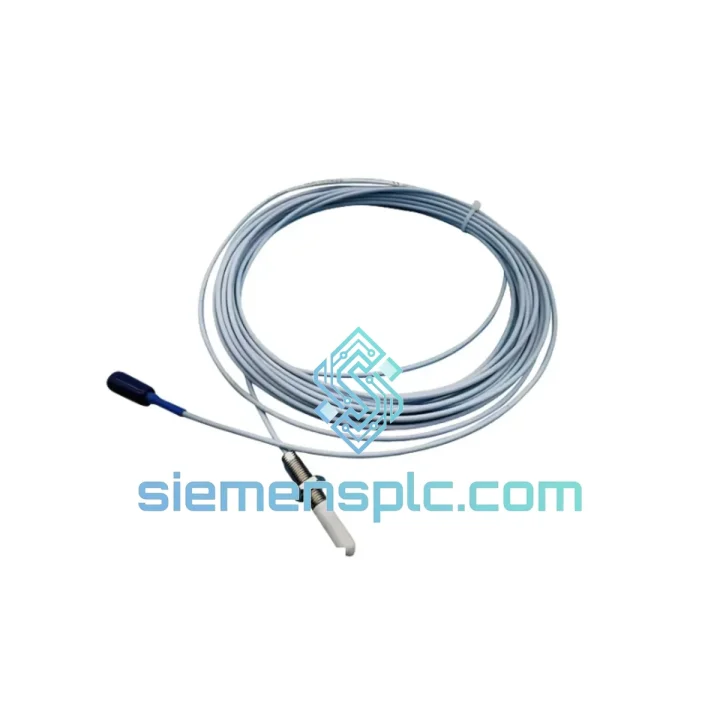

The Bently Nevada 330930-065-01-00 is a factory-terminated, 6.5-metre (21.3 ft) standard extension cable engineered exclusively for the 3300 XL 8 mm proximity measurement system. Within the three-component eddy-current measurement chain — proximity probe → extension cable → Proximitor® sensor — this cable carries the raw oscillator signal from the probe tip to the Proximitor’s demodulation circuitry. Any impedance mismatch, dielectric inconsistency, or connector contact resistance in this link directly corrupts the gap voltage output and, by extension, the displacement reading fed to the protection monitor. The 330930-065-01-00 is manufactured to eliminate those variables.

Bently Nevada’s 3300 XL system is calibrated as a matched set. The extension cable is not a generic coaxial assembly; it is a precision component with a defined characteristic impedance, a controlled dielectric constant, and factory-verified connector terminations. Substituting an unqualified cable — even one with nominally identical dimensions — introduces systematic measurement error that cannot be corrected by monitor calibration alone. This part number specifies the 6.5 m length variant, which, when paired with a 5 m integral-cable probe, yields a total system cable length of 11.5 m — a standard calibrated combination for installations where the Proximitor must be mounted at distance from the machine casing.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The eddy-current proximity measurement principle depends on a stable, high-frequency oscillator circuit — typically operating between 1.0 MHz and 1.5 MHz for 8 mm probes — whose resonant frequency is perturbed by the conductive target (shaft) at the probe tip. The extension cable is the transmission line connecting the probe’s coil-and-oscillator assembly to the Proximitor’s demodulation and linearization electronics. From a signal-integrity standpoint, three physical parameters of the cable govern measurement accuracy:

1. Characteristic Impedance Consistency: The 330930-065-01-00 maintains a tightly controlled dielectric geometry along its full 6.5 m length. Impedance discontinuities — caused by variations in conductor diameter, dielectric density, or connector contact geometry — produce reflections on the transmission line that superimpose on the carrier signal. At 1.0–1.5 MHz, even a 5 Ω impedance step at a connector junction can introduce a measurable DC offset error at the Proximitor output. Factory termination eliminates the field-assembly variables that cause these discontinuities.

2. EMC Shielding Architecture: The braided copper shield with >95% optical coverage provides a continuous Faraday enclosure around the signal conductor. In turbine and compressor environments, the cable routing passes through junction boxes and cable trays shared with high-current motor leads, variable-frequency drive output cables, and ignition systems — all of which radiate broadband electromagnetic interference. The shield, when properly grounded at the Proximitor end only (single-point grounding per Bently Nevada installation practice), attenuates induced common-mode noise to levels below the monitor’s noise floor specification.

3. Thermal and Chemical Stability: The fluoropolymer jacket maintains its dielectric constant across the full –40 °C to +85 °C operating range. Dielectric constant drift with temperature directly shifts the cable’s electrical length, which in a matched-length calibration system translates to a calibration offset. The PTFE-compatible jacket also resists absorption of turbine oils and hydraulic fluids — fluid ingress into the dielectric is a known failure mode in non-rated cables that causes progressive sensitivity drift over months of operation.

Connector Termination Integrity: Factory termination ensures that the center conductor is soldered (not crimped) to the connector pin with controlled solder volume, and that the connector body is mechanically secured to the shield braid with defined torque. Field-terminated connectors are a statistically significant source of intermittent faults in proximity measurement chains — a fault mode that is particularly difficult to diagnose because it manifests as random noise spikes rather than a steady-state offset.

System Integration Benefits

• Zero-Recalibration Replacement: As a factory-matched component, the 330930-065-01-00 can be swapped into an existing 3300 XL chain without recalibrating the Proximitor or the monitor — the calibration is embedded in the matched-length, matched-impedance design. This reduces planned maintenance window duration by eliminating the calibration verification step.
• Deterministic Gap Voltage Output: The controlled electrical length ensures that the Proximitor’s output voltage-to-gap relationship remains within the published ±1% linearity specification across the full measurement range, supporting reliable alarm and trip setpoint integrity in API 670-compliant protection systems.
• Reduced Diagnostic Ambiguity: When a proximity measurement chain develops a fault, the extension cable is the first component suspected. Using a genuine OEM cable with documented impedance characteristics allows maintenance engineers to isolate faults by substitution with confidence — a non-OEM cable introduces an additional variable that complicates root-cause analysis.
• Compatibility with Hazardous Area Installations: The cable’s electrical parameters are compatible with Zener barrier and galvanic isolator designs used in ATEX/IECEx Zone 1 and Zone 2 installations. The defined capacitance and inductance per unit length are required inputs for intrinsic safety calculations.
• Long-Term Sensitivity Stability: The fluoropolymer dielectric does not absorb moisture or process fluids over time, preserving the cable’s electrical length and the system’s sensitivity (mV/mil or mV/µm) throughout the asset’s maintenance interval — typically 2–4 years between turnarounds in process plant applications.
• Compatibility with 3500 Series Monitors: The 3300 XL measurement chain (probe + extension cable + Proximitor) is fully compatible with Bently Nevada 3500 series rack-based protection monitors, enabling system upgrades from 3300 to 3500 monitor hardware without replacing field-installed cables and probes.
• Reduced Spare Parts Inventory Complexity: Stocking the 330930-065-01-00 as a standard spare covers the most common 6.5 m extension cable requirement across multiple machine trains, reducing the number of unique part numbers required in the maintenance storeroom.
• API 670 Compliance Support: API 670 (5th Edition) requires that proximity measurement systems use manufacturer-specified, matched-length cable assemblies. Using the 330930-065-01-00 directly satisfies this requirement and supports compliance documentation for insurance and regulatory audits.

Quality Assurance & Global Logistics

Every 330930-065-01-00 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full traceability to Bently Nevada (Baker Hughes) manufacturing. Each cable undergoes incoming inspection covering connector mechanical integrity, jacket continuity, and shield termination quality before entering our inventory. Units are stored in anti-static, humidity-controlled packaging to prevent connector oxidation and dielectric moisture absorption during storage.

Shipments originate from our warehouse in Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment. For customers in the EU, Middle East, and Southeast Asia, typical transit times are 3–7 business days via express courier. Air freight consolidation is available for multi-line orders. All units ship with a 12-month warranty against manufacturing defects and DOA conditions, with direct technical support from our engineering team.
