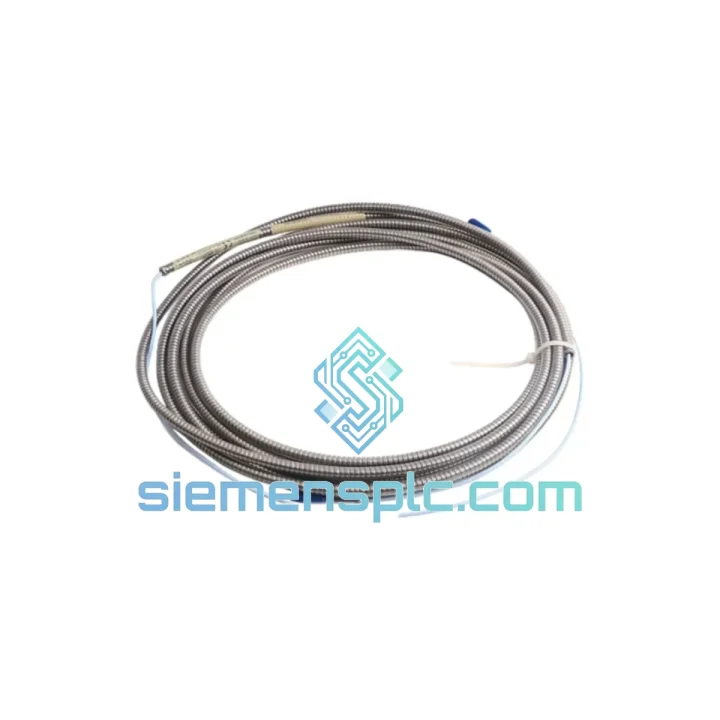

Bently Nevada 330930-065-01-CN Proximity Extension Cable – 3300 NSv

330930-065-01-CN: Signal Chain Integrity in the 3300 NSv Eddy-Current Measurement Loop

In a non-contacting vibration measurement system, the extension cable is not a passive conductor — it is an active participant in the eddy-current measurement chain. The Bently Nevada 330930-065-01-CN is a 6.5-meter coaxial extension cable manufactured to OEM specification for the 3300 NSv Proximity Transducer System. Its function is to transmit the RF oscillator signal from the Proximitor® sensor to the proximity probe tip, and to return the demodulated DC gap voltage back to the monitor — all while preserving the calibrated electrical characteristics that define measurement accuracy.

The 3300 NSv system operates on the eddy-current principle: the Proximitor® sensor drives a high-frequency oscillator (typically 1.0 MHz nominal) through the cable to the probe coil. As the conductive target (shaft) approaches the probe tip, eddy currents are induced on the target surface, loading the oscillator and reducing its amplitude. The Proximitor® demodulates this amplitude change into a DC voltage output, nominally –24 VDC at 200 mil gap, with a scale factor of 200 mV/mil (7.87 V/mm). The extension cable’s distributed capacitance, inductance, and characteristic impedance directly affect oscillator loading — any deviation from the OEM-specified cable parameters shifts the calibration curve and introduces gap measurement error.

The -065 suffix in the part number encodes the 6.5-meter cable length. The -01 designates the standard connector configuration. The CN suffix identifies the China regional variant, which conforms to the same electrical specification as the global variant but is validated for compatibility with CN-suffix Proximitor® sensors and probes deployed in China-market installations. Mixing CN and non-CN suffix components within the same transducer chain is not recommended without re-verification of system calibration.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330930-065-01-CN operates within a three-element transducer chain: proximity probe → extension cable → Proximitor® sensor. Each element contributes a defined electrical load to the oscillator circuit. The extension cable’s primary electrical role is to present a controlled distributed impedance between the probe coil and the Proximitor® oscillator driver stage.

Impedance Matching and Oscillator Stability: The 3300 NSv Proximitor® oscillator is designed to drive a specific cable capacitance load. The 330930-065-01-CN cable is manufactured to a defined capacitance-per-unit-length specification. At 6.5 meters, the total cable capacitance falls within the oscillator’s stable operating window. Substituting a cable with higher distributed capacitance — even of the same physical length — shifts the oscillator’s resonant frequency, alters the demodulation transfer function, and produces a calibration offset that cannot be corrected by the Proximitor®’s internal trim potentiometers alone.

EMC Design: The braided coaxial shield provides continuous ground coverage along the cable run. In turbomachinery installations, the cable is frequently routed through environments with high-intensity electromagnetic fields — variable-frequency drives, high-current bus bars, and ignition systems. The shield’s transfer impedance determines how much of this external field couples into the center conductor. The OEM shield design maintains signal-to-noise ratio at the Proximitor® input, preventing false gap readings caused by induced common-mode noise.

Connector Metallurgy and Contact Resistance: The MIL-spec connectors at both ends of the 330930-065-01-CN are designed for low and stable contact resistance over the cable’s service life. Contact resistance variation in the RF signal path introduces amplitude modulation that the Proximitor® demodulator interprets as gap change. OEM connectors use gold-plated contacts with defined insertion force specifications to maintain contact resistance below the threshold that would produce measurable gap error.

Jacket and Mechanical Integrity: The cable jacket material is selected for resistance to the chemical environment typical of turbomachinery installations — lubricating oil, hydraulic fluid, and cleaning solvents. Jacket degradation that allows fluid ingress into the shield braid increases shield resistance and degrades EMC performance progressively, often producing intermittent noise that is difficult to diagnose without cable substitution.

System Integration Benefits

• Zero Recalibration on Like-for-Like Replacement: Replacing a worn 330930-065-01-CN with an identical OEM part requires no Proximitor® recalibration, provided the probe and Proximitor® are unchanged. The system returns to its original calibration state immediately upon reconnection.
• API 670 Mandatory Compliance: The American Petroleum Institute Standard 670 (Machinery Protection Systems) mandates the use of OEM-specified transducer system components. Using a non-OEM cable in an API 670-certified installation voids the system’s compliance status and may invalidate insurance and regulatory approvals.
• Deterministic Gap Measurement Accuracy: With the correct cable installed, the 3300 NSv system maintains its specified linearity of ±0.5% full scale across the measurement range, supporting reliable alarm and trip setpoint enforcement.
• Compatibility with 3500 Series Monitors: The Proximitor® sensor output (–24 VDC nominal, 200 mV/mil scale factor) is directly compatible with Bently Nevada 3500 Series monitor input cards. The extension cable’s electrical characteristics are part of the calibration chain that defines this output — correct cable selection is prerequisite to correct monitor configuration.
• Reduced Diagnostic Ambiguity: When all transducer chain components are OEM-specified, any deviation in gap voltage output can be attributed to actual shaft displacement or probe/target condition changes, not cable-induced measurement artifacts. This reduces false alarm rates and improves maintenance decision confidence.
• Long-Term Spare Parts Interchangeability: The 330930-065-01-CN part number is a stable OEM reference. Maintaining a spare in inventory ensures that emergency cable replacement can be executed without system recalibration, minimizing unplanned downtime duration.
• CN Variant System Cohesion: In installations where all transducer chain components carry the CN suffix, the 330930-065-01-CN maintains the validated CN-variant system configuration. This is particularly relevant for installations subject to local regulatory inspection or OEM service contracts that specify CN-variant components.
• Thermal Stability Across Operating Range: The cable’s electrical parameters — capacitance, inductance, resistance — are stable across the industrial temperature range. This ensures that gap measurement accuracy is maintained during plant startup (cold conditions) and steady-state operation (elevated ambient temperatures near hot machinery casings).

Quality Assurance & Global Logistics

Every 330930-065-01-CN unit shipped from our Xiamen facility undergoes a structured pre-shipment verification process. Part number markings, date codes, and connector configurations are cross-referenced against Bently Nevada OEM documentation. Connector integrity is verified by visual inspection under magnification. Cable jacket condition is checked for cuts, abrasion, or chemical damage. Units that do not pass inspection are quarantined and not shipped.

Packaging uses anti-static inner wrap, moisture-barrier outer bag, and rigid carton with foam cushioning to protect connector bodies during transit. Each shipment includes a packing list with part number, quantity, and serial/lot reference where available. Certificate of Conformance (CoC) and inspection report are available upon request for critical plant applications.

From Xiamen, China, we ship globally via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, and Certificate of Origin — is prepared for every international shipment. For time-critical plant shutdowns, same-day dispatch is available for in-stock items when orders are confirmed before 14:00 CST. Typical transit times: Southeast Asia 2–3 days, Europe 3–5 days, Americas 4–6 days.
