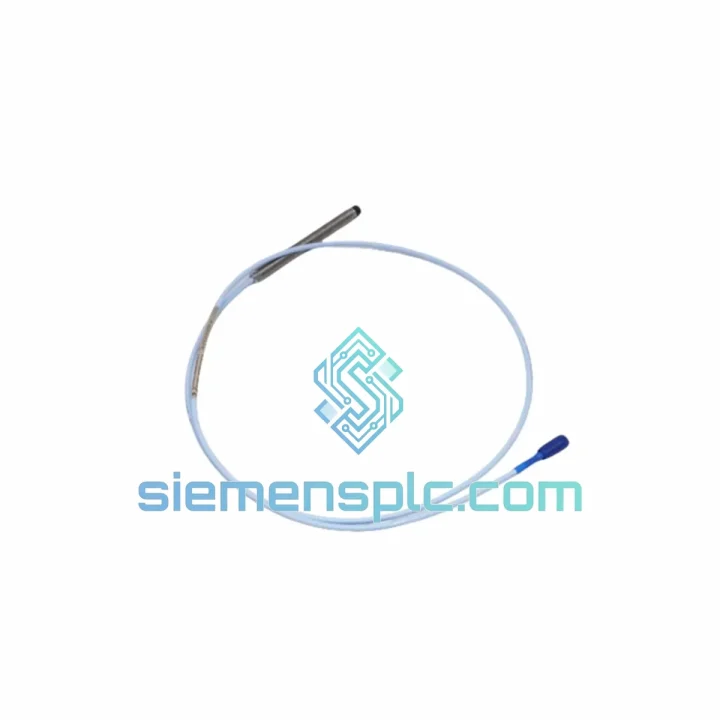

Bently Nevada 330930-085-01-05 Proximity Extension Cable – 3300 XL Series

Bently Nevada 330930-085-01-05 Coaxial Extension Cable — Signal Integrity in the 3300 XL Proximity Measurement Chain

The 330930-085-01-05 is an 8.5-metre armored coaxial extension cable manufactured by Bently Nevada (a Baker Hughes company) for exclusive use within the 3300 XL Proximitor measurement system. Its function within the control loop is precise and non-negotiable: it bridges the eddy-current probe and the Proximitor driver, completing the calibrated impedance chain that converts shaft displacement into a linear DC voltage signal readable by the 3500 series monitoring rack. Without a correctly specified extension cable, the system’s scale factor — nominally −7.87 V/mm for 8 mm probes — drifts outside the ±0.5% linearity tolerance mandated by API 670, rendering vibration and position data unreliable for machinery protection decisions.

In rotating equipment protection, the extension cable is not a passive conductor. It is an active element of a tuned RF circuit operating at approximately 1.0 MHz. The 330930-085-01-05 maintains the characteristic impedance and capacitance per unit length that Bently Nevada’s factory calibration assumes. Substituting a generic coaxial cable — even one with nominally similar specifications — introduces impedance mismatch, alters the oscillator loading on the Proximitor driver, and shifts the gap voltage curve in ways that cannot be corrected through field adjustment alone.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL proximity measurement system operates on the eddy-current principle: the probe tip generates a high-frequency electromagnetic field; as a conductive target (shaft) approaches, eddy currents are induced, loading the oscillator circuit and producing a proportional change in output voltage. The extension cable is the transmission line connecting the probe’s integral coaxial cable to the Proximitor driver’s input. Its electrical behavior is governed by three parameters: characteristic impedance (Z₀), capacitance per unit length (C/m), and insertion loss at the oscillator frequency (~1.0 MHz).

The -085 length designation (8.5 m) is not arbitrary. Bently Nevada’s calibration tables are built around a fixed total cable length of 5 m (probe integral) + 8.5 m (extension) = 13.5 m. This total determines the distributed capacitance seen by the Proximitor oscillator. Deviating from this length — even by 0.5 m — shifts the oscillator’s operating point and introduces a measurable offset in the gap voltage curve. Field engineers who have attempted to use shorter or longer cables report scale factor errors of 2–5%, which translates directly to false vibration amplitude readings at the 3500 monitor.

The armored jacket (suffix -05) addresses a separate failure mode: mechanical damage in cable trays, conduit runs, and areas with high foot traffic or equipment movement. The stainless steel braid armor provides crush resistance and prevents the coaxial geometry from being distorted by external compression — a distortion that would alter C/m and corrupt the calibration. The double-shielded inner construction suppresses EMI/RFI ingress from variable-frequency drives (VFDs), high-current bus bars, and adjacent instrumentation cables, all of which are common in the same cable trays as proximity probe wiring in turbomachinery installations.

The MIL-C-17 compatible connectors are factory-terminated and 100% continuity-tested. Field-terminated coaxial connectors on extension cables are a known source of impedance discontinuities and intermittent faults; the factory-terminated 330930-085-01-05 eliminates this failure mode entirely. The connector bodies are machined to maintain coaxial alignment under repeated mating cycles and in environments with vibration levels up to 20 g.

System Integration Benefits

• Preserved Scale Factor Accuracy: The 330930-085-01-05 maintains the −7.87 V/mm scale factor within the ±0.5% tolerance specified in API 670, ensuring that alarm and danger setpoints at the 3500 monitor correspond to actual shaft displacement values without field recalibration.
• Deterministic Signal Latency: The fixed electrical length of the calibrated cable chain ensures consistent signal propagation delay, which is critical for phase-referenced measurements (keyphasor-based orbit plots and 1X/2X vector analysis).
• EMC Compliance in VFD-Dense Environments: Double-shielded construction with ≥95% shield coverage attenuates common-mode noise from VFD switching transients (typically 2–20 kHz fundamental with harmonics to 1 MHz), preventing false vibration spikes at the monitor output.
• Mechanical Integrity Under Continuous Vibration: Armored jacket construction withstands continuous vibration exposure at the cable routing level (up to 20 g per Bently Nevada environmental specifications), preventing fatigue-induced conductor fractures that cause intermittent open-circuit faults — the most difficult fault mode to diagnose in a running machine.
• Zero-Reconfiguration Replacement: Drop-in compatibility with all existing 330930-085-01-05 installations means no firmware parameter changes, no re-ranging of the Proximitor driver, and no recertification of the measurement loop — critical for minimizing planned outage duration.
• API 670 Loop Compliance: When installed as part of the complete 3300 XL chain (330900 probe + 330930-085-01-05 extension + 330180 Proximitor), the measurement loop satisfies API 670 Section 5 requirements for radial vibration and axial position monitoring, supporting machinery protection system certification audits.
• Diagnostic Transparency: The Proximitor driver’s built-in OK relay monitors the gap voltage continuously. A correctly specified extension cable ensures the OK window (typically −2 V to −18 V) is not artificially narrowed by impedance mismatch, preserving the full diagnostic range for gap loss and probe fault detection.
• Long-Term Spare Parts Availability: Sourcing OEM-original 330930-085-01-05 cables through traceable supply channels ensures that replacement units match the original calibration data on file, supporting long-term maintenance records and insurance/regulatory audit requirements for critical rotating equipment.

Quality Assurance & Global Logistics

Every 330930-085-01-05 unit supplied by siemensplc.com is sourced through verified, traceable channels — authorized distributors, OEM surplus programs, and decommissioned asset recovery with full documentation. Before dispatch from our Xiamen, China facility, each cable undergoes a structured inspection protocol:

• Visual inspection of connector bodies, armor jacket, and cable geometry against OEM dimensional drawings
• Connector continuity and shield integrity verification using calibrated test equipment
• Lot traceability documentation cross-referenced against Bently Nevada part number and date codes
• Anti-static packaging with humidity indicator card and desiccant for long-haul air freight
• Certificate of Conformance (CoC) available upon request for all orders

Logistics from Xiamen covers all major industrial markets: DHL Express, FedEx International Priority, and UPS Worldwide Expedited are standard carriers. In-stock units ship within 1–3 business days. Full export documentation — commercial invoice, packing list, Certificate of Origin — is provided for all international shipments. Customs HS code 8544.42 applies for coaxial cable assemblies; our team prepares accurate customs declarations to prevent clearance delays.
