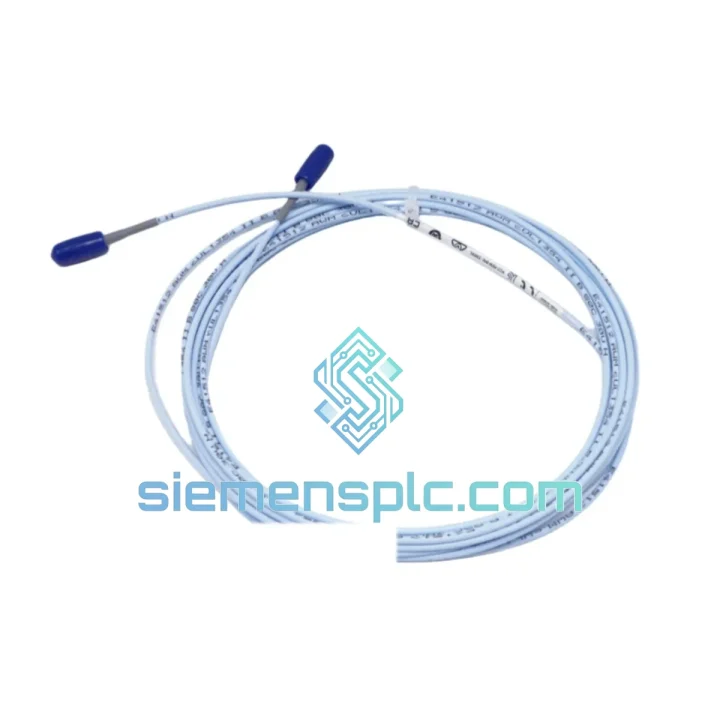

Bently Nevada 3309330-065-04-05 Proximity Probe

3309330-065-04-05 Proximity Probe — Every Hour of Downtime Costs You. We Ship Today.

Your turbine is down. The DCS is throwing Probe Fault or Not OK alarms. Maintenance is standing by. You need a verified Bently Nevada 3309330-065-04-05 in hand — not in three weeks. We stock this probe in Xiamen and dispatch same-day via DHL Express or FedEx International Priority. From our warehouse shelf to your site in 48–72 hours, anywhere on the planet.

This is not a grey-market substitute. The 3309330-065-04-05 is a genuine Bently Nevada 8mm eddy current proximity probe from the 3300 XL Proximity Transducer System, the global benchmark for shaft vibration and position measurement on critical rotating machinery. Cable length encoded in the suffix: -05 = 5 metres. Probe diameter: 8mm standard. Direct drop-in replacement for any existing 3300 XL installation — no recalibration of the Proximitor required when the cable length matches.

⚡ URGENT REQUIREMENT?
Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on turbines and compressors, these are the failure modes and swap pitfalls I see most often with the 3309330-065-04-05:

1. “Not OK” LED on the Proximitor — probe or cable?
Before condemning the probe, disconnect the extension cable at the Proximitor input and measure the probe tip impedance with an LCR meter. A healthy 8mm 3300 XL probe reads approximately 1.0 µH inductance at 1 kHz. If inductance is open or shorted, the probe coil is failed — order the 3309330-065-04-05. If impedance is nominal, suspect the extension cable (330130-xxx) or the Proximitor itself.

2. Cable length must match the system calibration
The 3300 XL system is calibrated as a three-component set: probe + extension cable + Proximitor. The -05 suffix = 5 m probe cable. If your existing installation uses a different probe cable length (e.g., -03 = 3 m), you cannot simply swap in a -05 probe without recalibrating the Proximitor or adjusting the extension cable length to compensate. Confirm your total system cable length before ordering.

3. Target material matters
The 3300 XL eddy current system is factory-calibrated for AISI 4140 steel targets. If your shaft is Inconel, titanium, or another alloy, the sensitivity will deviate from the 7.87 V/mm nominal. Bently Nevada publishes target material correction factors — apply them or request a material-specific calibration from the OEM.

4. Probe installation torque
Thread the probe into the bracket by hand until snug, then torque to 20–25 N·m maximum. Over-torquing cracks the ceramic tip insert — a common site-level mistake that kills a new probe on first installation. Use a calibrated torque wrench, not an impact driver.

5. Gap setting after installation
Set the probe gap to the midpoint of the linear range: 1.0 mm (40 mil) nominal for the 8mm probe. At this gap, the Proximitor output should read approximately −10 VDC. Verify with a digital voltmeter before closing the bearing housing. If the output is outside −9.5 to −10.5 VDC at 1.0 mm gap, recheck the cable length match and target material.

6. Common fault codes on the 3500 rack
If the probe feeds into a Bently Nevada 3500/40M or 3500/42M monitor, a Channel Not OK status with a solid amber LED typically indicates the probe DC output is outside the monitor’s configured OK limits (usually −2 VDC to −18 VDC). A reading of 0 VDC or −24 VDC means an open or shorted probe circuit respectively. Cross-check with a handheld meter at the field junction box before pulling the monitor card.

Reliability in Harsh Conditions

The 3309330-065-04-05 is built for environments that destroy lesser sensors. The probe body is machined from 316 stainless steel, providing resistance to the hydrocarbon condensates, lube oil mist, and process gas atmospheres common in compressor trains and steam turbine bearing pedestals. The ceramic-filled epoxy tip withstands continuous exposure to temperatures up to +177 °C — well within the bearing housing temperatures seen on high-speed turbomachinery.

The integral coaxial cable uses a fluoropolymer (PTFE) jacket rated for the same temperature range, with a braid shield that rejects the high-frequency electrical noise generated by VFDs, arc welders, and adjacent motor starters on the same skid. In offshore and coastal installations, the stainless housing and sealed connector interface resist salt-fog corrosion per IEC 60068-2-52.

Vibration endurance: the probe assembly is qualified to withstand 20 g sinusoidal vibration across 10–2000 Hz per IEC 60068-2-6 — meaning the sensor itself will not generate false vibration signals even when mounted on a structurally resonant bracket. This is a critical distinction from lower-grade proximity sensors that self-excite and corrupt the very data they are supposed to measure.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the most connected export ports in Asia, with direct DHL and FedEx gateway access. Here is how a typical urgent order moves:

Day 0 (Order confirmed before 14:00 CST): Stock verified, export documentation prepared — commercial invoice, packing list, HS code 9031.80 (precision measuring instruments), country of origin certificate. Anti-static foam packaging applied, outer carton sealed and labelled.

Day 0 (Evening): Shipment handed to DHL Express or FedEx International Priority at Xiamen gateway. Tracking number issued and emailed within 2 hours of pickup.

Day 1–2: Transit through Hong Kong or Shanghai hub. Customs clearance handled by the carrier’s brokerage team. For destinations in the EU, Middle East, and Southeast Asia, delivery typically completes within this window.

Day 2–3: Delivery to site in North America, Australia, and remote locations. For truly critical shutdowns, we can arrange hand-carry courier service to any major international airport — contact us directly to arrange.

All shipments include full export compliance documentation. We do not ship to sanctioned destinations. For orders requiring an import permit or specific customs commodity codes, contact us before placing the order and we will coordinate with your logistics team.
