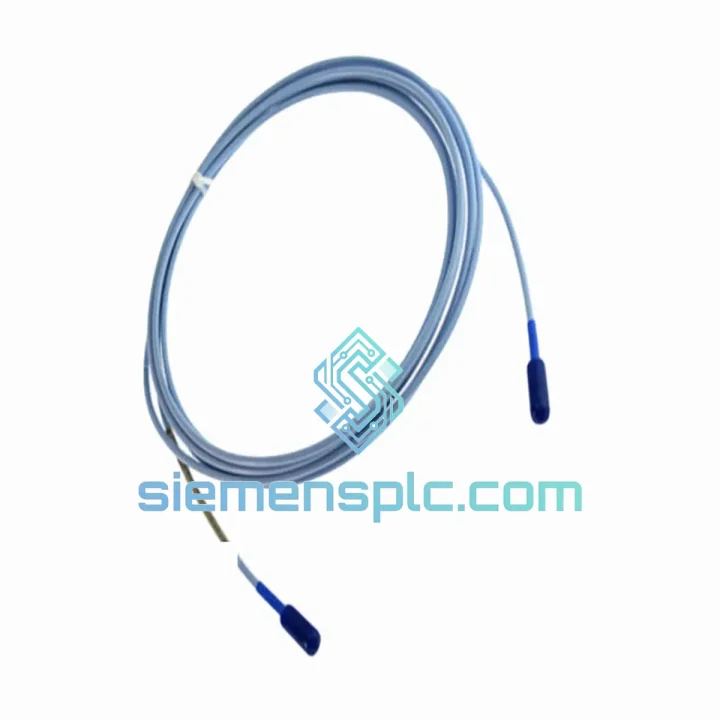

Bently Nevada 3330130-045-02-00 Extension Cable — Signal Integrity in the 3300 XL Proximity Transducer Loop

In a machine protection architecture built around eddy-current proximity sensing, the extension cable is not a passive conductor — it is a calibrated electrical component. The Bently Nevada 3330130-045-02-00 Extension Cable occupies the signal path between the proximity probe tip and the proximitor/driver module, and its characteristic impedance, capacitance per unit length, and shielding geometry are all factored into the system’s calibration curve. Substituting an out-of-specification cable shifts the gap voltage-to-displacement transfer function, introducing measurement error that cannot be corrected at the monitor level without full recalibration of the transducer chain.

The 3300 XL Proximity Transducer System operates on the eddy-current principle: a high-frequency oscillator (typically 1 MHz range) drives the probe coil, and the proximitor demodulates the resulting impedance change caused by the conductive target surface. The extension cable must present a defined coaxial impedance — typically 50 Ω characteristic impedance — to preserve the RF signal integrity between probe and driver. Any deviation in cable capacitance or inductance per meter directly alters the oscillator loading, shifting the linear measurement range and sensitivity (mV/mil or V/mm). The 3330130-045-02-00 is manufactured to Bently Nevada’s internal electrical specification, ensuring the assembled transducer system meets the published sensitivity of 200 mV/mil (7.87 V/mm) across the calibrated gap range.

The part number suffix structure encodes the cable length configuration. The -045 segment denotes the nominal cable length in the Bently Nevada coding convention, and the -02-00 suffix identifies the connector and jacket variant. This specificity matters: the total cable length (probe cable + extension cable) must match the proximitor’s calibrated length. Mixing cable lengths from different part number families invalidates the factory calibration and requires field recalibration against a known gap standard — a procedure that demands a calibrated micrometer fixture and a reference oscilloscope, and is impractical during an unplanned outage.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3330130-045-02-00 functions as a transmission line segment within a resonant eddy-current measurement circuit. Three hardware design aspects are worth examining in detail for engineers evaluating this component in a critical machine protection loop.

Coaxial Shielding and EMC Performance: The cable uses a continuous coaxial shield bonded at both connector shells. This geometry provides 360° circumferential shielding, attenuating radiated electromagnetic interference (EMI) from adjacent power cables, variable-frequency drives (VFDs), and motor control centers (MCCs) — all common in turbomachinery installations. The shield is grounded at the proximitor end only (single-point grounding), which prevents shield current loops that would otherwise inject 50/60 Hz noise into the measurement signal. In environments with high common-mode noise, this single-point shield topology maintains signal-to-noise ratios sufficient for API 670-compliant vibration alarm thresholds (typically 25–50 µm pk-pk resolution).

Dielectric Stability and Capacitance Consistency: The cable dielectric material is selected for low dissipation factor (tan δ) and dimensional stability across the operating temperature range. Capacitance per unit length is held to a tight tolerance band — variations beyond ±5% of nominal would shift the proximitor’s oscillator frequency enough to alter the gap-voltage curve slope. This is particularly relevant in high-temperature installations (e.g., steam turbine bearing housings where ambient temperatures can reach 70–80 °C), where inferior dielectrics exhibit capacitance drift that degrades measurement linearity.

Connector Termination Integrity: The BN-standard coaxial connectors are crimped and soldered to the center conductor and shield braid using a controlled process. The connector-to-cable transition is the highest-stress point in the assembly — mechanical vibration at the probe end (which can exceed 50 g in some turbomachinery applications) concentrates fatigue stress at this junction. The 3330130-045-02-00 uses a strain-relief boot geometry that distributes bending loads over a defined length of cable jacket, reducing the peak stress at the solder joint and extending the fatigue life of the termination.

System Integration Benefits

The following eight points describe how the 3330130-045-02-00 contributes to deterministic real-time response and diagnostic transparency in a machine protection system:

• Preserved Calibration Traceability: Using the OEM-specified extension cable maintains the factory calibration chain from probe tip to monitor input, ensuring that alarm and danger setpoints correspond to actual shaft displacement values without field-correction offsets.
• API 670 Compliance Retention: The 3300 XL system is widely specified to API 670 in oil & gas and power generation contracts. Substituting non-OEM cables can void API 670 compliance certification, creating liability exposure during insurance audits and plant acceptance tests.
• Deterministic Frequency Response: The cable’s controlled impedance ensures flat frequency response from DC to the upper measurement bandwidth (typically 10 kHz for the 3300 XL system), preserving the fidelity of high-frequency vibration components used for bearing defect detection and sub-synchronous instability analysis.
• Reduced Diagnostic Ambiguity: When a transducer chain uses all OEM-specified components, any deviation in the gap voltage baseline can be attributed to a physical change at the machine (shaft position shift, bearing wear) rather than cable parameter drift — improving diagnostic confidence during condition monitoring reviews.
• Plug-Compatible Replacement: Identical connector geometry and cable OD to the original equipment eliminates the need for field modification of cable glands, conduit fittings, or junction box entries — reducing maintenance time from hours to minutes during planned outages.
• Compatibility with 3500 Series Monitors: The 3330130-045-02-00 is compatible with Bently Nevada 3500 Series Machinery Protection System monitors when used with the appropriate 3300 XL probe and proximitor, enabling system upgrades without replacing the entire transducer chain.
• Thermal Cycling Resistance: The cable jacket and connector materials are qualified for repeated thermal cycling between cold startup conditions and steady-state operating temperatures, maintaining electrical continuity and shielding effectiveness over the equipment’s service life.
• Inventory Standardization: The 3330130-045-02-00 is a widely stocked part number across the global Bently Nevada installed base, enabling plant maintenance teams to standardize their spare parts inventory and reduce the number of unique cable part numbers held in the warehouse.

Quality Assurance & Global Logistics

Every unit of the 3330130-045-02-00 dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Electrical continuity is verified across the center conductor and shield braid. Connector shell integrity and locking mechanism function are checked manually. Cable jacket is inspected for cuts, abrasion, or deformation that could compromise the dielectric. Each shipment is accompanied by a packing list and, where available, a certificate of conformance referencing the part number and lot traceability data.

Packaging uses anti-static inner wrap and moisture-barrier outer carton, with foam cushioning at the connector ends to prevent impact damage during air freight handling. We ship via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. For large-volume orders or project-based procurement, sea freight consolidation is available with full export documentation including commercial invoice, packing list, and certificate of origin.

Our 12-month warranty covers manufacturing defects and electrical non-conformance. If a unit is found non-conforming upon receipt or during installation, we arrange replacement or credit within the warranty period. Our technical team — with direct experience in Bently Nevada 3300 and 3500 series systems — is available to support installation verification and system commissioning queries.
