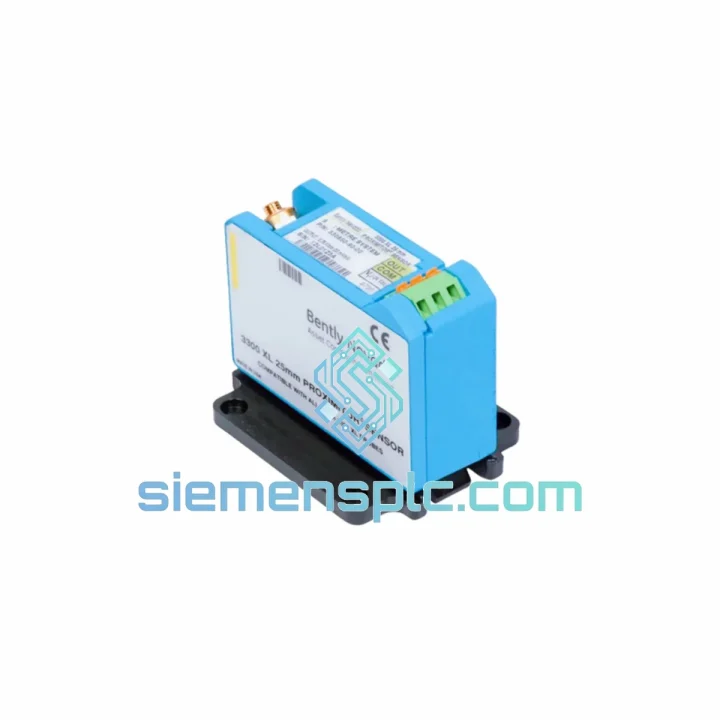

Bently Nevada 3330850-91-00 — Eddy Current Proximity Sensor for Rotating Machinery Protection

The Bently Nevada 3330850-91-00 is a non-contact eddy current proximity transducer from the 3300 XL Proximity Transducer System, engineered for continuous, high-resolution measurement of shaft radial vibration, axial position, and differential expansion in critical rotating machinery. This unit is the 9-metre extension cable configuration (-91-00 suffix), designed for installations where the Proximitor® sensor must be mounted remotely from the probe tip — a common requirement in high-temperature turbine pedestals and compressor casings where ambient conditions exceed the Proximitor’s rated envelope.

In a machinery protection architecture, the 3330850-91-00 occupies the first stage of the signal chain: it converts mechanical displacement into a proportional DC voltage at -18 VDC nominal scale factor, which is then conditioned by the matched 3300 XL Proximitor® and fed into the Bently Nevada 3500 Series rack for alarm, trip, and trending logic. The accuracy of every downstream decision — from vibration alarm setpoints to automatic turbine trip — depends entirely on the dimensional and electrical integrity of this probe-cable assembly.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 3330850-91-00 is grounded in Faraday’s law of electromagnetic induction. The probe tip contains a precision-wound coil driven by a high-frequency oscillator (typically 1.0 MHz) housed within the matched Proximitor® sensor. When the coil is brought within proximity of a conductive target, eddy currents are induced on the target surface. These eddy currents create a counter-magnetic field that loads the oscillator circuit, reducing its amplitude in direct proportion to the gap distance between probe tip and target surface.

EMC Design: The 3300 XL system employs a triaxial cable architecture — inner conductor (signal), inner shield (driven guard), and outer shield (ground). The driven guard is maintained at the same potential as the inner conductor by the Proximitor’s buffer amplifier, which eliminates parasitic capacitance between signal and ground across the full 9-metre cable run. This is critical in turbine environments where cable routing passes through high-voltage ignition zones and variable-frequency drive (VFD) cabinets generating broadband EMI from 2 kHz to 150 kHz. Without the driven guard, capacitive coupling at these frequencies would introduce measurement errors exceeding 50 µm — sufficient to mask early-stage bearing wear signatures.

Thermal Stability: The probe coil is wound on a ceramic bobbin with a controlled thermal expansion coefficient matched to the 316 stainless steel housing. This minimizes thermally induced dimensional changes in the coil geometry, which would otherwise shift the scale factor as probe tip temperature cycles between cold startup (-35°C) and steady-state operation (+150°C in steam turbine pedestals). The result is a scale factor drift of less than ±1% across the full operating temperature range — a specification that generic eddy current probes rarely achieve.

Target Material Correction: The eddy current penetration depth is a function of target material conductivity and permeability. The 3300 XL system is calibrated against AISI 4140 steel (the industry standard for turbine shaft material). For shafts manufactured from 17-4 PH stainless, Inconel 718, or titanium alloys, Bently Nevada publishes material correction factors that must be applied to the Proximitor’s output scaling. Failure to apply these corrections introduces a systematic bias error of 5–25% depending on alloy composition — a common root cause of nuisance trips during commissioning of non-standard shaft materials.

Frequency Response Architecture: The DC-to-10,000 Hz flat frequency response is achieved through careful impedance matching between the probe coil (typically 1.5–2.5 µH inductance), the extension cable (9 m of matched coaxial, approximately 150 pF total capacitance), and the Proximitor’s input impedance. The system is designed as a matched set — substituting a non-OEM extension cable of different characteristic impedance will introduce resonance peaks within the measurement bandwidth, producing false high-frequency vibration readings that can trigger spurious machinery trips.

System Integration Benefits

• Deterministic DC output: The -18 VDC nominal output is a true DC-coupled signal with no phase shift from DC to 10 kHz, enabling the 3500 rack’s DSP to perform accurate 1X/2X vector analysis and synchronous averaging without phase correction algorithms.
• Direct 3500 rack compatibility: The 3330850-91-00 is a certified matched component for the Bently Nevada 3500/42M Proximitor I/O module. No signal conditioning adapters or impedance matching networks are required — the probe plugs directly into the field wiring terminal block.
• Diagnostic transparency via System 1: When connected to a Bently Nevada System 1 condition monitoring platform, the probe’s gap voltage is continuously logged alongside vibration amplitude and phase. A slow drift in gap voltage (e.g., -0.5 V/month) provides early warning of shaft centerline migration due to bearing wear — detectable weeks before vibration amplitude thresholds are breached.
• Redundant probe support: The 3500/42M module supports dual-probe configurations on a single channel for safety-critical applications. The 3330850-91-00 can be deployed as either the primary or redundant sensor in a 1oo2 (one-out-of-two) voting architecture, with the rack performing automatic switchover on probe failure without process interruption.
• Zero mechanical loading: Non-contact measurement imposes no mechanical load on the shaft. In high-speed applications (above 10,000 RPM), contact-type sensors introduce gyroscopic and friction effects that distort the vibration signature. The eddy current principle eliminates this error source entirely.
• Intrinsically safe barrier compatibility: The probe-cable-Proximitor system is certified for use with Zener barriers and galvanic isolators in Zone 0/1 hazardous areas. The low-energy oscillator circuit (typically <1.3 W) satisfies the entity parameters for most IS barrier designs without requiring special approval.
• Long-term calibration stability: The ceramic-wound coil construction maintains calibration within ±1% over a 5-year service interval under continuous operation, reducing the frequency of mandatory calibration shutdowns compared to piezoelectric or strain-gauge alternatives.
• Interchangeability within the 3300 XL ecosystem: All 3300 XL 8 mm probes share a common thread specification (M10 × 1.0) and mounting collar geometry, allowing field replacement without re-machining the probe holder or adjusting the mounting bracket — a significant advantage during unplanned maintenance windows where machine downtime cost is measured in thousands of dollars per hour.
