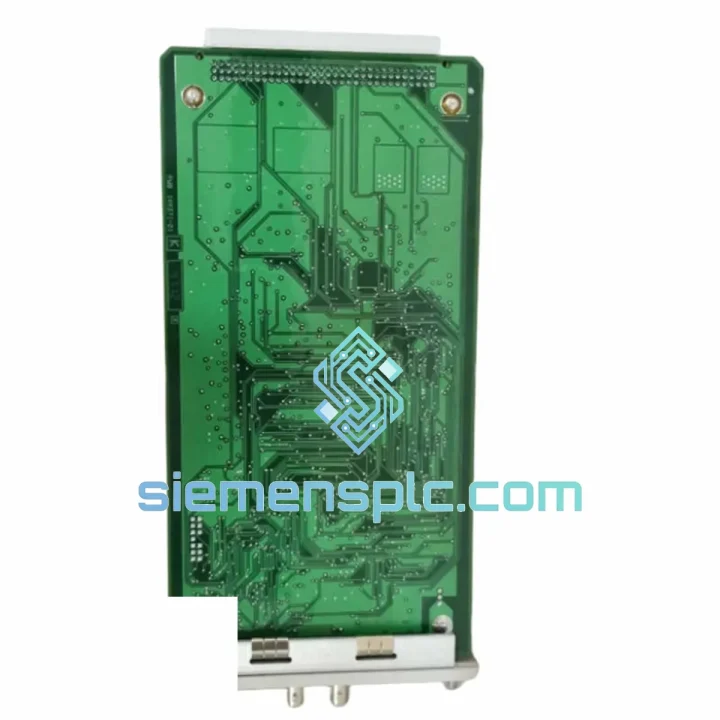

Bently Nevada 3500/25-126398-01H Transducer I/O Module

3500/25-126398-01H: Your Line Is Down — This Card Ships Today

A tripped 3500 rack with a dead I/O module is not a maintenance event. It is a production crisis. Every minute the compressor, turbine, or critical rotating machine stays offline, the losses compound — lost throughput, contractual penalties, and the kind of pressure that turns a shift supervisor’s radio into a weapon. The Bently Nevada 3500/25-126398-01H transducer I/O module is in stock at our Xiamen warehouse right now. Order confirmed before 14:00 CST and it leaves today. That is the only metric that matters when your plant is down.

This is a 100% original Bently Nevada unit — not a remanufactured substitute, not a grey-market pull from decommissioned equipment. Hardware revision H is the current production build, incorporating all engineering change notices issued against the 3500/25 platform. ESD-safe packaging, controlled-environment storage, and same-day export documentation are standard. We do not ship modules that have been sitting in uncontrolled surplus conditions. When the card goes into a safety-critical rack, provenance matters.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on 3500 racks teaches you one thing fast: most replacement jobs fail not because the new card is wrong, but because the swap procedure skips steps that look optional and aren’t. Here is what actually matters on the floor.

Step 1 — Confirm the fault is the I/O module, not the field wiring. Before you pull anything, open System 1 and check for channel-level fault flags. A single-channel fault with healthy adjacent channels is almost never the I/O card — it is a broken shield, corroded terminal, or a failed transducer. A module-level Not OK LED, or a rack-wide I/O fault with no field wiring changes, is your real indicator to swap the 3500/25.

Step 2 — Inhibit the slot before extraction. The 3500 system supports hot-swap at the slot level on most rack configurations. Use the slot inhibit function in System 1 before you touch the card. Pulling a live card without inhibiting the slot can trigger spurious trips on adjacent monitor channels — exactly what you do not need during an already-stressful maintenance window. If your rack configuration does not support hot-swap, coordinate a controlled shutdown of the affected rack section.

Step 3 — Verify slot assignment in System 1 before power-up. The 3500/25-126398-01H does not use physical DIP switches or rotary address selectors. Slot addressing is handled automatically by the rack backplane. What you must verify: the physical slot number in the rack matches the slot assignment in your System 1 rack configuration file. If you are inserting into a previously unused slot, add and configure the slot in System 1 before powering up. A module inserted into an unconfigured slot will sit in an unrecognized state — it will not self-configure.

Step 4 — Revision H compatibility check. Revision H is backward-compatible within the 3500 platform. Adjacent I/O slots running earlier revisions will coexist without issue. However, if your System 1 configuration database was built against a specific hardware revision, re-validate channel configuration after insertion. A revision mismatch in the configuration database will not cause a hard fault, but it can produce calibration drift warnings that consume diagnostic time you do not have.

Common fault codes and what they actually mean:

• PWR fault LED on module: Backplane power rail issue. Check the rack power supply module first — the I/O card is the victim, not the cause.
• CH fault / Input Out of Range in System 1: Measure DC bias voltage at the I/O terminal block. Proximity probe bias must read –7 VDC to –18 VDC. Outside this range means a transducer or cable fault, not the module.
• Module Not Responding in System 1: Reseat the card fully. If the fault persists, the backplane connector pins may be oxidized — clean with approved contact cleaner before condemning the module.
• Intermittent channel dropouts under load: Vibration-induced connector fretting. Check rack mounting torque and confirm the card ejector latch is fully engaged.
• Keyphasor channel shows no signal after swap: Verify the Keyphasor transducer gap voltage at the terminal block. The 3500/25 does not regenerate a Keyphasor signal — it passes it through. A missing signal is always upstream of the card.

Post-replacement verification — do not skip this:

• Module OK LED solid green within 30 seconds of power-up
• All channel bias voltages confirmed within transducer specification in System 1
• Rack self-test executed from System 1 — zero new fault flags
• Trip setpoints confirmed (stored in the monitor card, not the I/O module, but verify after any rack disturbance)
• Replaced module serial number and revision logged in plant CMMS

Reliability in Harsh Conditions

The 3500 platform was not engineered for a climate-controlled server room. It was built for the inside of a gas turbine enclosure, a compressor building in a Middle Eastern desert, and an offshore platform where salt air, vibration, and humidity are daily operating conditions. The 3500/25-126398-01H reflects that design mandate without compromise.

The PCB carries factory-applied conformal coating as a standard production feature — not an optional upgrade. This provides continuous protection against condensation, humidity ingress, and airborne contaminants including hydrocarbon vapors and salt mist that are routine in petrochemical and power generation environments. The operating temperature ceiling of +65 °C covers heat-soaked enclosures without forced cooling, which is the real-world condition in a significant percentage of field installations.

Vibration tolerance is structural, not incidental. The card-edge connector and ejector latch system maintains electrical continuity under continuous vibration loads consistent with machinery foundations — the same foundations the 3500 system is monitoring. A protection system that fails due to the vibration it is measuring is not a protection system. Bently Nevada understood this constraint from the first generation of the 3500 platform, and it shows in the mechanical design of every card in the series.

Every unit we dispatch has been stored in controlled-environment warehousing with ESD protection maintained throughout the storage period. Shelf life and storage integrity are not afterthoughts for electronics that go into SIL-rated safety applications. We do not mix surplus pulls with new-stock inventory, and we do not ship units whose storage history we cannot verify.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a tier-one international freight gateway with direct DHL Express and FedEx International Priority lanes to every major industrial region. When your plant is down, the logistics chain is not where you want surprises.

• Same-day dispatch: Orders confirmed before 14:00 CST ship the same business day for in-stock units
• DHL Express Worldwide: Europe 2–3 business days | Middle East 2–4 days | Southeast Asia 1–2 days | Americas 3–5 days
• FedEx International Priority: Available as an alternative carrier on the same transit benchmarks
• Export documentation: Commercial invoice, packing list, and certificate of conformance prepared same day — HS code 8537.10 for customs classification
• Tracking: AWB number provided within 2 hours of dispatch; real-time tracking link sent directly to your procurement contact
• Accurate customs declaration: We declare correctly. No undervaluation, no document shortcuts that create border delays when you can least afford them
• Complex-market experience: India, Brazil, Saudi Arabia — contact us before ordering if your destination has known customs complexity. We know the documentation requirements and can advise on the fastest compliant routing
