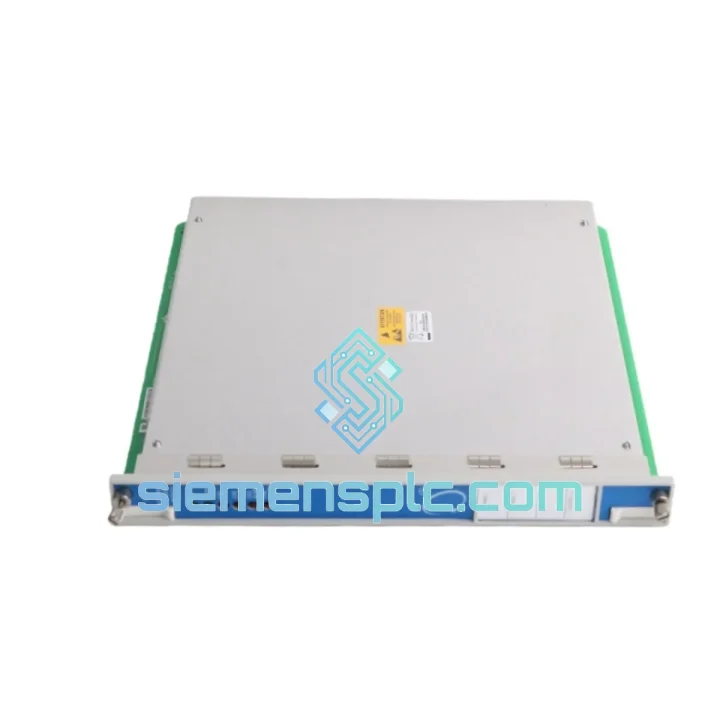

Bently Nevada 3500/32 Relay Output Module

Bently Nevada 3500/32 – 4-Channel Relay Output Module: Stop the Clock on Your Unplanned Shutdown

Every hour your turbine train or compressor sits idle, the losses compound. A failed relay output module in your 3500 MPS rack doesn’t just trip an alarm — it locks out your entire protection logic, forces a manual bypass, and puts your safety case at risk. The Bently Nevada 3500/32 is the exact replacement you need, and we have it on the shelf in Xiamen right now. No sourcing delays. No broker markups. Ship today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery protection systems, these are the failure patterns and swap pitfalls that catch engineers off guard on the 3500/32:

Common Fault Signatures:

• Relay channel stuck in energized state — Most often caused by coil driver IC failure on the module PCB, not a wiring fault. Confirm by swapping the module before chasing field wiring.
• Intermittent relay chatter on Channel 2 or 3 — Typically traced to backplane connector pin oxidation. Clean the rack slot contacts before inserting the replacement module. Use DeoxIT D5 or equivalent.
• All four channels de-energize simultaneously — Points to a loss of rack backplane power to the module slot, not the module itself. Check the 3500/05 power supply and rack fuse before condemning the 3500/32.
• False trip on startup after module swap — The 3500/32 does not store configuration locally; all relay logic (latching vs. non-latching, normally energized vs. de-energized) is held in the rack’s System Monitor. After insertion, use System 1 or the 3500 Rack Configuration Utility to re-push the configuration. Failure to do this is the #1 cause of nuisance trips post-replacement.

Replacement Procedure (Field Summary):

• Notify the control room and obtain a bypass permit before pulling the module — the rack will detect the missing module and may generate a Not OK output.
• The 3500/32 is hot-swappable within the rack architecture, but confirm your site safety procedures allow live-rack module exchange before proceeding.
• Seat the replacement module firmly until the front panel latch clicks. A partially seated module will show intermittent communication faults.
• After insertion, verify the module’s OK LED illuminates solid green within 30 seconds. A flashing OK LED indicates a configuration mismatch — re-download the rack configuration immediately.
• Perform a relay output function test (channel-by-channel) using the rack’s built-in test function before releasing the bypass.

Configuration Notes:

• The 3500/32 has no onboard DIP switches or jumpers for address setting — slot position in the rack determines the module address automatically.
• Relay operating mode (normally energized / normally de-energized) is a software parameter set in the rack configuration, not a hardware setting. Verify this matches your original configuration before releasing to service.
• If replacing a module in a TMR rack, confirm the voting logic configuration is intact after the swap — a single-module replacement in a TMR system can alter the voting outcome if the configuration is not re-validated.

Reliability in Harsh Conditions

The 3500/32 was engineered for environments where consumer-grade electronics fail within weeks. The module’s relay contacts are rated for 5 A resistive loads and are sealed against contamination ingress. The PCB conformal coating provides protection against humidity and condensation — a critical requirement for offshore platform installations and tropical plant environments where relative humidity regularly exceeds 90%.

Vibration tolerance is validated to meet the mechanical requirements of API 670, meaning the module maintains contact integrity on compressor decks and turbine pedestals where structure-borne vibration is continuous. Operating temperature range of 0 °C to +65 °C covers the full spectrum from cold-climate outdoor enclosures to hot process areas without derating.

Units supplied from our Xiamen stock are inspected for physical damage, connector integrity, and relay coil resistance before dispatch. Refurbished units undergo a full functional test cycle simulating rack backplane power and relay actuation across all four channels. We do not ship untested modules.

Global Express Logistics

Our Xiamen warehouse is positioned 15 minutes from Xiamen Gaoqi International Airport, one of South China’s primary air cargo hubs with daily freighter connections to Frankfurt, Dubai, Chicago O’Hare, and Singapore Changi. This geography is deliberate — it exists to serve exactly the kind of urgent replacement scenario you are dealing with right now.

Standard dispatch timeline:

• Order confirmed before 14:00 CST → Same-day handover to DHL Express or FedEx International Priority
• DHL Express transit times: Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days
• FedEx IP transit times: Comparable to DHL; carrier selection based on destination and current capacity

All shipments include commercial invoice, packing list, and country-of-origin documentation. For customers requiring ATA Carnet, CITES exemption letters, or specific customs commodity codes, advise at time of order and we will prepare the documentation set before dispatch. HS Code 8537.10 applies to this module for most jurisdictions.

Track your shipment in real time via the carrier’s portal. We provide the AWB number within 2 hours of handover. If your customs clearance requires a broker, we can recommend established agents in Rotterdam, Houston, and Singapore who handle industrial automation parts regularly.
