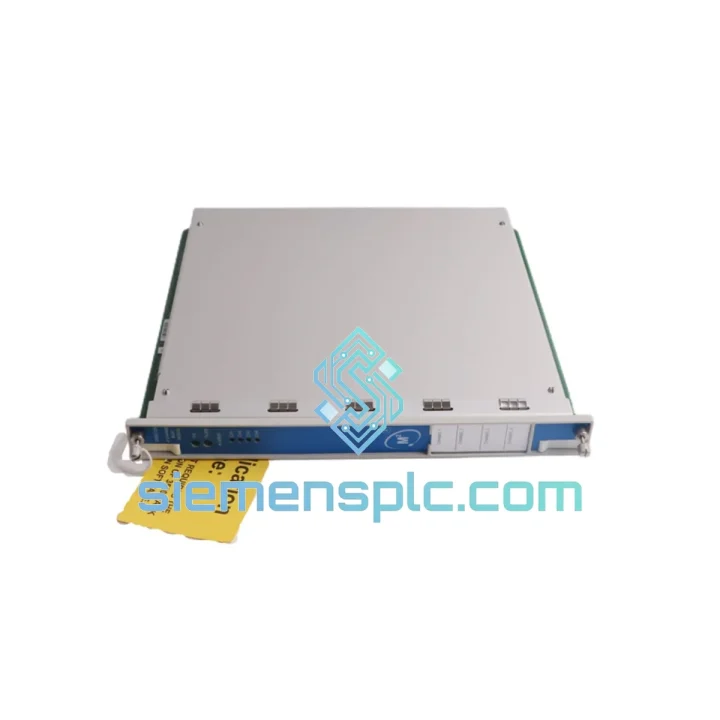

Bently Nevada 3500/32M 149986-02 Relay Output Module – 3500 Series

Bently Nevada 3500/32M 149986-02: Four-Channel Relay Output Module in the 3500 Machinery Protection Architecture

Within a 3500 rack-based protection system, the relay output module is the terminal enforcement layer — the point at which a software alarm state becomes a hardwired contact closure capable of driving a solenoid valve, a DCS digital input, or an annunciator panel. The 3500/32M (Part No. 149986-02) occupies this role with four independently configurable Form C relay channels housed in a single rack slot. Its function is not signal conditioning or measurement; it is deterministic, low-latency conversion of backplane alarm bus states into galvanically isolated dry contacts rated for field-level voltages and currents.

The -02 revision designation reflects a hardware and firmware baseline update over the original 3500/32M production run. Changes in the -02 revision include refined relay driver circuitry for improved contact bounce suppression, an expanded configuration parameter set accessible via Rack Configuration Software (RCS), and updated component sourcing to address long-term availability of relay coil drivers. The backplane interface, slot footprint, and field wiring connector remain identical to prior revisions, making the 149986-02 a direct replacement in existing 3500 rack installations without rack rewiring or configuration migration.

The module’s position in the 3500 signal chain is fixed: it receives alarm state data from the 3500 rack backplane alarm bus — populated by monitor modules such as the 3500/42M Proximitor/Seismic Monitor, the 3500/45 Position Monitor, or the 3500/50 Tachometer — and translates those states into relay contact positions. Each of the four channels can be independently assigned to any monitor alarm tier (Alert, Danger, OK, Bypass) via RCS, and each channel can be independently configured for energize-to-trip or de-energize-to-trip operation. This per-channel configurability allows a single 3500/32M to simultaneously serve Alert annunciation (energize-to-trip, fail-open) and Danger shutdown (de-energize-to-trip, fail-safe) functions without requiring separate relay modules for each logic type.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3500/32M relay output module is built around a relay driver architecture that separates backplane logic voltage from field-side contact voltage at two distinct isolation barriers. The first barrier exists between the 3500 rack backplane alarm bus and the relay coil driver circuit: the alarm state signal is transmitted across an optocoupler stage, preventing any field-side transient from propagating back into the backplane data bus. The second barrier is the relay coil-to-contact isolation itself, rated at 1500 VAC dielectric, which ensures that field wiring faults — including ground faults on the NC or NO contact legs — cannot inject voltage into the module’s logic circuitry.

The relay coil driver in the -02 revision uses a suppression diode across the coil to clamp the inductive kickback voltage generated at relay de-energization. In de-energize-to-trip applications, this kickback event occurs precisely at the moment of alarm — when the coil is intentionally de-energized to open the NC contact and drive the trip circuit. Without adequate suppression, the kickback transient can couple into adjacent backplane signal lines. The -02 revision’s driver design limits this transient to within IEC 61000-4-4 burst immunity thresholds, maintaining backplane signal integrity during the trip event itself.

Contact bounce suppression is addressed at the firmware level: the RCS configuration allows a minimum dwell time parameter that prevents relay re-energization within a defined window after a de-energization event. This is relevant in applications where the monitored machine’s vibration amplitude oscillates near the alarm setpoint — without dwell time enforcement, the relay could cycle rapidly, generating contact wear and spurious signals at the field device input. The -02 firmware baseline extends the configurable dwell time range compared to the original 3500/32M, accommodating applications with slow-responding field devices that require extended contact hold times.

The module’s EMC design follows the 3500 platform’s shielded backplane architecture: the rack backplane provides a continuous ground plane beneath all module slots, and the 3500/32M’s PCB ground is bonded to this plane through the module’s edge connector. This arrangement ensures that high-frequency common-mode noise induced on field wiring — typical in environments with variable-frequency drives, large motor starters, or high-current bus bars — is shunted to chassis ground before reaching the relay coil driver circuit. The result is consistent relay operation in electrically noisy industrial environments without requiring external EMC filtering on the field wiring.

System Integration Benefits

• Universal DCS/PLC Compatibility: Form C dry contacts are natively compatible with digital input cards from all major DCS and PLC vendors — Honeywell Experion, Emerson DeltaV, ABB 800xA, Siemens S7/PCS 7, Yokogawa CENTUM — without signal conditioning modules or interposing relays, reducing panel wiring complexity and potential failure points.
• Fail-Safe Trip Architecture: De-energize-to-trip configuration ensures the relay contact drives the trip circuit on module power loss, backplane communication failure, or relay coil open-circuit fault — not only on a valid alarm state. This satisfies the fail-safe requirement of IEC 61511 for final elements in safety instrumented functions.
• Four Independent Alarm Tier Mapping: A single module slot can simultaneously output Alert, Danger, OK, and Bypass relay states to four separate field destinations, eliminating the need for external relay panels or additional rack slots to cover multi-tier alarm architectures on a single monitored machine train.
• Online Module Replacement: The 3500 rack architecture supports hot-swap of the 3500/32M with the rack energized, provided the associated monitor channels are placed in bypass mode via RCS before extraction. This capability reduces planned maintenance downtime and eliminates the need to shut down the monitored machine for relay module replacement.
• Deterministic Response Time: The <100 ms relay response time from backplane alarm assertion to contact state change is a bounded, deterministic value — not a statistical average. This allows safety engineers to include the relay module’s response time as a fixed term in the safety instrumented function’s response time budget per IEC 61511-1 Clause 11.
• Diagnostic Transparency via Front Panel LEDs: Per-channel LED indicators display real-time relay energization state, allowing field technicians to verify relay status without a laptop or RCS connection. This is particularly useful during commissioning and functional testing, where relay state must be confirmed against the monitor’s alarm output without disturbing field wiring.
• SIL Loop Compatibility: The module’s 1500 VAC contact isolation and documented FMEDA data (available from Bently Nevada) support inclusion in SIL 1 and SIL 2 safety instrumented function assessments per IEC 61508. The relay contact failure modes (contact weld, open-circuit coil) are characterized in the FMEDA, enabling accurate PFD calculation at the system level.
• Backward Compatibility Across 3500 Rack Generations: The 149986-02 part number is compatible with all 3500 rack frame sizes and backplane revisions currently in production and field service. No rack firmware update or backplane hardware modification is required to install the -02 revision in a rack previously running an earlier 3500/32M variant.

Quality Assurance & Global Logistics

Every Bently Nevada 3500/32M 149986-02 unit offered through siemensplc.com is sourced from verified channels — authorized distributor overstock, decommissioned plant upgrades from documented industrial facilities, and certified secondary market suppliers with traceable unit histories. Bently Nevada’s manufacturing quality standard for the 3500 series reflects the platform’s deployment in API 670-governed machinery protection applications, where relay output module reliability directly affects plant safety system integrity.

Prior to listing and shipment, each unit undergoes a structured verification sequence: visual and mechanical inspection against known-good reference units (label format, connector pin plating, PCB markings where accessible); functional bench test in a 3500 test rack with relay channels exercised via Rack Configuration Software and contact continuity confirmed on all four channels; firmware revision verification via System 1 software with the -02 revision confirmed against Bently Nevada’s published revision history; and ESD-safe packaging with anti-static bag, foam insert, and humidity indicator card for long-distance shipments.

Shipments originate from Xiamen, China, a major logistics hub with direct access to DHL, FedEx, and UPS international express networks. Standard transit times are 3–5 business days to Southeast Asia, 5–7 business days to Europe and the Middle East, and 5–8 business days to North America, with expedited options available for shutdown-critical requirements. Full export documentation is provided with each shipment: commercial invoice, packing list, country of origin certificate, and ESD packaging declaration. Technical documentation available upon request includes the functional test report, high-resolution photographs of all six module faces, firmware revision screenshot, original Bently Nevada datasheet (GEK-91485), and certificate of conformance.
