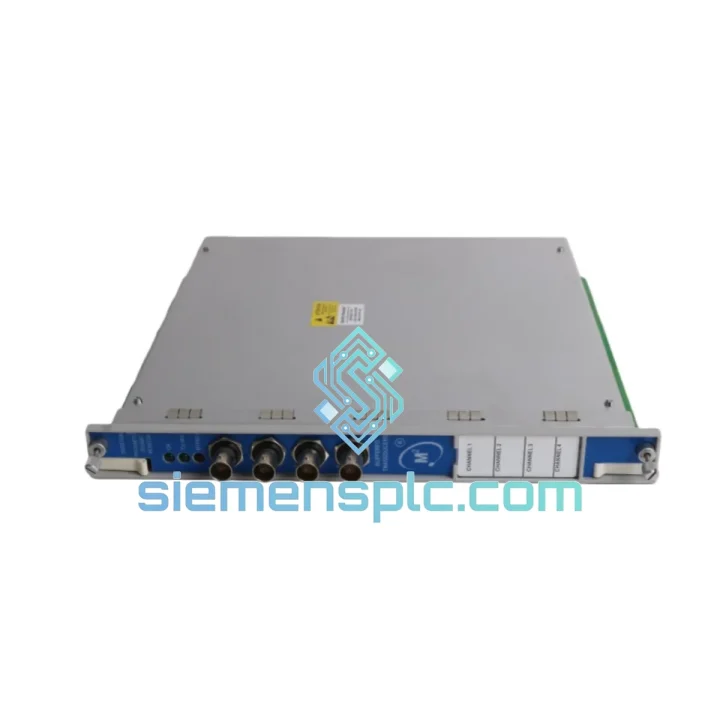

Bently Nevada 3500/42 Relay Output Module – 3500 Series

Bently Nevada 3500/42 – Four-Channel Relay Output Module in the 3500 Machinery Protection Architecture

The Bently Nevada 3500/42 is a four-channel relay output module engineered for deployment within the 3500 Series Machinery Protection System (MPS). Its primary function is to translate continuous analog monitor decisions—derived from vibration, position, speed, or temperature transducers—into discrete, hardwired relay contact closures that drive external alarm annunciators, DCS digital inputs, or safety interlock actuators. In a protection loop where latency between fault detection and actuator response is measured in milliseconds, the 3500/42 occupies the final hardwired output stage, making its contact reliability and switching determinism directly consequential to plant safety.

Each of the four relay channels operates independently, with its own Form C (SPDT) electromechanical contact set. This architecture allows a single module slot to serve four discrete protection functions simultaneously—for example, Alert relay on channel 1, Danger relay on channel 2, and two user-configurable logic outputs on channels 3 and 4. The module receives its logical state commands from the 3500 rack backplane via the internal communication bus, eliminating field wiring between monitor modules and relay outputs and reducing the probability of wiring-induced faults.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3500/42 relay output module is built around a backplane-driven relay driver circuit that receives latched logic states from the 3500 rack’s internal communication bus at a scan rate synchronized with the monitor modules. Each relay driver stage incorporates a transient suppression diode across the relay coil to clamp inductive kickback below 50 V, protecting the driver transistor and adjacent circuitry from voltage spikes generated during de-energization—a common failure mode in relay modules operating in electrically noisy machine rooms.

Optical isolation between the backplane logic domain (3.3 V CMOS) and the relay coil drive circuit (12 V internal rail) provides a galvanic barrier rated at 1,500 V RMS. This isolation architecture prevents ground loops from propagating between the 3500 rack’s logic ground and the field wiring ground, which is particularly significant in installations where relay contacts interface with 110/220 VAC annunciator circuits or DCS I/O cards operating on separate ground references.

The Form C contact geometry—with a common terminal, a normally closed (NC) contact, and a normally open (NO) contact—enables both energize-to-trip and de-energize-to-trip wiring philosophies. De-energize-to-trip (fail-safe) configurations are standard practice in SIL-rated protection loops: a loss of rack power or a broken field wire causes the relay to drop out, driving the protected machine to a safe state without requiring an active command. The 3500/42 supports this wiring mode natively on all four channels.

Contact material is silver-nickel alloy with gold flash plating on the contact surfaces. The gold flash maintains low contact resistance (typically < 100 mΩ) at minimum switching loads as low as 10 mA / 5 VDC, preventing the dry-circuit contact degradation that affects standard silver contacts when switching low-energy logic signals into PLC digital inputs. This is a deliberate design choice for machinery protection applications where relay contacts may remain in a static state for months between test intervals.

The module’s EMC design incorporates a multi-layer PCB with dedicated ground planes separating the relay switching layer from the logic layer. Ferrite beads on the relay coil drive lines attenuate high-frequency conducted emissions generated by relay switching transients, keeping radiated emissions within CISPR 11 Class A limits even when all four relays switch simultaneously under full load.

System Integration Benefits

• Deterministic Output Latency: Relay operate time ≤ 10 ms from backplane command to contact closure ensures that protection trip signals reach DCS interlock inputs within the response budget defined by API 670 machinery protection standards.
• Zero External Wiring Between Monitor and Relay: Backplane-based command delivery eliminates the field cable runs that would otherwise connect monitor module trip outputs to relay input terminals, removing a significant source of wiring faults and reducing panel wiring labor by approximately 40% compared to discrete relay panel designs.
• Four Independent Channels Per Slot: A single module occupies one rack slot while providing four independently configurable relay outputs, maximizing rack density in installations where slot count is constrained by physical enclosure dimensions.
• Hot-Swap Capability: The module can be inserted or removed from a powered 3500 rack without interrupting other monitor channels, enabling corrective maintenance during plant operation without requiring a controlled shutdown—critical for continuous-process industries with high availability requirements.
• Fail-Safe Wiring Compatibility: Native Form C contacts support de-energize-to-trip wiring on all channels, satisfying the fail-safe output requirement of IEC 61511 safety instrumented system designs without external relay inversion hardware.
• Diagnostic Transparency: The 3500 rack’s System Monitor module continuously polls relay driver status and reports coil drive faults, contact weld detection (via back-EMF monitoring), and communication loss conditions to the operator interface, providing online diagnostics without requiring manual relay testing.
• Scalable Alarm Architecture: Channels can be individually assigned to Alert, Danger, or user-defined logic functions via the System 1 configuration software, allowing the same hardware to serve different protection logic roles across different machine trains without physical modification.
• Broad Field Interface Compatibility: Contact rating of 5 A @ 250 VAC accommodates direct switching of solenoid valve coils, motor starter auxiliary contacts, and DCS digital input modules across the full range of industrial control voltage standards (24 VDC, 48 VDC, 110 VAC, 220 VAC).

Quality Assurance & Global Logistics

Every Bently Nevada 3500/42 unit supplied by siemensplc.com is sourced through verified industrial procurement channels and subjected to a structured incoming inspection protocol before dispatch. Visual inspection confirms label authenticity, firmware revision markings, connector pin integrity, and absence of physical damage consistent with counterfeit or refurbished-as-new misrepresentation. Functional verification confirms relay coil continuity, contact resistance on all three terminals of each Form C set, and backplane connector pin engagement force within OEM tolerance.

Units are shipped from our warehouse in Xiamen, China, with export documentation including commercial invoice, packing list, and certificate of origin. Express freight via DHL Express or FedEx International Priority delivers to major industrial hubs in Southeast Asia, the Middle East, Europe, and the Americas within 3–7 business days. For volume orders or project-critical timelines, dedicated freight coordination is available. All shipments are insured against transit damage, and replacement dispatch is initiated within 24 hours of confirmed damage claims.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days from fault confirmation. Serial number records are maintained for all dispatched units to support traceability requirements in audited plant environments.
