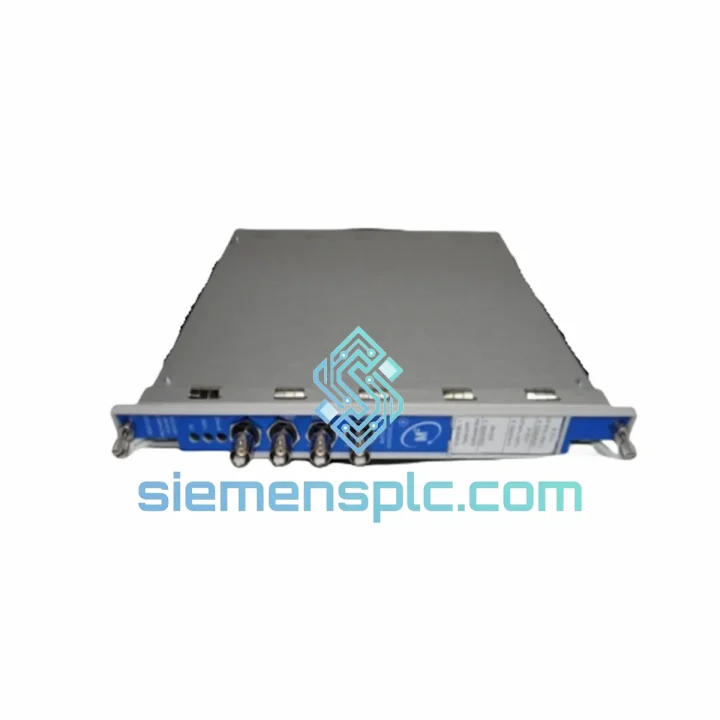

Bently Nevada 3500/61 163179-02 Keyphasor Module

3500/61 163179-02 Down? Every Minute of Downtime Has a Price Tag — We Ship Today

A failed Keyphasor module doesn’t just kill one channel. It blinds your entire 3500 rack. Every monitor module sharing that phase reference goes into alarm or trips — compressor, turbine, pump, all of it. The control room is lit up, operations is calling, and your maintenance window is burning. The Bently Nevada 3500/61 163179-02 is in stock in Xiamen right now. We’ve shipped this exact part number to refineries in the Middle East, power plants in Southeast Asia, and offshore platforms in West Africa — all on emergency timelines. This page exists because downtime doesn’t wait for a Monday morning procurement meeting.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here’s what actually goes wrong with the 3500/61 and what trips up engineers during replacement:

Fault 1 — All monitors show “Keyphasor Not OK” or trip on phase reference loss. This is the classic symptom of a dead 3500/61. Before condemning the module, check the probe gap on the Keyphasor sensor first (target gap: –10 VDC ±1 V for a 5 mm probe). If the probe checks out and the module LED is off or amber, the module is the culprit.

Fault 2 — Intermittent phase reference causing erratic 1X/2X vectors. Usually caused by a cracked solder joint on the input connector or internal signal conditioning failure. Swapping the module is faster than chasing it on the bench. Log your 1X vector trend before pulling the module — it’ll confirm the fault pattern.

Fault 3 — Module powers up but RCS shows “Configuration Mismatch.” This happens when the replacement module’s internal firmware revision doesn’t match the rack’s stored configuration. Solution: re-download the rack configuration from your System 1 backup using Rack Configuration Software (RCS). Do not attempt to manually edit the configuration file — let RCS handle the write.

Replacement Procedure (field-condensed):

1. Notify operations — the rack will alarm during module swap. Coordinate with the control room before pulling the module.
2. Document current probe gap voltages on both Keyphasor channels (CH1 and CH2) before disconnecting.
3. Power down the rack if your site safety procedure requires it. The 3500 rack supports hot-swap on some configurations — verify with your site SOP.
4. Disconnect the I/O termination block from the module front panel. Do not pull the wiring — the termination block unplugs as a unit.
5. Slide the module out. Install the 3500/61 163179-02 replacement into the same slot. Seat firmly until the front panel latch clicks.
6. Reconnect the termination block. Power up. Verify probe gap voltages match pre-swap readings.
7. Open RCS. If prompted for configuration download, push the saved rack configuration. Verify all channels return to “OK” status.
8. Confirm 1X vector readings are stable and consistent with historical baseline before returning the machine to service.

Configuration note on dual-channel use: If you’re using both Keyphasor channels (CH1 for primary, CH2 for backup or a second shaft), verify that each channel’s threshold voltage is set independently in RCS. A common mistake is leaving CH2 at factory default after wiring a magnetic pickup — the threshold needs to be adjusted for the pickup’s output amplitude, which is typically much higher than a proximity probe.

Reliability in Harsh Conditions

The 3500 Series was engineered for environments where failure is not an option. The 3500/61 163179-02 is built to operate continuously in conditions that would kill consumer-grade electronics inside a week.

Vibration: The module’s PCB assembly is conformal-coated and mechanically secured to withstand the structural vibration present in turbine halls and compressor buildings. Field installations on gas turbine skids running at 3,000–3,600 RPM with significant foundation vibration have logged multi-year MTBF without module failure.

Temperature cycling: Industrial sites in the Middle East see ambient temperatures exceeding 50 °C in summer. The 3500/61 is rated to +65 °C operating — with adequate rack ventilation, this provides real margin in hot climates. The –40 °C storage rating means modules can be pre-positioned in unheated warehouses in northern climates without risk of cold-soak damage.

Humidity and contamination: Offshore platforms and coastal refineries deal with salt-laden air and condensation. The conformal coating on the 3500/61 PCB provides a barrier against moisture ingress and conductive contamination. This is not a consumer product with a thin lacquer — it’s an industrial-grade coating applied to a module designed for 24/7 operation in API 670 environments.

EMI/RFI immunity: The 3500 rack’s shielded backplane and the module’s differential input architecture provide strong rejection of electrical noise from VFDs, switchgear, and RF sources common in industrial facilities. If you’re seeing noise on your Keyphasor signal, the problem is almost always in the field wiring or probe installation — not the module.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. Here’s how an emergency shipment actually works:

1. Contact us now via email or WhatsApp with your part number, quantity, and destination. We confirm stock and provide a quote within 2 hours during business hours (UTC+8).
2. PO and payment confirmation — we accept T/T bank transfer and major payment platforms. Export compliance screening is completed in parallel, not sequentially.
3. Same-day or next-day dispatch — in-stock units are packed and handed to DHL/FedEx within 24 hours of payment confirmation. We use commercial invoice and packing list formats accepted by customs in all major industrial markets.
4. Transit times — DHL Express: Middle East 2–3 days, Southeast Asia 1–2 days, Europe 3–4 days, Americas 3–5 days. FedEx International Priority available as an alternative carrier.
5. Tracking and documentation — AWB number provided immediately upon dispatch. Commercial invoice, packing list, and certificate of origin included. Test reports and CoC available on request.
6. Customs clearance — HS code pre-declared. We have experience shipping to countries with complex import procedures including India, Brazil, Saudi Arabia, and Nigeria. If your site requires specific documentation for customs, tell us at order time.

We’ve shipped to platforms in the North Sea, refineries in Jubail, power plants in Java, and compressor stations in Kazakhstan. The logistics process is the same every time — fast, documented, and tracked end to end.
