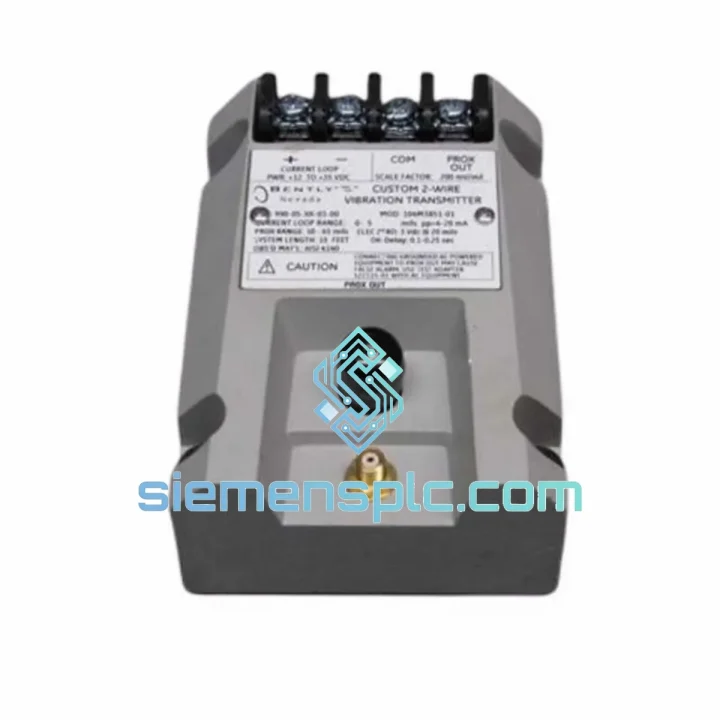

Bently Nevada 991-01-XX-01-05 MOD 288865-01 Axial Position Transmitter – 3500 Series

Bently Nevada 991-01-XX-01-05 MOD 288865-01 — Signal Conditioning Transmitter for Axial Thrust Measurement in 3500 Series Machinery Protection Systems

Rotor axial displacement is the single most consequential mechanical variable in a rotating machine’s protection envelope. When a turbine or compressor rotor migrates beyond its designed thrust bearing clearance — a displacement that may span only 0.3 mm to 0.8 mm depending on machine class — the resulting contact sequence between rotating and stationary components is irreversible within milliseconds. No downstream interlock, no operator response, and no emergency shutdown system can arrest the failure once metal-to-metal contact initiates. The Bently Nevada 991-01-XX-01-05 MOD 288865-01 is the dedicated signal-conditioning transmitter that converts the raw DC gap voltage from a 3300 XL 8mm Proximitor® probe driver into a calibrated, rack-compatible analog output representing rotor axial position — the measurement upon which the 3500 Series Machinery Protection System’s alarm and trip decisions are based.

The 3500 Series MPS, engineered by Bently Nevada and now maintained under Baker Hughes, is the accepted global standard for continuous online protection of critical rotating equipment. Gas turbine compressor trains, steam turbine-generator sets, centrifugal and axial compressors, expander-compressor packages, and large pump trains in oil & gas, LNG, power generation, and petrochemical facilities operate under 3500 rack supervision. Within this architecture, the 991-01-XX-01-05 transmitter occupies the transduction layer between the Proximitor® driver output and the 3500/42M or 3500/40M monitor module input. It receives the probe’s –24 VDC-biased gap voltage, applies a calibrated scale factor and zero-reference offset, and delivers a conditioned 4–20 mA or ±5 VDC signal to the monitor card with the linearity and bandwidth required for both steady-state setpoint evaluation and high-speed transient capture during machine startup and trip events.

Specification compliance in this application is not a procurement preference — it is a protection system integrity requirement. An uncalibrated or non-OEM transmitter inserted into a 3500 thrust channel introduces measurement uncertainty that propagates directly into the monitor module’s alarm logic, potentially masking a genuine thrust excursion or generating a spurious trip. The 991-01-XX-01-05 MOD 288865-01 is maintained in stock at our Xiamen, China facility with full part-number and revision traceability, enabling verified replacement during planned outages or unscheduled maintenance events.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 991-01-XX-01-05 operates as the signal-conditioning node within the eddy-current proximity measurement chain. The 3300 XL 8mm Proximitor® driver sustains a 1 MHz oscillator signal delivered to the probe tip via a matched coaxial extension cable. Eddy currents induced in the conductive rotor target surface load the oscillator circuit in proportion to the air gap distance, producing a DC output voltage that varies from approximately –24 VDC at maximum gap to near 0 VDC as the gap closes. The transmitter receives this raw gap voltage and executes three sequential conditioning operations before presenting the output to the 3500 monitor module.

The first operation applies the probe-cable-driver system’s calibrated sensitivity coefficient — nominally 200 mV/mil for the 3300 XL 8mm system — to convert gap voltage into a normalized displacement value. The second operation applies a configurable zero-reference offset corresponding to the machine’s mechanical datum: the axial position at which the rotor sits centered within its thrust bearing clearance under normal operating load. The third operation drives the output stage to deliver either a 4–20 mA current loop or a ±5 VDC voltage signal to the monitor module’s input terminals, depending on the rack’s configured input type.

The transmitter’s internal architecture incorporates galvanic isolation of ≥ 500 V between the probe input circuit and the output stage. This isolation barrier prevents ground loop currents — which can reach several volts of differential potential between machine frame, probe mounting hardware, and control room ground references in large turbomachinery installations — from superimposing noise onto the position measurement signal. The output stage includes short-circuit protection and reverse-polarity protection on the supply input, ensuring the module survives wiring errors during commissioning without internal damage. EMC performance is validated to IEC 61000-4 series requirements: 10 V/m radiated immunity and ±4 kV EFT/burst immunity, providing stable measurement in environments with adjacent variable-frequency drives, high-current bus bars, and switching power supplies.

The MOD 288865-01 revision designation identifies a specific hardware build state within the 991-01-XX-01-05 product family. Revision control in Bently Nevada’s manufacturing process governs component-level changes that affect calibration coefficients, connector pinout, or firmware behavior. Specifying the MOD number during procurement ensures the replacement unit is electrically and mechanically interchangeable with the installed unit without requiring reconfiguration of the 3500 rack’s monitor module or System 1 software database entries.

System Integration Benefits

• Native 3500 Backplane Interface: The transmitter connects directly to the 3500 rack’s backplane edge connector, interfacing with the 3500/42M Proximitor/Seismic Monitor and 3500/40M Proximitor Monitor modules without external signal conditioning hardware, preserving the rack’s deterministic 20 ms scan cycle.
• Calibration Traceability to Physical Reference: Factory calibration against the specific probe-cable-driver system sensitivity ensures the position value delivered to the monitor module is traceable to a known physical displacement reference — a mandatory requirement for SIL-rated protection loops under IEC 61511 and API 670 compliant installations.
• Direct Setpoint Mapping Without Correction Factors: The transmitter’s linear, calibrated output allows the 3500 monitor module’s Alert and Danger setpoints — typically ±10 mil Alert, ±20 mil Danger — to map directly to physical rotor displacement values, eliminating the risk of setpoint error introduced by uncalibrated signal sources.
• Transient Data Interface Compatibility: Output bandwidth is sufficient to support the 3500/22M Transient Data Interface module’s high-speed sampling during machine startup, coast-down, and trip events, enabling post-event reconstruction of axial position dynamics for root-cause analysis.
• Dual-Channel Redundancy Support: In API 670 compliant dual-channel thrust configurations, two 991-01-XX-01-05 transmitters feed independent monitor channels, supporting 1oo2 or 2oo2 voting logic for trip decisions without cross-channel signal interaction.
• Hardware-Level OK Relay Diagnostics: The 3500 rack’s OK relay logic continuously monitors the transmitter’s output for out-of-range conditions — probe cable open circuit, short circuit, or Proximitor® driver failure — providing a hardware diagnostic path independent of the position measurement channel itself.
• Zero Field-Adjustable Components: Solid-state construction with no potentiometers, trim resistors, or field-adjustable elements means the transmitter requires no periodic calibration adjustment in service — only verification against the system’s calibration record during scheduled outages, reducing maintenance labor and the risk of inadvertent miscalibration.
• Verified Drop-In Field Replacement: The MOD 288865-01 revision designation confirms hardware build state, enabling direct substitution for an installed unit without rack reconfiguration, System 1 database modification, or re-commissioning of the thrust channel — minimizing machine downtime during unplanned maintenance events.

Quality Assurance & Global Logistics

Each 991-01-XX-01-05 MOD 288865-01 unit dispatched from our Xiamen, China facility is processed through a structured pre-shipment verification protocol before packaging. Visual inspection confirms connector pin integrity, housing condition, label legibility, and the absence of physical damage attributable to improper storage or handling. Part number and MOD revision are cross-referenced against Bently Nevada’s official documentation to confirm specification compliance. Where applicable, bench-level power-up and output signal verification are performed to confirm the unit is functional prior to dispatch.

Units are packaged in ESD-safe anti-static bags, enclosed in foam-lined rigid cartons, and sealed with moisture-barrier desiccant packs rated for international air freight transit. Complete export documentation accompanies each shipment: commercial invoice, packing list, and certificate of origin. Express air freight via DHL, FedEx, or UPS delivers to most global destinations within 3–7 business days from Xiamen. For time-critical maintenance situations, same-day dispatch is available for confirmed in-stock units when orders are placed before 14:00 CST. All units carry a 12-month warranty from the date of dispatch, covering manufacturing defects and specification non-conformance verified against Bently Nevada’s published datasheet parameters.
