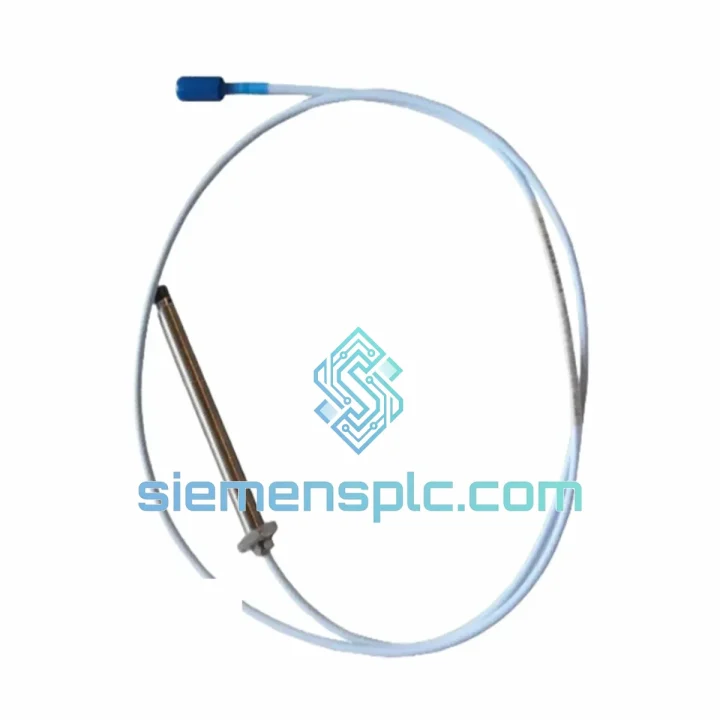

Bently Nevada 400100-100-02 Proximity Transducer

400100-100-02 Proximitor® Down? Every Minute of Shaft Vibration Blackout Costs You — We Ship Same Day

A failed Proximitor® on a gas turbine or compressor train doesn’t just trigger an alarm — it forces a protective shutdown. No vibration signal means no machinery protection, and most sites won’t run blind. If your 3300 XL system is showing -24 VDC supply OK but no output, or your DCS is reading a flat –1 V rail, the 400100-100-02 Proximitor® module is almost certainly the culprit. We stock it. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Top 4 failure signatures that point directly to the 400100-100-02:

• Flat output at –1 V with correct supply: The internal oscillator has failed. The probe and cable check out fine on a substitute Proximitor® — replace the 400100-100-02 immediately.
• Output stuck at –17 V (rail high): Open circuit between probe tip and Proximitor® input, or internal demodulator fault. Swap the Proximitor® first before pulling the probe from the bearing housing.
• Intermittent dropout correlating with ambient temperature rise: Thermal derating of the internal compensation circuit. Common on units with 8+ years of service in high-ambient enclosures. No repair path — replace the module.
• Sensitivity drift >5% from baseline: Calibration has shifted, typically from connector corrosion or internal component aging. A new 400100-100-02 restores factory 200 mV/mil sensitivity without rack recalibration.

Replacement procedure — field-tested sequence:

1. Confirm –24 VDC supply is present at the Proximitor® input terminals before condemning the module. A blown fuse on the monitoring rack is a common false positive.
2. Disconnect the probe/extension cable from the Proximitor® and measure probe tip resistance to ground. Should read 7–9 Ω for a healthy 8 mm probe. Open or short = probe fault, not Proximitor®.
3. Swap the 400100-100-02 with a known-good unit. Reconnect cable. Verify output voltage at nominal gap (should read approximately –10.4 V at 1.27 mm gap for 8 mm probe).
4. No dip-switch or address configuration required on the 400100-100-02 — it is a passive signal conditioner. The monitoring rack (3500/3300) holds all channel configuration. No firmware update needed on the Proximitor® itself.
5. After swap, perform a static gap check: adjust probe gap to nominal 1.0 mm and verify output is within ±0.2 V of the calibration curve. If outside tolerance, the replacement unit may have a probe-model mismatch — confirm 8 mm probe compatibility.
6. Log the replacement in your CMMS with the unit serial number and date-code from the housing label. Bently Nevada date codes follow YYWW format (e.g., 2218 = week 18 of 2022).

Critical compatibility note: The 400100-100-02 is calibrated exclusively for 3300 XL 8 mm probes. It is not interchangeable with legacy 3300 (non-XL) Proximitors (330180 series) or 5 mm probe variants. Mixing series will produce a shifted linear range and incorrect vibration readings — a safety-critical error on API 670 systems.

Reliability in Harsh Conditions

The 400100-100-02 was engineered for the environments where most electronics fail. Bently Nevada’s qualification testing for the 3300 XL platform covers the full spectrum of industrial abuse:

• Vibration & shock: Qualified to IEC 60068-2-6 (sinusoidal vibration, 10–500 Hz, 2 g) and IEC 60068-2-27 (mechanical shock, 15 g / 11 ms half-sine). The aluminum housing and potted internal assembly prevent resonance-induced connector fatigue — a common failure mode on competing designs.
• Thermal cycling: Rated –35 °C to +85 °C continuous operation. Internal compensation circuitry maintains output sensitivity within ±1% across the full range. Units installed in tropical compressor stations and Arctic LNG facilities operate identically.
• Humidity & condensation: IP65 enclosure blocks water ingress from wash-down, steam leaks, and condensation cycles. The BNC connector interface uses gold-plated contacts to resist oxidation in high-humidity environments.
• EMI immunity: Shielded cable interface and internal filtering meet IEC 61000-4-3 (radiated immunity, 10 V/m) and IEC 61000-4-6 (conducted immunity). Operates without output disturbance adjacent to VFDs, large motors, and RF transmitters.
• MTBF: >200,000 hours under rated conditions — over 22 years of continuous operation. Field data from petrochemical installations confirms units routinely exceed 15 years of service before first failure.

When your plant runs 24/7 and a shutdown costs $50,000–$500,000 per hour, the sensor in the loop cannot be a weak link. The 400100-100-02 is not a weak link.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of the most logistics-efficient export hubs in Asia, with direct DHL, FedEx, and UPS gateway access. Here is exactly what happens after you place your order:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handoff to DHL Express or FedEx International Priority.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 9031.80) prepared and submitted electronically. No customs delays from missing paperwork.
• Transit times (door-to-door estimates):
  • Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days
  • Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
  • Europe (Germany, Netherlands, UK): 3–5 business days
  • North America (USA, Canada): 4–6 business days
  • South America (Brazil, Chile): 5–7 business days
• Tracking: AWB number sent within 2 hours of carrier pickup. Real-time tracking link provided via email and WhatsApp.
• Packaging: Anti-static foam insert, moisture barrier bag, and double-wall carton. The 400100-100-02 arrives at your site in the same condition it left our shelf.
• DDP (Delivered Duty Paid) available: We handle import duties and customs clearance on your behalf for most destinations. Ask for a DDP quote when you contact us.

We have shipped to refineries in Jubail, power plants in Rotterdam, compressor stations in Alberta, and LNG terminals in Queensland. The logistics chain is proven. Your replacement part will be on-site before your maintenance window closes.
