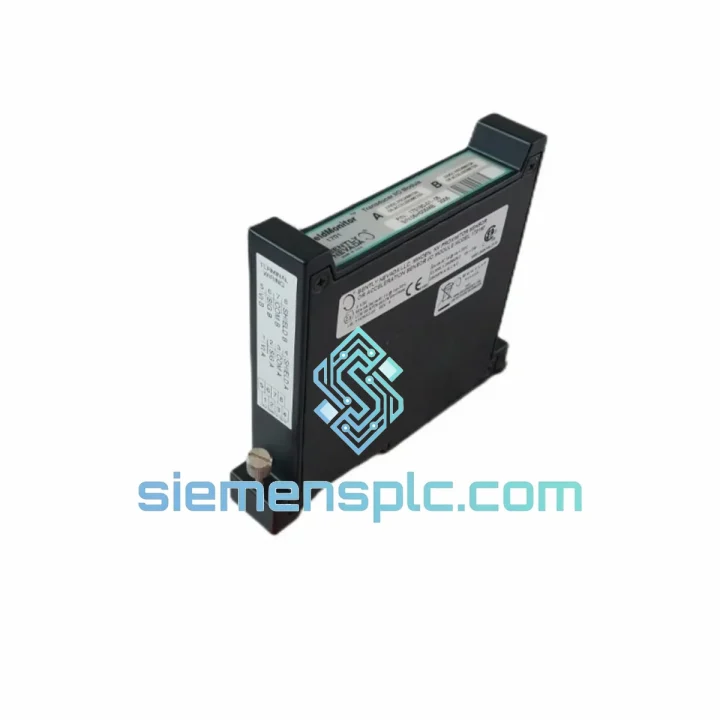

Bently Nevada 4170180-01-05 Transducer I/O Module – 3500 Series

Bently Nevada 4170180-01-05 — External Transducer I/O Module for 3500 Series Machinery Protection Systems

The Bently Nevada 4170180-01-05 is a dedicated External Transducer I/O Module engineered for integration within the 3500 Series Machinery Protection System rack architecture. Its primary function is to extend the signal acquisition front-end of the 3500 platform, providing isolated, conditioned input channels for field-mounted transducers — including eddy-current proximity probes, piezoelectric accelerometers, and velocity sensors — without consuming primary monitor card slots. In continuous machinery protection applications where channel density and signal fidelity are both critical constraints, this module occupies a structurally important position in the measurement chain.

The 3500 Series platform, developed by Bently Nevada (now a Baker Hughes business), is the de facto standard for API 670-compliant machinery protection in rotating equipment facilities. Gas turbines, steam turbines, centrifugal compressors, and large pump trains in oil & gas, power generation, and petrochemical environments rely on this architecture for real-time vibration, position, and speed monitoring. The 4170180-01-05 module is a factory-designed component within this ecosystem, not an aftermarket adaptation, and its electrical and mechanical interfaces are defined to the same tolerances as the primary monitor cards it supports.

From a signal-path perspective, the module accepts raw transducer outputs — typically a DC-biased AC voltage from proximity probes operating at −24 VDC drive, or charge-mode / IEPE signals from accelerometers — and routes them through the rack backplane to the designated monitor card. The internal signal conditioning stage provides buffered outputs, preserving the original transducer signal for both the monitor card measurement path and any external data acquisition systems connected to the buffered output terminals. This dual-path architecture is essential in facilities where the same transducer signal must simultaneously feed the protection system and a separate condition monitoring or predictive maintenance platform.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 4170180-01-05 implements a channel-per-transducer isolation topology. Each input channel incorporates an optocoupler-based galvanic isolation barrier rated to withstand common-mode voltages typical of industrial field wiring environments — a necessary design choice in facilities where transducer cable runs may span hundreds of meters across electrically noisy plant areas. This isolation prevents ground loop currents from corrupting the measurement signal, a failure mode that is particularly destructive in proximity probe circuits where the DC gap voltage is the primary position measurement reference.

The module’s EMC design follows IEC 61000-4 series immunity requirements. The PCB layout employs a split ground plane strategy: the analog signal ground is physically separated from the digital/backplane ground, with a single-point star connection at the chassis reference. This arrangement suppresses high-frequency noise coupling from the rack’s digital logic into the analog measurement front-end. Ferrite bead filtering is applied at the backplane connector pins to attenuate conducted emissions in the 1 MHz–100 MHz range.

The buffered output stage uses a unity-gain operational amplifier configuration with a low-impedance output driver, capable of driving coaxial cable loads without signal attenuation. This is architecturally significant: it means the external data acquisition system connected to the buffered output sees the same signal amplitude and phase as the monitor card, with no loading effect between the two measurement paths. The buffer amplifier’s bandwidth is matched to the maximum frequency content of the supported transducer types — typically flat to 20 kHz for accelerometer channels — ensuring no high-frequency vibration components are lost in the I/O path.

Rack-level redundancy arbitration is handled by the 3500 rack controller, not by this module. However, the 4170180-01-05 is designed to operate correctly in both simplex and redundant rack configurations. In a redundant rack, two modules may be installed in mirrored slots; the rack controller arbitrates which module’s output is used for protection decisions, with automatic failover if one module reports a fault condition via the backplane status register.

System Integration Benefits

• Channel Density Expansion: Adds dedicated transducer input channels without displacing primary monitor cards, allowing engineers to increase the number of monitored measurement points on an existing rack without a rack expansion project.
• Signal Path Integrity: Galvanic isolation per channel eliminates ground loop interference, maintaining measurement accuracy to API 670 Appendix D signal quality requirements across long cable runs.
• Dual-Path Signal Distribution: Buffered outputs allow simultaneous connection to the 3500 protection system and an independent condition monitoring platform (e.g., System 1, OSIsoft PI, or third-party SCADA), with no mutual loading between paths.
• Deterministic Backplane Latency: Signal routing through the 3500 backplane bus operates on a fixed scan cycle, ensuring that transducer data arrives at the monitor card within a bounded time window — a prerequisite for deterministic protection response times in API 670-compliant systems.
• Diagnostic Transparency: The module reports its operational status (power OK, channel fault, communication fault) to the rack controller via the backplane status register, making fault conditions visible in System 1 software without requiring physical inspection of the rack.
• Hot-Swap Compatibility: Within the 3500 rack architecture, the module supports replacement during planned maintenance windows with minimal disruption to adjacent channels, reducing the maintenance window duration for I/O card replacement tasks.
• Firmware-Free Deployment: The module contains no field-programmable firmware. Configuration is managed entirely at the monitor card and rack controller level, eliminating firmware version management as a maintenance burden for this component.
• Broad Transducer Compatibility: Accepts proximity probe, IEPE accelerometer, and velocity sensor inputs on the same hardware platform, reducing the number of distinct spare part numbers required in a facility’s maintenance inventory.

Quality Assurance & Global Logistics

Every unit of the Bently Nevada 4170180-01-05 supplied by siemensplc.com is sourced as genuine OEM hardware. Prior to dispatch, each module undergoes a structured pre-shipment inspection protocol: visual examination of the PCB, connector pins, and label markings; verification of the part number and revision code against the order specification; and a functional continuity check on all I/O terminals. Units are shipped in anti-static ESD packaging with desiccant inserts to protect against humidity ingress during transit. Original OEM packaging is preserved where available.

Our logistics operations are based in Xiamen, China, a major international freight hub with direct air cargo connections to Europe, North America, Southeast Asia, the Middle East, and Australia. Standard in-stock orders are dispatched within 1–3 business days. Expedited air freight options are available for urgent plant maintenance requirements, with door-to-door transit times of 3–5 business days to most international destinations. All shipments include a commercial invoice, packing list, and — upon request — a Certificate of Conformance (CoC) for critical-service procurement documentation. Export compliance documentation is prepared in accordance with applicable trade regulations for industrial automation components.

A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Post-delivery technical support is available via email and WhatsApp for installation guidance, compatibility verification, and troubleshooting assistance.
