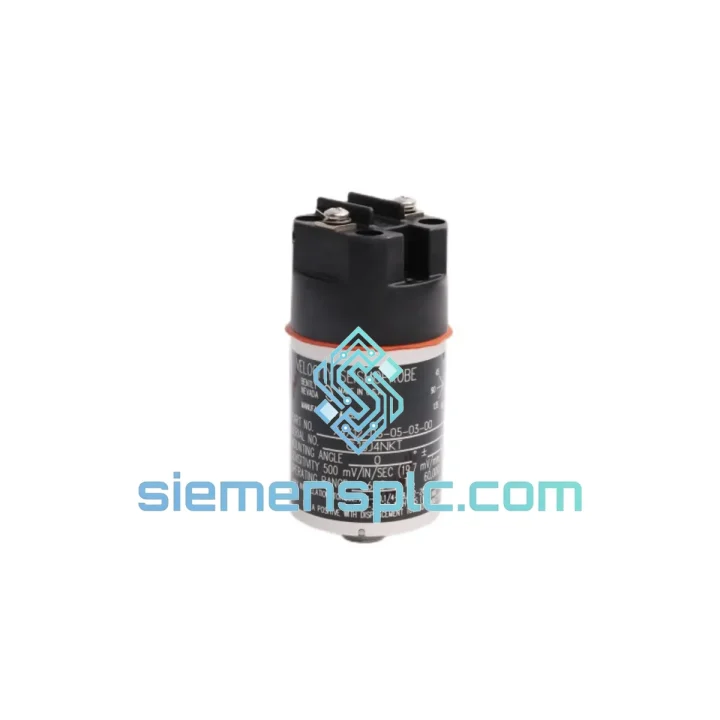

Bently Nevada 74712-06-05-03-00 Proximity Probe – 3300 XL Series

Bently Nevada 74712-06-05-03-00 — 8 mm Eddy-Current Proximity Probe for Rotating Machinery Protection

The 74712-06-05-03-00 is a factory-configured, 8 mm eddy-current proximity probe within the Bently Nevada 3300 XL Proximity Transducer System. It functions as the primary field-sensing element in a three-component transducer chain — probe, extension cable, and proximitor driver — delivering a DC-coupled voltage output that is linearly proportional to the gap between the probe tip and a conductive target surface. This architecture is the accepted standard for shaft radial vibration, axial position, and differential expansion measurement on critical rotating machinery governed by API 670.

The probe body is machined from 316 stainless steel, providing resistance to corrosion in offshore, wet-gas, and chemical process environments. The integral cable terminates in a 3-pin MIL-C-5015 style connector, ensuring mechanical robustness under continuous vibration and thermal cycling. The probe tip generates an oscillating electromagnetic field at a fixed carrier frequency; when a conductive target enters the field, eddy currents are induced, loading the oscillator circuit and producing a measurable impedance change that the proximitor converts to a calibrated voltage output of 7.87 V/mm (200 mV/mil) nominal sensitivity.

The part number suffix encodes the physical configuration: probe diameter (06 = 8 mm), integral cable length (05 = 0.5 m), connector type (03), and calibration standard (00 = standard AISI 4140 steel target). Engineers specifying replacement parts must match the total system cable length — probe integral plus extension — to the proximitor’s calibrated length, typically 5 m or 9 m, to maintain the factory sensitivity and linearity specification without field recalibration of the driver.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 74712-06-05-03-00 operates on the principle of mutual inductance perturbation. The probe coil, embedded in the tip assembly and potted in a high-temperature ceramic compound, is driven by the proximitor’s internal oscillator at a carrier frequency typically in the range of 500 kHz to 2 MHz. When the conductive target surface enters the electromagnetic field, eddy currents are induced in the target, creating a counter-magnetic field that reduces the effective inductance of the probe coil. This inductance reduction is detected by the proximitor’s demodulation circuit, which outputs a DC voltage proportional to the gap distance.

EMC Design: The coaxial cable construction of the integral lead provides inherent shielding against radiated electromagnetic interference. The shield is grounded at the proximitor end only (single-point grounding), preventing ground loop currents that would introduce noise into the measurement signal. In environments with high-frequency switching drives or arc furnaces, the coaxial geometry maintains signal integrity at gap-change frequencies up to 10 kHz without additional filtering.

Thermal Stability: The probe tip assembly uses a matched-coefficient thermal expansion design between the coil former, potting compound, and stainless steel housing. This minimizes thermally induced dimensional changes at the coil-to-tip interface, which would otherwise appear as a false gap shift in the output signal. The –35°C to +177°C operating range covers hot-section turbine bearing pedestals without derating the sensitivity specification.

Mechanical Robustness: The 316 SS housing is rated for continuous immersion (IP67) and withstands the mechanical shock and vibration levels encountered in bearing housings of high-speed turbomachinery. The MIL-C-5015 connector provides a positive locking mechanism that resists vibration-induced loosening, a common failure mode in proximity transducer installations on reciprocating compressors.

Calibration Traceability: Each probe is factory-calibrated against a certified AISI 4140 steel target on a precision gap-setting fixture. The sensitivity and linearity data are traceable to NIST standards. The part number suffix (00) designates the standard calibration curve, ensuring interchangeability with any other 74712-06-05-03-00 unit without field adjustment of the proximitor gain.

System Integration Benefits

• Zero Mechanical Wear: Non-contact measurement eliminates probe-to-shaft contact, removing the wear mechanism that limits the service life of contact-type displacement sensors. Mean time between replacement is determined by environmental factors, not mechanical fatigue.
• DC-Coupled Output for Static Position: The DC-to-10 kHz frequency response captures both quasi-static shaft position (thermal growth, alignment shifts) and dynamic vibration events within a single measurement channel, eliminating the need for separate position and vibration transducers on the same bearing.
• Direct API 670 Compliance: The 3300 XL system is explicitly listed in API 670 Annex A as a qualified transducer system. Specifying this probe on new machinery or replacement projects eliminates the qualification testing burden that applies to non-listed transducer systems.
• Plug-Compatible Replacement: The 74712-06-05-03-00 is a direct dimensional and electrical replacement for earlier Bently Nevada 7200 Series 8 mm probes when used with a matched 3300 XL extension cable, reducing spare-parts inventory complexity for facilities managing mixed-generation machinery fleets.
• Deterministic Signal Latency: The analog output architecture introduces no digital processing latency between gap change and output voltage change. Signal propagation delay is governed only by cable capacitance and proximitor bandwidth, typically under 50 µs, which is critical for machinery protection systems requiring sub-millisecond trip response.
• Diagnostic Transparency: The –24 VDC supply current draw of the probe coil is measurable at the proximitor terminal. An abnormal current draw indicates a shorted or open coil condition, enabling predictive maintenance identification of probe degradation before a measurement failure occurs.
• Wide Target Material Compatibility: While calibrated for AISI 4140 steel, the probe can be used with alternative target materials (titanium, Inconel, aluminum) by applying Bently Nevada material correction factors, extending applicability to aerospace-derivative turbines and non-ferrous rotor designs.
• Scalable System Architecture: The 3300 XL probe is compatible with the full range of Bently Nevada 3500 Series rack monitors, Orbit 60 Series, and System 1 software, allowing the field transducer investment to be preserved across monitor generation upgrades without re-instrumentation of the machinery.

Quality Assurance & Global Logistics

Every 74712-06-05-03-00 unit supplied by siemensplc.com is sourced through verified industrial automation distribution channels with documented supply chain traceability. Prior to dispatch, each unit undergoes a receiving inspection protocol covering physical integrity of the probe body and tip, connector pin condition and locking mechanism function, cable continuity and shield integrity, and verification of original manufacturer labeling and part number markings.

Units are stored in a temperature- and humidity-controlled warehouse in Xiamen, China, maintaining the storage conditions specified in Bently Nevada’s product handling guidelines. This preserves the factory calibration state and prevents moisture ingress into the connector assembly during the storage period.

Shipments from Xiamen reach major industrial hubs across Asia-Pacific within 3–5 business days via DHL Express or FedEx International Priority. European and North American destinations are typically served within 5–7 business days. For urgent plant shutdown requirements, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. All shipments include commercial invoice, packing list, and country-of-origin documentation to support customs clearance in regulated markets. A 12-month warranty covers manufacturing defects under normal operating conditions.
