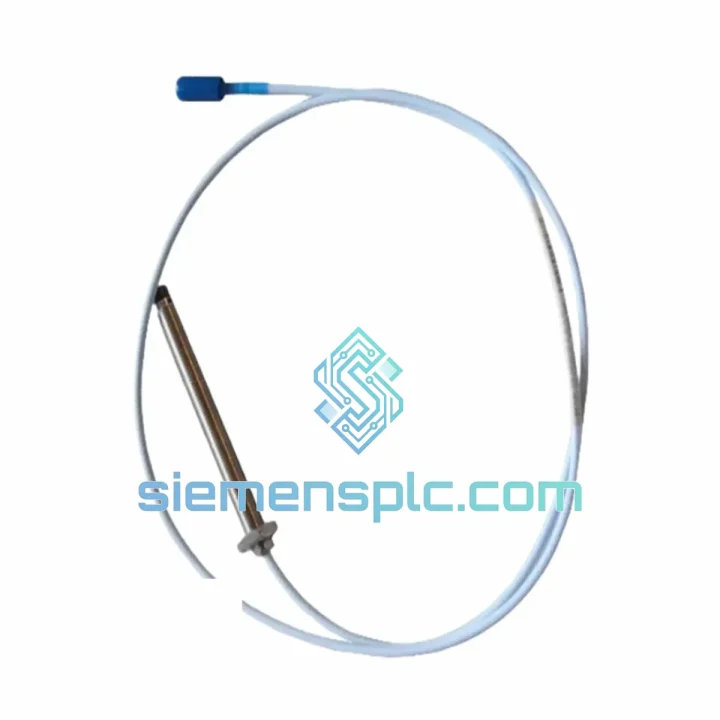

Bently Nevada 76680-00-06-50-0-2 Proximity Probe – 3300 XL Series

Bently Nevada 76680-00-06-50-0-2 — Eddy-Current Shaft Displacement Sensor for Continuous Machinery Protection

The 76680-00-06-50-0-2 is an 8 mm eddy-current proximity probe manufactured by Bently Nevada as part of the 3300 XL Proximity Transducer System. Its primary function within a machinery protection loop is to deliver a continuous, non-contact DC voltage signal proportional to the gap between the probe tip and a conductive target surface — typically a rotating shaft journal. This signal feeds directly into a Proximitor® driver, which conditions and scales the output before transmission to a 3500-series monitor rack for alarm arbitration, trip logic, and data acquisition.

In rotating machinery, shaft displacement is the most direct indicator of rotor dynamic health. Unlike accelerometers, which measure vibration velocity or acceleration at the bearing housing, an eddy-current proximity probe measures actual shaft motion relative to the bearing clearance. This distinction is critical: a shaft can exhibit significant orbital motion inside a bearing while the housing remains nearly stationary. The 76680-00-06-50-0-2 captures that orbital trajectory with a flat frequency response from DC to 10,000 Hz, making it equally suited for slow-roll runout checks at startup and high-frequency sub-synchronous instability detection at full operating speed.

The probe is designed for permanent installation in bearing pedestals, seal housings, and thrust collar brackets. Its 8 mm body diameter and M10 × 1 thread allow direct mounting in standard API 670-compliant probe bosses without adapter hardware. The 0.5 m integral coaxial cable terminates in a standard Bently Nevada connector that mates directly with 3300 XL extension cables, maintaining signal integrity across the full transducer loop from probe tip to monitor input.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 76680-00-06-50-0-2 is based on the Lenz’s Law induction effect. The probe tip houses a wound coil energized at a fixed high-frequency carrier signal (typically 1.0 MHz) generated by the paired Proximitor® oscillator-demodulator circuit. When a conductive target enters the electromagnetic field projected by the coil, eddy currents are induced on the target surface. These eddy currents create a counter-magnetic field that loads the probe coil, reducing its effective inductance and quality factor (Q). The Proximitor® circuit detects this impedance change and converts it to a proportional DC output voltage — a linear relationship maintained across the 0.25 mm to 2.25 mm gap range.

EMC and Shielding Architecture: The integral coaxial cable uses a triaxial construction in the 3300 XL system: the inner conductor carries the high-frequency carrier signal, the inner shield is driven at the same potential as the center conductor (guard drive), and the outer shield provides ground reference. This driven-guard topology eliminates capacitive leakage currents along the cable length, which is essential when extension cables run through electrically noisy environments such as motor control centers or variable-frequency drive panels. The result is a signal-to-noise ratio that remains stable even with cable runs exceeding 9 m.

Temperature Compensation: The probe coil assembly is wound with a temperature-stable alloy and encapsulated in a ceramic-filled epoxy compound. This construction limits the thermal coefficient of the scale factor to within ±0.5% across the full −35 °C to +177 °C operating range, eliminating the need for external temperature correction in most turbomachinery applications. The encapsulant also provides mechanical protection against steam condensate, lube oil immersion, and vibration-induced fatigue at the cable-to-probe junction.

Intrinsic Safety Barrier Compatibility: The probe’s electrical parameters — maximum input voltage, inductance, and capacitance — are certified for use with approved Zener barriers and galvanic isolators in Zone 0 and Zone 1 hazardous areas under ATEX Directive 2014/34/EU and IECEx standards. The entity parameters (Ui, Ii, Pi, Ci, Li) are documented in the Bently Nevada system certification drawings, allowing direct integration into SIL-rated safety instrumented systems per IEC 61511.

System Integration Benefits

• Direct API 670 Compliance: The 76680-00-06-50-0-2 meets all transducer requirements of API 670 (5th Edition), including scale factor tolerance, frequency response, and temperature range. This eliminates the engineering review burden for EPC contractors specifying machinery protection on new-build projects.
• Deterministic Loop Latency: The eddy-current transducer loop — probe, extension cable, Proximitor® — delivers a signal with group delay below 50 µs across the measurement bandwidth. This deterministic latency allows the 3500-series monitor to execute trip decisions within one shaft revolution at speeds up to 60,000 RPM, meeting the response time requirements of API 670 Section 5.
• Plug-and-Play with 3500 Monitor Racks: The probe’s output impedance and voltage range are factory-matched to the 3500/42M Proximitor®/Seismic Monitor input specifications. No field calibration of the monitor card is required when replacing a probe of the same part number, reducing maintenance downtime to the time required for physical installation and gap setting.
• System 1® Software Integration: When connected through a 3500 rack with Ethernet I/O module, the probe’s gap voltage, vibration amplitude (0-pk and pk-pk), and phase angle data are available as tagged process variables in Bently Nevada System 1® software. This enables continuous orbit plot generation, trend analysis, and alarm event logging without additional signal conditioning hardware.
• Dual-Probe Orbit Capability: Two probes mounted 90° apart on the same bearing journal provide the X-Y displacement data required to compute shaft orbital trajectories. The 76680-00-06-50-0-2’s matched scale factor tolerance (±1% of nominal) ensures that orbit plots are geometrically accurate without per-probe correction coefficients.
• Thrust Position Measurement: Beyond radial vibration, the same probe model is used for axial thrust position monitoring when mounted facing the thrust collar. The DC component of the output voltage represents static axial position, while the AC component captures dynamic thrust fluctuations. A single probe model covering both functions simplifies spare parts inventory management.
• Hazardous Area Deployment Without Additional Hardware: The ATEX/IECEx intrinsic safety certification allows direct installation in Zone 0 classified areas — such as compressor seal cavities — without the conduit sealing fittings or explosion-proof junction boxes required for non-IS sensors. This reduces installation material cost and eliminates potential leak paths in gas-tight enclosures.
• Diagnostic Transparency via Gap Voltage Monitoring: The Proximitor® output includes a static DC gap voltage that reflects the physical probe-to-shaft clearance. Trending this value over time reveals bearing wear (decreasing clearance) or probe fouling (apparent gap increase). The 3500 monitor can be configured to generate a Not OK (NO) alarm if the gap voltage falls outside the linear range, providing early warning of installation problems before vibration alarms are triggered.

Quality Assurance & Global Logistics

Every 76680-00-06-50-0-2 unit dispatched from our Xiamen, China facility is a genuine Bently Nevada (Baker Hughes) component sourced through verified industrial supply channels. Prior to shipment, each probe undergoes a multi-point inspection protocol: visual examination of the probe tip, coil housing, and cable jacket for mechanical damage; connector pin inspection for corrosion or deformation; and a continuity and insulation resistance check on the integral coaxial cable. Units that do not pass inspection are quarantined and not dispatched.

Original manufacturer documentation — including the Bently Nevada part number label, certificate of conformance, and where available, factory test data — accompanies each shipment. Serial number traceability is maintained in our inventory records and can be provided upon request for asset management or audit purposes.

Logistics from Xiamen cover all major international trade lanes. Standard air freight to Europe, the Middle East, Southeast Asia, and North America typically achieves 3–7 business day door-to-door transit. For urgent plant maintenance requirements, same-day dispatch on orders confirmed before 14:00 CST is available. Export documentation — commercial invoice, packing list, certificate of origin, and HS Code 9031.80 classification — is prepared in-house to minimize customs clearance delays. EXW, FOB Xiamen, and CIF destination Incoterms are all supported. Payment options include T/T bank transfer and trade credit for established accounts.

The 12-month warranty covers manufacturing defects and specification non-conformance. If a unit fails to perform within the published electrical parameters under normal operating conditions, we provide a replacement at no additional cost. Our technical team — with direct experience in Bently Nevada 3300 and 3500 system architecture — is available to support installation gap-setting procedures, scale factor verification, and system loop checks via email or WhatsApp.
