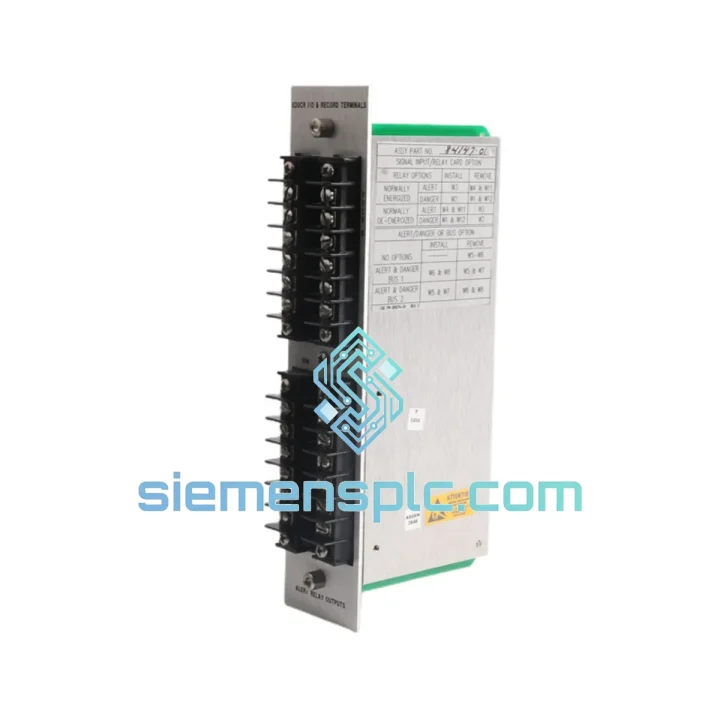

Bently Nevada 84147-01 I/O Terminal Board – 3500 Series

Bently Nevada 84147-01: Field Wiring Interface Architecture in 3500 Series Machinery Protection Systems

The Bently Nevada 84147-01 is a transducer I/O record terminal board engineered for deployment within the 3500 Series Machinery Protection System rack. Its functional role is precise: it establishes the electrical and mechanical boundary between field-routed transducer cables and the signal processing modules seated in the 3500 rack backplane. In a continuous machinery protection loop — covering steam turbines, gas compressors, centrifugal pumps, and large motor-driven trains — the quality of this interface determines whether the downstream monitor card receives a signal that accurately represents shaft displacement, velocity, or acceleration, or one that has been degraded by impedance mismatch, ground loop current, or capacitive coupling from adjacent power conductors.

The 84147-01 is not a passive junction block in the conventional sense. Its terminal geometry, conductor routing discipline, and shield termination architecture are defined by Bently Nevada’s field experience across decades of turbomachinery protection installations. The board accommodates the 3500 rack’s modular slot philosophy: field wiring connects once and remains undisturbed across the service life of the monitor module it feeds. When a monitor card requires extraction for calibration verification or replacement, the 84147-01 holds all field terminations in place, preserving transducer bias circuit continuity and eliminating the re-termination step that would otherwise introduce wiring error risk and extend the maintenance window.

In API 670-compliant installations — the industry standard for machinery protection in hydrocarbon processing and power generation — the terminal board’s role in maintaining signal segregation between vibration, position, and speed channels is a documented requirement. The 84147-01’s physical layout supports this segregation, allowing installation documentation to reference OEM-defined terminal assignments rather than site-specific wiring schemes that may drift from the original design intent over successive maintenance cycles.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 84147-01 operates at the signal entry boundary of the 3500 protection rack, and its hardware design addresses three engineering constraints that are intrinsic to rotating machinery monitoring environments.

Impedance-Defined Signal Path: Field cable runs in large turbomachinery installations routinely span 50 to 300 meters. At these lengths, cable capacitance — typically 100 to 200 pF/m for shielded twisted-pair — forms a low-pass filter with the source impedance of the transducer. The 84147-01’s terminal layout maintains the defined impedance boundary between the cable’s distributed capacitance and the monitor card’s input amplifier, preventing the cable’s RC time constant from attenuating high-frequency vibration components above 1 kHz that are diagnostically significant for bearing defect detection and blade-pass frequency analysis.

Ground Loop Suppression via Single-Point Shield Termination: In facilities where multiple earthing systems coexist — common in petrochemical complexes with separately grounded instrument, power, and safety system grounds — shield currents can reach tens of milliamperes if the cable shield is terminated at both ends. The 84147-01 enforces a single-point shield termination at the rack end, with the field end of the shield left floating per Bently Nevada’s installation standard. This eliminates the ground loop current path through the signal conductor pair, which would otherwise appear as a 50/60 Hz common-mode voltage superimposed on the transducer output — an error that cannot be distinguished from a genuine low-frequency shaft motion component by the monitor module’s analog front end.

EMC Containment in High-Interference Environments: Variable-frequency drives, high-current bus bars, and arc-flash events during switchgear operation generate broadband electromagnetic interference across the 10 kHz to 30 MHz range. The terminal board’s ground plane geometry provides a low-impedance return path that attenuates capacitively coupled interference before it reaches the monitor card’s input stage. This is a hardware-determined characteristic; no firmware filtering or software compensation can substitute for correct physical layout at the field wiring interface.

System Integration Benefits

• Zero-latency signal interface: The 84147-01 introduces no active processing stage between the field transducer and the monitor card input. Signal propagation delay is governed solely by passive conductor impedance, ensuring the monitor module’s alarm response time meets API 670’s 1-second trip response requirement without margin erosion from interface electronics.
• Bias circuit voltage stability: The -24 VDC proximity probe bias supply is routed through the terminal board with full isolation from chassis ground. Bias voltage droop — which shifts the probe’s operating gap voltage and introduces a DC offset into the vibration measurement — is prevented by the board’s defined isolation resistance between the bias conductor and the rack chassis.
• Unambiguous fault attribution: Because the terminal board contains no active components, any signal anomaly detected by the monitor module — open circuit, short to chassis, over-range input — is directly attributable to the field wiring or transducer. Fault isolation during alarm investigation does not require elimination of the interface electronics as a potential source, reducing mean time to repair in time-critical production environments.
• Multi-transducer type support within a single terminal format: The 84147-01 accommodates wiring configurations for eddy-current proximity probes, passive velocity transducers, and IEPE accelerometers within the same OEM-defined terminal block layout, reducing the number of distinct terminal board part numbers required in a plant’s MRO spare parts inventory.
• Hot-swap monitor card replacement without field rewiring: The terminal board remains mechanically and electrically in place during monitor card extraction. Field wiring continuity is maintained throughout the replacement procedure, and the protection loop is restored to service immediately upon monitor card reinsertion — without re-terminating cables or re-verifying wiring polarity.
• API 670 signal segregation compliance: The terminal board’s physical layout supports the standard’s requirement for separation of vibration, position, and speed signal conductors, enabling installation documentation to reference OEM-defined terminal assignments and simplifying third-party audit verification.
• Reduced commissioning error probability: OEM-labeled terminal positions and published wiring diagrams eliminate ambiguity during initial installation and post-maintenance rewiring. Transducer polarity reversal and shield mis-termination — the two most common field wiring errors in proximity probe installations — are mitigated by the board’s defined terminal layout.
• Cross-generation rack compatibility: The 84147-01 is dimensionally and electrically compatible with the established 3500 rack infrastructure across multiple rack generations, allowing direct replacement in existing installations without rack modification, backplane firmware update, or re-engineering of the field wiring scheme.

Quality Assurance & Global Logistics

Each 84147-01 unit dispatched through siemensplc.com is sourced through verified procurement channels with full supply chain traceability. Upon receipt, units undergo physical inspection covering OEM label integrity, terminal block condition, connector pin alignment, and housing conformance to Bently Nevada’s published dimensional standards. No re-labeling, component substitution, or cosmetic modification is performed. Certificates of conformance and procurement documentation are retained on file and provided to customers upon request to support incoming inspection and audit requirements.

Logistics operations are based in Xiamen, China, with direct access to international air freight services via Xiamen Gaoqi International Airport and sea freight consolidation through Xiamen Port — one of China’s top-five container ports by throughput volume. Standard export documentation is prepared for every shipment: commercial invoice, packing list, certificate of origin, and material safety data sheet where applicable. DHL Express and FedEx International Priority are the primary carriers for urgent and small-quantity orders, with typical transit times of 3 to 5 business days to destinations in Southeast Asia, the Middle East, Europe, and the Americas. Project and bulk orders are accommodated via sea freight on full container load or less-than-container-load terms. All shipments are covered by cargo insurance, and tracking references are issued at the time of dispatch.
