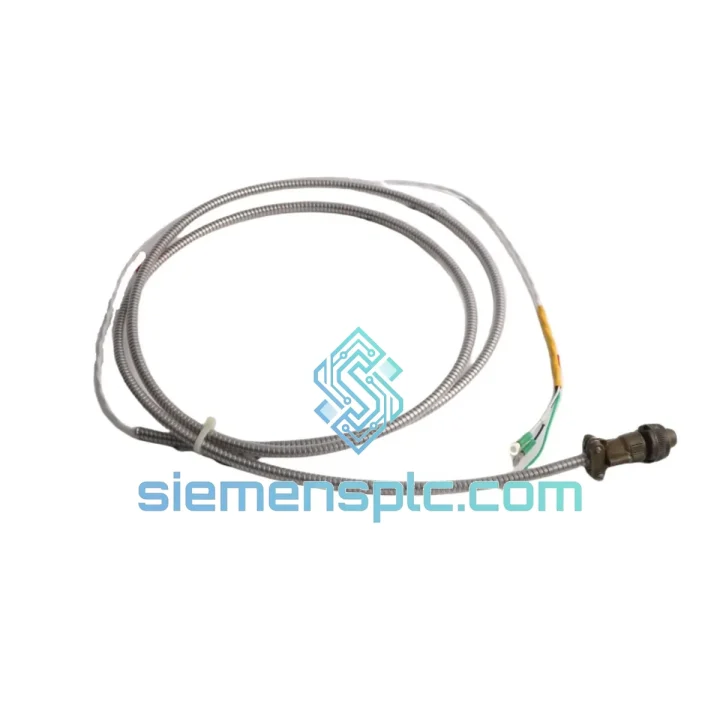

Bently Nevada 84661-08 — 8 ft Coaxial Extension Cable for 3300 XL Proximity Transducer Systems

In eddy-current proximity measurement, the extension cable is not a passive conductor — it is an active element of the RF oscillator loop. The 84661-08 is the factory-specified 8 ft (2.44 m) extension cable for the Bently Nevada 3300 XL Proximity Transducer System, engineered to maintain the precise impedance environment required for accurate shaft displacement and vibration measurement in turbomachinery protection applications. Every electrical parameter of this cable — characteristic impedance, distributed capacitance, shield transfer impedance — is matched to the 3300 XL Proximitor® sensor’s internal oscillator circuit. Deviation from these parameters introduces gap voltage nonlinearity, scale factor error, and in worst cases, false trip events in the connected 3300 or 3500 Series monitor rack.

The 84661-08 is deployed across power generation, oil & gas compression, petrochemical processing, and heavy rotating machinery installations where API 670 machinery protection requirements mandate verified, OEM-specified transducer system components. siemensplc.com supplies this part as a genuine Bently Nevada component with full traceability documentation available upon request.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL proximity transducer system operates on the eddy-current principle: the Proximitor® sensor drives a high-frequency RF oscillator (nominally 1.0 MHz) through the extension cable to the probe tip coil. The probe’s electromagnetic field induces eddy currents in the target shaft surface; the resulting energy absorption modulates the oscillator’s amplitude, which the Proximitor® demodulates into a DC gap voltage with a scale factor of −7.87 V/mm (−200 mV/mil). The extension cable is electrically part of this oscillator tank circuit — its distributed inductance and capacitance directly affect the resonant frequency and the linear measurement range.

Impedance Continuity: The 84661-08 maintains a tightly controlled characteristic impedance along its full 2.44 m length. Any impedance discontinuity — caused by a damaged connector, kinked cable, or non-OEM substitute — shifts the oscillator operating point, compressing the linear range and introducing a systematic scale factor error that cannot be corrected by monitor calibration alone.

EMC Design: The double-shield construction (inner braid + outer foil) provides a shield transfer impedance below 10 mΩ/m at 1 MHz, effectively decoupling the signal conductor from external electromagnetic interference sources including variable-frequency drives (VFDs), high-current bus bars, and switchgear transients. The drain wire ensures low-resistance shield termination at both connector ends, preventing shield resonance at cable harmonics.

Thermal Stability: The fluoropolymer jacket maintains dimensional and dielectric stability across the full −40 °C to +121 °C operating envelope. Thermal cycling does not alter the cable’s distributed capacitance by more than the system’s calibration tolerance, ensuring measurement repeatability across seasonal and process temperature variations in outdoor or high-temperature machinery enclosures.

Chemical Barrier Integrity: In oil & gas and petrochemical installations, the cable jacket is exposed to hydrocarbon vapors, lubricating oil mist, steam, and cleaning solvents. The PTFE-grade fluoropolymer jacket resists absorption and swelling from these media, preventing jacket degradation that would otherwise alter the cable’s dielectric constant and introduce measurement drift over service life.

System Integration Benefits

• Preserved Oscillator Linearity: OEM-matched impedance keeps the Proximitor® oscillator operating within its designed linear region, maintaining the ±0.5% scale factor accuracy specified for the 3300 XL system across the full measurement gap range.
• False-Trip Prevention: Correct shield termination and impedance continuity eliminate the spurious gap voltage transients that can trigger false machinery trips in 3300/3500 Series monitors, reducing unplanned downtime in critical rotating equipment.
• API 670 Compliance Path: Using the factory-specified extension cable is a prerequisite for maintaining the complete transducer system’s API 670 compliance documentation — essential for insurance, regulatory, and plant safety audits.
• Plug-and-Play Replacement: Factory-terminated connectors conform to 3300 XL mechanical specifications with no field modification, crimping, or soldering required, reducing maintenance time and eliminating field-termination errors.
• Broad Monitor Compatibility: The 84661-08 is compatible with both the 3300 Series and the newer 3500 Series rack monitors, providing a single spare part number that covers multiple monitor generations in mixed-vintage installations.
• Reduced Diagnostic Ambiguity: When all transducer system components are OEM-specified, abnormal monitor readings can be attributed to actual machinery behavior rather than cable-induced measurement artifacts, improving diagnostic confidence during machinery condition assessments.
• Long Service Life in Harsh Environments: The fluoropolymer jacket and double-shield construction are rated for continuous service in the temperature, chemical, and EMI conditions typical of turbomachinery enclosures, reducing cable replacement frequency compared to non-OEM alternatives.
• Traceability for Critical Applications: Full OEM documentation chain is available upon request, supporting quality management system (QMS) requirements in nuclear, aerospace-adjacent, and tier-1 petrochemical facilities where component traceability is mandatory.
• Inventory Standardization: A single 84661-08 part number covers the 8 ft extension requirement across all 3300 XL probe diameters (8 mm, 11 mm, 14 mm), simplifying spare parts inventory management and reducing the number of distinct line items in maintenance stores.

Quality Assurance & Global Logistics

Every 84661-08 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with a documented chain of custody. Prior to dispatch, each unit undergoes physical inspection covering connector mechanical integrity, jacket surface condition, shield continuity (end-to-end resistance measurement), and part marking verification against Bently Nevada OEM labeling standards. No refurbished-as-new, remarked, or unverified units are listed or shipped.

Shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct access to air freight and sea freight routes serving North America, Europe, the Middle East, Southeast Asia, and Australia. Standard in-stock orders are dispatched within 1–3 business days. Expedited air freight options are available for urgent maintenance requirements. DDP (Delivered Duty Paid) and DAP (Delivered At Place) Incoterms are supported; customs documentation, commercial invoices, and packing lists are prepared to the destination country’s import requirements. For orders requiring manufacturer certificates, material test reports, or inspection records, documentation packages are assembled prior to shipment upon written request.
