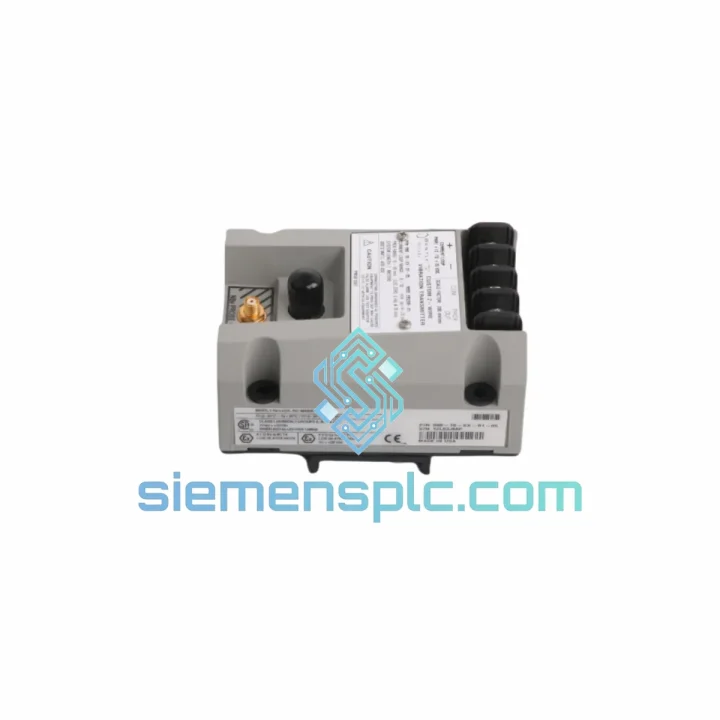

Bently Nevada 990-10-XX-01-05 285269-01 Vibration Transmitter – 990 Series

Bently Nevada 990-10-XX-01-05 285269-01 — Analog Vibration Transmitter for Continuous Rotating Machinery Protection

The Bently Nevada 990-10-XX-01-05 (factory catalog number 285269-01) is a field-mount analog vibration transmitter engineered for continuous, uninterrupted monitoring of rotating machinery in process-critical environments. Its core function is signal conditioning: it accepts the raw, high-impedance output of an eddy-current proximity probe — typically operating in the –24 VDC Bently Nevada standard driver circuit — and converts that signal into a galvanically isolated, loop-powered 4–20 mA current output that any DCS, PLC input card, or safety instrumented system (SIS) can consume directly without additional signal conditioning hardware.

Within a machinery protection control loop, the 990-10-XX-01-05 occupies the critical interface layer between the physical measurement point and the control system’s decision logic. Shaft radial vibration, axial position, and differential expansion are all measurable parameters depending on probe configuration. The transmitter’s output linearity and zero/span stability directly determine whether the control system’s alarm and trip thresholds are enforced with engineering accuracy or degraded by signal drift. In turbomachinery applications — gas turbines, centrifugal compressors, steam turbines — where API 670 mandates continuous vibration monitoring, this transmitter is a compliance-critical component.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 990-10-XX-01-05 is built around a three-stage analog signal chain. The first stage is a high-impedance differential input buffer that accepts the –24 VDC biased output of the eddy-current driver without loading the probe circuit. Input impedance is maintained above 100 kΩ to prevent any measurable perturbation of the driver’s operating point, which would introduce a systematic offset error into the gap measurement.

The second stage is a precision instrumentation amplifier with programmable gain, set at the factory according to the XX option code. This stage performs the linear mapping from the probe’s mV/mil (or mV/µm) sensitivity to the 4–20 mA span. The amplifier’s common-mode rejection ratio (CMRR) exceeds 80 dB at 50/60 Hz, which is the primary mechanism for suppressing ground-loop noise in installations where the probe driver and the DCS input card share different ground references — a common condition in large industrial facilities with distributed earthing systems.

The third stage is a voltage-to-current converter driving the 4–20 mA loop. The output transistor operates in a feedback-controlled configuration that maintains output current accuracy independent of loop resistance variations within the rated 0–600 Ω range. A transient voltage suppressor (TVS) diode array on the output terminals provides protection against inductive switching transients up to ±1 kV (8/20 µs waveform), which is essential in environments where the 4–20 mA loop shares cable trays with motor drive wiring.

EMC performance is achieved through a combination of hardware measures: ferrite bead filtering on all input and output terminals, a ground plane separating the analog signal path from the power supply section, and a shielded transformer providing the galvanic isolation barrier. The isolation withstand voltage is rated at 500 VAC rms (1 minute), sufficient to handle the common-mode voltages encountered in most industrial installations. The result is a transmitter that maintains output accuracy in environments with radiated field strengths up to 10 V/m (IEC 61000-4-3, severity level 3) — the standard applicable to heavy industrial locations.

System Integration Benefits

• Direct DCS/PLC Compatibility: The 4–20 mA output connects to any standard analog input card without signal conditioning modules, reducing panel wiring complexity and eliminating an additional failure point in the signal chain.
• API 670 Compliance Support: The transmitter’s continuous output architecture supports the API 670 requirement for uninterrupted machinery protection monitoring, making it directly applicable to compressor and turbine protection systems in oil & gas facilities.
• Deterministic Response Time: Analog output latency is below 50 ms from probe signal change to 4–20 mA output settling, ensuring that fast-developing fault conditions — such as sudden bearing failure — are reflected in the control system within the response time budget of most SIS logic solvers.
• Galvanic Isolation for Ground Loop Elimination: The input-to-output isolation barrier breaks ground loops between the probe driver circuit and the DCS analog input, a common source of 50/60 Hz interference that can mask low-amplitude vibration signals near alarm thresholds.
• Backward Compatibility with Legacy 990 Series Racks: The transmitter maintains electrical and mechanical compatibility with existing 990 Series installations, allowing direct replacement without rack modification or re-engineering of the associated wiring and marshalling.
• Wide Supply Voltage Tolerance: The 18–30 VDC supply range accommodates both 24 VDC nominal systems and the voltage sag conditions that occur during large motor starts, preventing nuisance output errors during transient power events.
• Diagnostic Transparency via Loop Current: A 4 mA live-zero output allows the DCS to distinguish between a valid zero-vibration reading and a broken wire or failed transmitter — a fundamental diagnostic capability that open-collector or voltage outputs cannot provide.
• Reduced Spare Parts Inventory: The 990 Series platform’s standardized form factor means a single spare transmitter covers multiple measurement points across a facility, reducing the capital tied up in spare parts inventory while maintaining full redundancy coverage.

Quality Assurance & Global Logistics

Every 990-10-XX-01-05 unit supplied by siemensplc.com is sourced as genuine Bently Nevada (Baker Hughes) original equipment. Units are not remanufactured, relabeled, or third-party assembled. Each unit is verified against Bently Nevada’s factory part number database (285269-01) prior to dispatch.

Pre-shipment inspection covers three areas: physical integrity (connector condition, housing, label authenticity, and absence of rework marks), electrical verification (loop current output at 4 mA and 20 mA reference points using calibrated test equipment), and documentation completeness (packing list, commercial invoice, certificate of origin, and where applicable, manufacturer’s certificate of conformance).

Shipments originate from Xiamen, China — a major export hub with direct air freight connections to Singapore, Dubai, Frankfurt, Los Angeles, and Tokyo. Standard international delivery to most destinations is 5–10 business days via DHL Express or FedEx International Priority. For time-critical plant shutdowns or emergency replacements, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. Export documentation complies with Chinese customs regulations and destination country import requirements, including HS code classification, dual-use screening, and end-user declaration where required.

All units are shipped in anti-static packaging with moisture-barrier bags and silica gel desiccant, inside rigid corrugated cartons with foam cushioning rated for the unit’s weight class. This packaging standard is maintained regardless of shipment size, from single-unit emergency orders to multi-unit project consignments.
