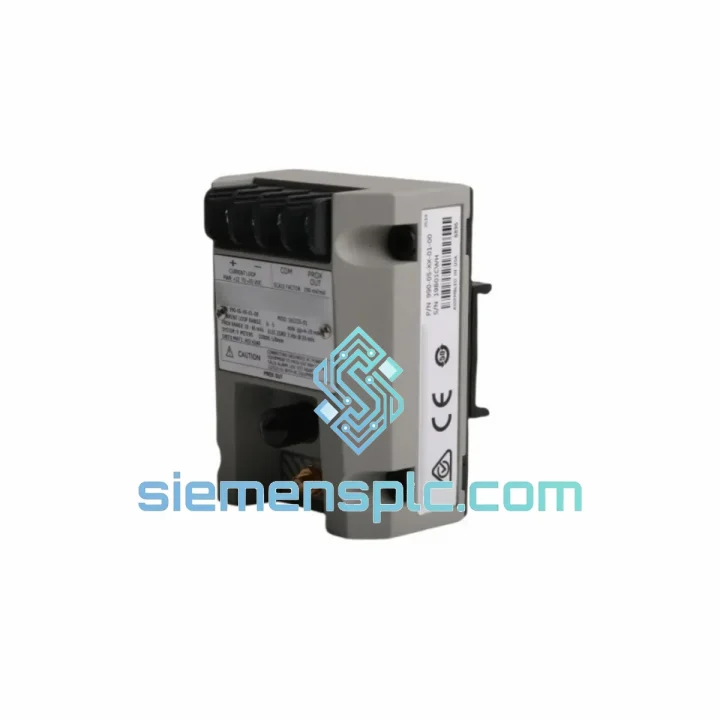

Bently Nevada 990-10-XX-01-05 MOD165353-07 Vibration Transmitter

Bently Nevada 990-10-XX-01-05 MOD165353-07 — Stop the Clock on Your Downtime

Every minute a critical rotating machine sits idle, you’re bleeding money. A failed vibration transmitter on a turbine, compressor, or pump doesn’t just trigger a shutdown alarm — it triggers a financial emergency. The Bently Nevada 990-10-XX-01-05 MOD165353-07 is a precision 4–20 mA proximity-based vibration transmitter from the proven 990 Series, and we stock it in Xiamen specifically for situations where waiting three weeks for OEM delivery is not an option.

We’ve seen it too many times: a plant engineer scrambling at 2 AM, a procurement team calling every distributor in the region, and a production line hemorrhaging output because one module failed. That’s exactly why siemensplc.com maintains ready inventory of hard-to-source industrial automation components — so your next call ends with a confirmed dispatch, not a lead-time quote.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 990-10-XX-01-05 MOD165353-07 is a field-replaceable unit, but a botched swap can introduce new faults or — worse — mask the root cause. Here’s what a decade of field experience tells you to check before and after the swap:

Common Failure Signatures:

• 4 mA flat-line output: Transmitter has lost power or the internal signal conditioning circuit has failed. Verify 18–30 VDC supply at the terminal block before condemning the unit. A dead loop supply is the #1 misdiagnosis.
• 20 mA rail (saturated high): Probe gap is out of range — either the shaft has moved axially, the probe tip is damaged, or the extension cable has an open circuit. Measure gap voltage at the driver output first.
• Erratic / noisy 4–20 mA signal: Check shield continuity on the extension cable. A broken shield on a proximity cable in a high-EMI environment (near VFDs or large motors) will inject noise that looks like real vibration to the monitoring system.
• System 1 / 3500 rack showing Not OK with no process alarm: The transmitter’s OK relay has dropped out. This is often a gap voltage issue — the probe is either too close or too far from the shaft. Target gap: -10 VDC plus or minus 1 VDC for most 990 Series installations.

Replacement Procedure — Key Steps:

• Cable length suffix (XX): The XX in the part number denotes the integral cable length. Confirm your existing cable length before ordering — a 5-meter cable cannot be field-extended without affecting calibration. Common variants: 05 (5 m), 09 (9 m).
• Gap voltage re-establishment: After physical installation, power up the system and measure gap voltage at the transmitter output terminals. Adjust probe position until you achieve the target gap voltage specified in your system documentation (typically -10 VDC for standard 990 Series setups).
• MOD165353-07 revision matching: This modification code indicates a specific hardware revision. If your monitoring rack firmware was validated against this revision, do not substitute a different MOD suffix without confirming compatibility with your Bently Nevada system integrator. Mismatched revisions can cause subtle calibration offsets that will not trigger an immediate alarm but will degrade measurement accuracy over time.
• Loop resistance check: The 4–20 mA loop must have total resistance within the transmitter’s drive capability. Measure total loop resistance (including cable and input impedance of the receiving module) before energizing. Exceeding the rated loop resistance will clip the output at high vibration levels.
• Zero and span verification: After replacement, perform a static calibration check using a known gap distance or a calibrated signal source. Do not assume the new unit is drop-in calibrated to your specific installation without verification.

Reliability in Harsh Conditions

The 990 Series was engineered for environments that destroy lesser instrumentation. The 990-10-XX-01-05 MOD165353-07 is routinely deployed in conditions that would be considered extreme in any other context — and it performs without compromise.

In petrochemical plants, this transmitter operates continuously in ambient temperatures exceeding 60°C, exposed to hydrocarbon vapors and aggressive cleaning agents. The IP66 / NEMA 4X enclosure rating reflects a design validated against high-pressure water jets and dust ingress in real plant environments. The stainless steel housing resists corrosion from caustic washdowns common in food processing and chemical facilities.

Vibration immunity is equally critical. A vibration transmitter that is itself susceptible to mechanical shock is worse than useless — it generates false alarms that erode operator trust in the monitoring system. The 990 Series mechanical design isolates the internal electronics from the structural vibration of the mounting surface, ensuring that what the transmitter reports is shaft vibration, not its own resonance.

In offshore and coastal installations, salt-laden air accelerates corrosion on any exposed metal. The 990-10-XX-01-05’s integral cable construction eliminates the connector junction that is the most common ingress point in multi-piece probe systems. High-humidity environments — paper mills, cooling tower areas, tropical climates — present a condensation risk to electronics. The conformal coating on the 990 Series internal PCB provides a moisture barrier that maintains signal integrity even when ambient humidity cycles through dew point repeatedly over years of continuous operation.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for rapid international dispatch. Xiamen Gaoqi International Airport handles direct cargo connections to major hubs in Europe, Southeast Asia, the Middle East, and North America, enabling transit times that are simply not achievable from inland distribution centers.

Standard dispatch process:

• Order confirmation: Submit your requirement to [email protected] or via WhatsApp. We confirm stock availability and issue a proforma invoice within 2 hours during business hours (UTC+8).
• Export documentation: We prepare commercial invoice, packing list, and certificate of origin. A Certificate of Conformance is available on request. HS Code 9026.80 applies to this product category for customs classification.
• Carrier selection: DHL Express and FedEx International Priority are our primary carriers for urgent shipments. Both offer door-to-door tracking and customs clearance support. For large-volume orders, we coordinate with freight forwarders for air cargo consolidation.
• Transit times (indicative): Southeast Asia 2–3 business days | Europe 3–5 business days | North America 4–6 business days | Middle East 3–4 business days. Actual delivery depends on destination customs clearance.
• Packaging: Anti-static bag, foam-lined carton, outer corrugated box. Fragile and ESD-sensitive markings applied. Units are individually inspected before packing.

For plant shutdowns and turnaround maintenance windows where every hour counts, contact us directly on WhatsApp for real-time stock confirmation and same-day dispatch coordination.
