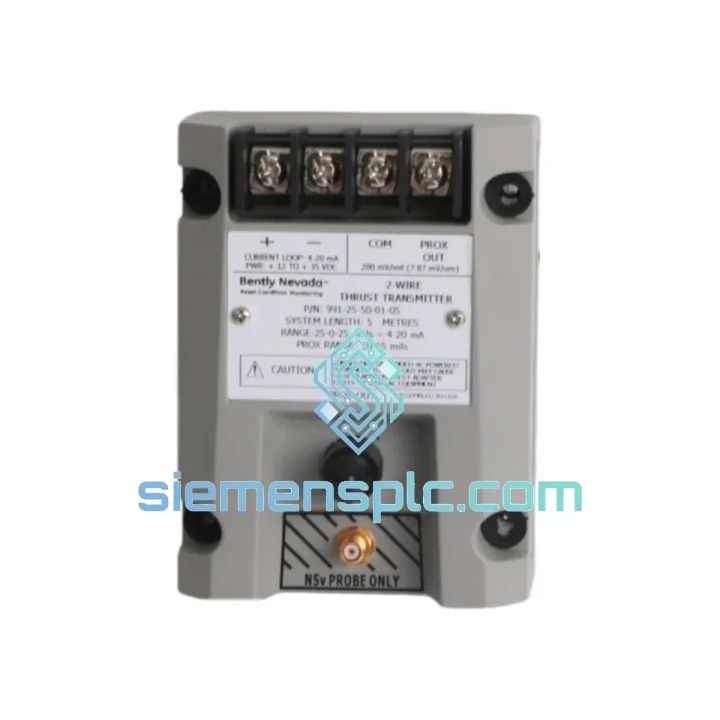

Bently Nevada 991-25-50-01-05 Thrust Position Transmitter – 3300 Proximitor Series

Bently Nevada 991-25-50-01-05 — Axial Thrust Position Transmitter for 3300 Series Proximitor Systems

In rotating machinery protection, axial thrust measurement is not a secondary diagnostic — it is the primary indicator of impending rotor-stator contact. The Bently Nevada 991-25-50-01-05 is a dedicated axial thrust position transmitter engineered for integration within the 3300 Series Proximitor System. It converts eddy-current proximity probe signals into a conditioned 4–20 mA analog output, providing continuous, real-time axial displacement data to DCS, PLC, and Safety Instrumented Systems (SIS) operating under API 670 machinery protection standards.

This transmitter is not a general-purpose signal conditioner. Its internal circuitry is calibrated specifically for the 3300 Series probe-cable-transmitter chain, where the oscillator frequency, gap voltage linearization, and temperature compensation coefficients are matched to Bently Nevada’s eddy-current probe geometry. The result is a measurement chain with sub-mil resolution across the full operating temperature range, without requiring field recalibration under normal service conditions.

Axial thrust shifts in centrifugal compressors, steam turbines, and gas turbines are typically caused by process load transients, balance piston degradation, or thrust bearing wear. The 991-25-50-01-05 provides the continuous 4–20 mA signal that allows the control system to trend these shifts over time, trigger alarms at configurable danger setpoints, and initiate protective shutdown sequences before mechanical damage occurs. In API 670-compliant installations, this transmitter’s output feeds directly into the voting logic of the safety layer, where two-out-of-three (2oo3) or one-out-of-two (1oo2) configurations determine trip authority.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 991-25-50-01-05 operates on the eddy-current proximity principle: a high-frequency oscillator (typically 1 MHz range) drives a coil within the probe tip, generating an electromagnetic field. When a conductive target — the rotor thrust collar — enters this field, eddy currents are induced on the target surface, loading the oscillator and reducing its amplitude. The transmitter’s internal demodulator circuit converts this amplitude variation into a DC voltage proportional to the gap distance, which is then linearized and scaled to the 4–20 mA output range.

The 3300 Series architecture separates the oscillator (located in the probe) from the signal conditioning electronics (located in the transmitter/Proximitor). This physical separation allows the probe to be mounted in high-temperature zones — directly adjacent to bearing housings where ambient temperatures can exceed 120°C — while the transmitter electronics remain in a cooler, more accessible location. The extension cable between probe and transmitter is a matched-impedance coaxial assembly; substituting non-Bently cables introduces capacitance errors that shift the gap-voltage calibration curve.

EMC performance is achieved through differential signal transmission on the probe-to-transmitter cable, combined with internal filtering within the transmitter that attenuates common-mode noise from variable-frequency drives, motor starters, and high-current bus bars common in industrial environments. The 4–20 mA output is inherently noise-immune over long cable runs — a critical advantage in large plant installations where signal cables may run 200–500 meters from the machinery to the control room.

The transmitter’s internal temperature compensation circuit corrects for the thermal coefficient of the probe coil resistance, maintaining measurement accuracy across the full operating temperature range without operator intervention. This is particularly relevant in outdoor installations subject to diurnal temperature swings of 40°C or more.

System Integration Benefits

• Direct 4–20 mA DCS/PLC compatibility: The standardized analog output connects to any control system analog input card without signal conditioning hardware, reducing panel wiring complexity and potential failure points.
• API 670 voting logic support: Multiple 991-25-50-01-05 transmitters can be wired in parallel measurement configurations to support 1oo2 or 2oo3 voting architectures required by API 670 for critical machinery protection.
• Deterministic response time: The 4–20 mA loop responds to gap changes within milliseconds, ensuring the safety system receives thrust position data with latency well below the mechanical response time of thrust bearing failure — typically measured in seconds to minutes.
• Long-distance signal integrity: Current-loop transmission maintains signal accuracy over cable runs exceeding 300 meters, eliminating the need for signal repeaters or local junction amplifiers in large plant layouts.
• Diagnostic transparency via loop current: A failed probe, broken cable, or open circuit drives the loop to 0 mA (below the 4 mA live-zero), which the DCS interprets as a hardware fault — providing automatic fault detection without additional diagnostic hardware.
• Seamless integration with Bently Nevada System 1: When paired with System 1 software, the 4–20 mA signal feeds into trend databases, alarm management, and predictive maintenance analytics, enabling condition-based maintenance scheduling rather than fixed-interval overhauls.
• Compatibility with third-party safety systems: The standard analog output integrates with Siemens SIMATIC S7, ABB 800xA, Honeywell Experion, Emerson DeltaV, and Yokogawa CENTUM VP without custom interface modules.
• Reduced commissioning time: As a native 3300 Series component, the 991-25-50-01-05 uses the same calibration procedures and documentation as other 3300 Series transmitters already installed in the plant, reducing technician training requirements and commissioning schedule risk.

Quality Assurance & Global Logistics

Every 991-25-50-01-05 unit supplied by siemensplc.com is sourced as genuine Bently Nevada hardware. Prior to shipment, each unit undergoes visual inspection for connector integrity, housing condition, and label legibility. Units are verified against the Bently Nevada part number database to confirm correct model identification before dispatch.

Packaging follows anti-static and mechanical shock protection protocols: ESD-safe inner wrap, foam-lined outer carton, and moisture-barrier sealing for ocean freight. For air freight, units are packed to IATA standards for sensitive electronic components.

Shipments originate from Xiamen, China — a major international logistics hub with direct air freight connections to Singapore, Dubai, Frankfurt, Los Angeles, and Houston. Typical transit times are 3–5 business days by air express to most destinations in Asia, the Middle East, Europe, and the Americas. Sea freight options are available for bulk orders. All shipments include full tracking, commercial invoice, packing list, and certificate of conformance. Export documentation for customs clearance is prepared in accordance with destination country requirements.

A 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed with replacement unit dispatch upon confirmation of the defect — no extended RMA delays.
