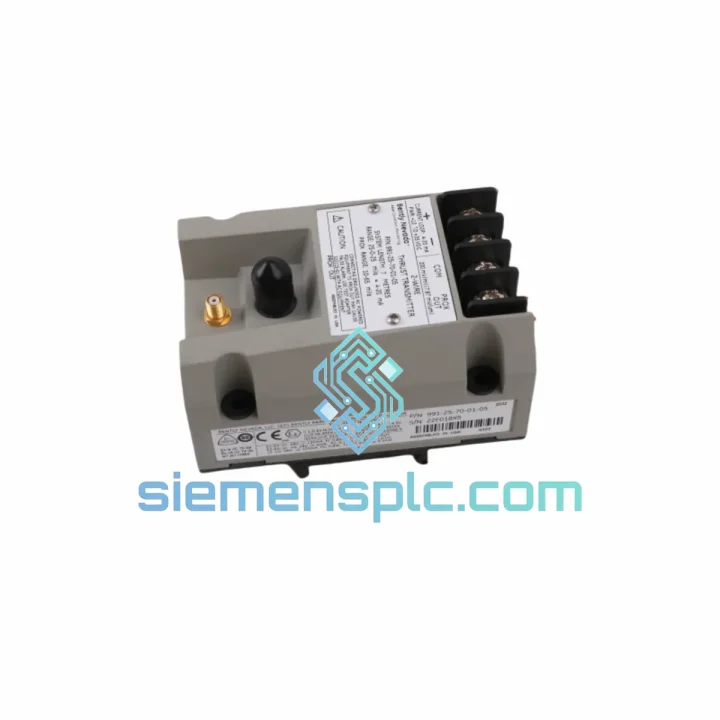

Bently Nevada 991-25-70-01-05 Thrust Position Transmitter

991-25-70-01-05 In Stock Now — Every Hour of Downtime Costs You More Than This Module

Your turbine is down. The DCS is throwing axial position faults. Maintenance is on-site and the clock is running. You already know the 3300 Series thrust transmitter is the weak point — the question is how fast you can get a verified replacement on the rail and back in service. That answer starts here.

The Bently Nevada 991-25-70-01-05 is a dedicated thrust position transmitter within the 3300 Series Machinery Protection System. It converts eddy-current proximity probe signals into a 4–20 mA analog output representing axial shaft displacement — the single most critical measurement for preventing catastrophic thrust bearing failure in rotating equipment. We stock this module in Xiamen and ship globally via DHL and FedEx Express. No waiting on OEM lead times. No sourcing delays. Just a tested unit at your door.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to a failed 991-25-70-01-05:

• DCS alarm: “Thrust Position – Bad PV” or “4–20 mA signal out of range” with probe and cable verified good
• Output frozen at 4 mA (0%) or 20 mA (100%) regardless of actual shaft position — classic transmitter output rail fault
• Intermittent thrust alarms that clear on rack power cycle but return within hours — early sign of internal capacitor degradation
• Differential thrust reading divergence between redundant channels when probe gap is confirmed correct — transmitter gain drift
• Module LED status: steady red or no LED activity after rack power-on — internal power supply failure

Replacement procedure — field-verified steps:

1. Confirm probe and cable integrity first. Measure proximitor output voltage at the terminal block. Should read –7 to –18 VDC at normal gap. If voltage is correct and stable, the transmitter is the fault source.
2. Document current DIP switch configuration before pulling the module. The 991-25-70-01-05 uses onboard switches to set measurement range scaling and output direction. Photograph the switch bank — do not rely on memory or documentation alone.
3. Power down the rack slot if your 3300 Series rack supports individual slot isolation. If not, coordinate with operations for a controlled rack power cycle. Hot-swap is not supported on this module generation.
4. Match DIP switch settings exactly on the replacement unit before insertion. Incorrect range scaling will produce a plausible but wrong 4–20 mA output — the DCS will accept it without alarming, and you will have a silent measurement error. This is the most common post-replacement mistake in the field.
5. Verify zero and span after installation. Use a calibrated gap tool or known shaft position reference to confirm 4 mA at minimum displacement and 20 mA at maximum. Do not skip this step under time pressure.
6. Check firmware compatibility if your rack has been upgraded. The 3300 Series has multiple hardware revisions. Confirm the replacement module revision matches your rack’s expected input card type. Mismatched revisions can cause communication errors on newer rack backplanes.
7. Log the replacement in your CMMS with the new module serial number and switch configuration. Thrust transmitter failures often recur in pairs on the same machine train — flag the redundant channel for inspection.

Note on address configuration: Unlike newer Bently Nevada 3500 Series modules, the 991-25-70-01-05 does not use software-based rack addressing. Slot position in the physical rack determines channel assignment. Ensure the replacement is seated in the correct slot — transposing thrust and radial channels is a documented field error with serious consequences.

Reliability in Harsh Conditions

The 3300 Series was engineered for continuous, unattended operation in environments that would degrade consumer-grade electronics within weeks. The 991-25-70-01-05 is qualified for the following conditions that define real industrial sites:

• Vibration: Designed to withstand structure-borne vibration from adjacent rotating equipment. The module’s internal PCB uses conformal coating and mechanically secured connectors to prevent solder joint fatigue under sustained vibration loads — a failure mode that eliminates many third-party alternatives within 12–18 months of service.
• Temperature cycling: Rated –40°C to +70°C ambient. In practice, this covers outdoor installations in northern climates during winter startups and enclosed turbine enclosures in tropical refineries running at sustained high ambient. The analog output circuit maintains calibration accuracy across this full range without field recalibration.
• Humidity and condensation: Conformal-coated PCB resists moisture ingress during seasonal humidity swings and temporary condensation events. This is particularly relevant for coastal and offshore installations where salt-laden air accelerates corrosion on unprotected boards.
• Electromagnetic interference: The 4–20 mA current loop output is inherently noise-immune over long cable runs — a deliberate design choice for installations where signal cables share trays with power wiring. The transmitter’s input filtering rejects high-frequency interference from variable frequency drives and other switching equipment common in modern plants.
• Power supply transients: Internal regulation tolerates supply voltage variations and brief transients without output disruption. This matters during generator switchovers and UPS transfers, where unregulated supply swings can reset or damage less robust modules.

Units sourced through siemensplc.com are inspected for physical condition, output signal integrity, and switch functionality before shipment. We do not ship modules with cosmetic damage, corroded terminals, or unverified output behavior.

Global Express Logistics

Our Xiamen warehouse operates as a dedicated dispatch hub for industrial automation components serving customers across Asia-Pacific, the Middle East, Europe, and the Americas. When you place an urgent order for the 991-25-70-01-05, here is exactly what happens:

• Same-day dispatch: Orders confirmed before 15:00 CST ship the same business day. Orders confirmed after cutoff ship the following morning. No exceptions, no queuing behind non-urgent shipments.
• Carrier selection: DHL Express and FedEx International Priority are our primary carriers for time-critical shipments. We select the carrier with the fastest published transit time to your destination on the day of shipment — not the cheapest option.
• Transit times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | Australia 2–3 days. These are door-to-door estimates based on actual shipment history, not carrier marketing figures.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for every international shipment. For customers in countries requiring import permits for industrial electronics, we provide advance copies of all documents to accelerate customs clearance.
• Tracking: AWB number provided within 2 hours of dispatch. We monitor shipments actively and notify you immediately of any customs holds or carrier delays — you are not left to discover problems yourself.
• Packaging: Anti-static bag, foam-lined rigid carton, and moisture-barrier outer wrap. The module arrives in the same condition it left our warehouse, regardless of how many times it changes hands in transit.

For shipments to sanctioned or restricted destinations, we comply fully with applicable export control regulations. Contact us before ordering if you have questions about your country’s import requirements for this product category.
