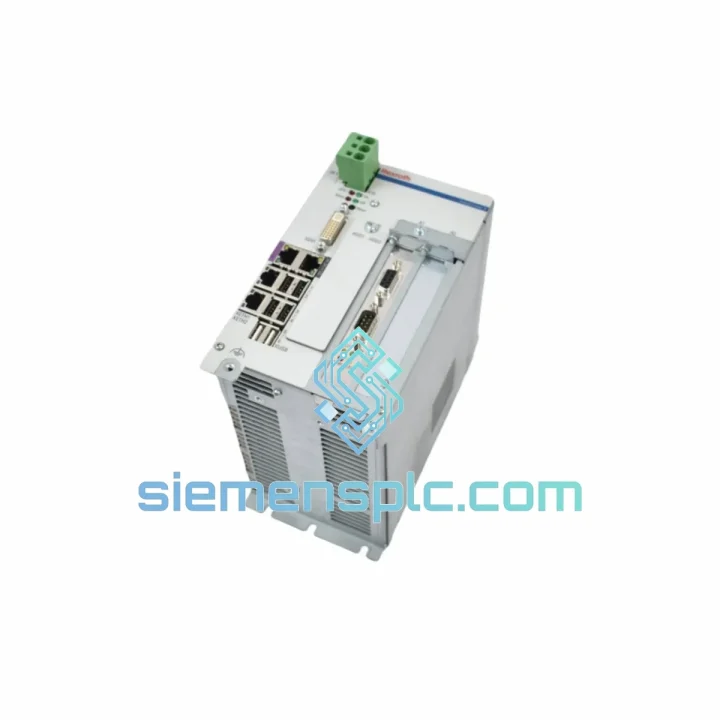

Bosch Rexroth MV-VPB40*3-RB001 DCS I/O Interface Module – VPB-3843 Series

Bosch Rexroth MV-VPB40*3-RB001 (VPB-3843-AC3-473 / R911337529) — Backplane-Coupled Distributed I/O Interface for High-Channel-Count DCS Architectures

The Bosch Rexroth MV-VPB40*3-RB001, cross-referenced as VPB-3843-AC3-473 and carrying Rexroth factory reference R911337529, is a rack-mounted distributed I/O interface module designed for integration within the MV-VPB40 / VPB-3843 backplane ecosystem. Its functional role is to extend the addressable I/O capacity of a DCS controller node while preserving deterministic signal latency across the internal process bus. In continuous-process environments — including petrochemical distillation, power generation turbine control, and pharmaceutical batch manufacturing — this module occupies the boundary layer between field instrumentation and the supervisory control tier, handling signal conditioning, galvanic isolation, and bus arbitration entirely on-board.

The module mounts directly onto the MV-VPB40 passive backplane via a keyed edge connector that carries both the 24 V DC power rails and the internal serial process bus. This single-connector architecture eliminates all inter-card ribbon cabling, reduces terminal block count per I/O point, and confines fault propagation to the individual module rather than the entire rack. Each channel group is independently addressable by the DCS host, enabling partial-rack diagnostics without interrupting adjacent control loops — a requirement in facilities operating under IEC 61511 functional safety frameworks where process continuity during maintenance is contractually mandated.

The VPB-3843 rack accommodates multiple MV-VPB40*3-RB001 modules in parallel, allowing I/O density to scale incrementally without adding new communication nodes or modifying the host controller’s network topology. This modular expansion model is particularly valuable in brownfield retrofit projects where cabinet space is constrained and the cost of adding a new DCS node — including licensing, cabling, and commissioning — is prohibitive relative to the cost of a single I/O expansion card.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MV-VPB40*3-RB001 addresses three principal failure modes endemic to industrial I/O interfaces deployed in high-noise process environments: ground-loop interference, common-mode voltage transients from inductive field loads, and bus contention under multi-module arbitration. The hardware design resolves each through distinct, layered mechanisms rather than relying on a single protective strategy.

Opto-Electronic Isolation Architecture: Each channel group is galvanically separated from the backplane logic domain by high-speed optocouplers rated at ≥ 500 V AC isolation voltage. The propagation delay through the isolation stage is held below 1 µs, which is negligible relative to the DCS scan period (typically 10 – 100 ms in process control applications) and does not introduce measurable phase error into analog signal chains. This isolation barrier prevents ground-loop currents — which arise when field devices and control cabinets reference separate earthing grids across large plant footprints — from corrupting digital signal levels or triggering false state transitions on discrete I/O channels. Common-mode transients generated by inductive switching loads (solenoid valves, motor contactors, relay coils) are clamped within the isolation stage, eliminating the need for external transient voltage suppressors on most standard I/O circuits and reducing BOM cost at the panel level.

EMC Filter Network and PCB Ground Plane Strategy: The PCB layout places a continuous copper ground plane beneath the entire field-side connector zone. Ferrite bead arrays are inserted in series on all field-side signal lines, forming a low-pass filter network that attenuates conducted high-frequency emissions in the 150 kHz – 30 MHz band to EN 55011 Class A industrial limits. The module housing uses conductive gasket material at the backplane interface to maintain chassis ground continuity across the card-to-rack mechanical joint, suppressing radiated emissions from internal bus traces that would otherwise couple into adjacent signal wiring within the cabinet.

Token-Passing Bus Arbitration ASIC: Within a populated VPB-3843 rack, all installed MV-VPB40*3-RB001 modules share a single serial process bus. The on-board bus controller ASIC implements a hardware token-passing protocol: only the module currently holding the token may assert the bus, and the token is passed in a fixed sequence with a hardware-enforced timeout. This eliminates data collisions that would otherwise introduce non-deterministic latency spikes into the DCS scan cycle. The arbitration timeout is configurable via a DIP switch array on the module face plate, allowing the system integrator to align bus cycle time with the host controller’s scan period without firmware modification. In a fully populated rack, worst-case bus access latency remains bounded and calculable, which is a prerequisite for IEC 61784-compliant real-time fieldbus certification.

Independent Hardware Watchdog and Fail-Safe Output Logic: A dedicated hardware watchdog timer — implemented in logic physically separate from the bus controller ASIC — monitors the communication heartbeat from the DCS host. If the host fails to refresh the module within the configured timeout window (100 ms to 10 s, selectable), the watchdog asserts a fail-safe output command that drives all channel group outputs to a pre-configured safe state. The safe state is selectable per channel group as either de-energized (spring-return actuators revert to mechanical default) or hold-last-value (for processes where sudden de-energization is itself a hazard). Because the watchdog operates independently of the bus controller, fail-safe action is guaranteed even if the bus controller enters a locked or undefined state — a failure mode that purely software-based watchdog implementations cannot protect against.

System Integration Benefits

• Bounded Worst-Case Bus Latency: Token-passing arbitration produces a mathematically deterministic upper bound on bus access time, allowing the DCS host to maintain a fixed scan period without jitter from I/O bus contention — a prerequisite for closed-loop PID control with sub-100 ms update rates.
• Per-Channel-Group Fault Isolation: Open-circuit, short-circuit, and over-range conditions are reported independently per channel group to the DCS host, enabling maintenance personnel to identify and isolate a single faulty field loop without taking the entire I/O rack offline or interrupting adjacent process loops.
• Hot-Swap Module Replacement: The module is designed for insertion and extraction under live backplane power within the VPB-3843 rack. Card replacement does not require a rack power-down cycle, reducing planned maintenance windows to the time required for physical card swap and host re-recognition — typically under five minutes.
• Elimination of Inter-Card Cabling: Backplane-based signal and power routing removes all inter-card ribbon cables and reduces terminal block count per I/O point, lowering installation material cost, reducing wiring error probability during commissioning, and improving long-term mechanical reliability in vibration-prone environments.
• Incremental I/O Scaling Without Topology Changes: Additional MV-VPB40*3-RB001 modules populate empty rack slots without modifying the DCS host’s network configuration, communication node count, or software license tier — a significant cost advantage in phased plant expansion projects.
• Hardware-Enforced Fail-Safe Outputs: The independent watchdog-driven fail-safe mechanism satisfies SIL 1 process safety requirements on standard I/O circuits without external safety relays, reducing panel component count and simplifying functional safety documentation under IEC 61511.
• Wide Ambient Temperature Tolerance: Rated continuous operation from 0 °C to +55 °C with IEC 60068-compliant vibration (1 g, 10 – 150 Hz) and shock (15 g, 11 ms) resistance qualifies the module for installation in non-climate-controlled auxiliary control rooms, outdoor weatherproof enclosures, and skid-mounted panels subject to transport vibration.
• Single-Vendor Lifecycle Management: Full electrical and mechanical compatibility with the VPB-3843 / MV-VPB40 product family means spare-part procurement, firmware updates, and system expansions are managed within a single Bosch Rexroth vendor framework, eliminating cross-vendor compatibility risk and simplifying asset lifecycle documentation for plant engineering teams.
• Diagnostic Transparency to Host: Module-level status registers — including bus communication health, watchdog state, and per-channel-group I/O status — are continuously mapped to the DCS host’s process image, providing real-time diagnostic visibility without requiring a separate handheld configuration tool or local HMI panel.

Quality Assurance & Global Logistics

Every MV-VPB40*3-RB001 unit dispatched from siemensplc.com is sourced as genuine Bosch Rexroth OEM hardware manufactured at Rexroth’s German production facilities under ISO 9001:2015 certified quality management processes. Units are not refurbished, relabeled, or sourced through unauthorized distribution channels. Each module carries its original Rexroth factory label bearing the R911337529 reference number and a unique serial number traceable against Rexroth’s production records — providing documentary evidence of authenticity for plant asset registers and insurance audits.

Pre-shipment inspection at our Xiamen facility covers: visual integrity of the housing, backplane connector pins, and face-plate DIP switch assembly; label authenticity verification against Rexroth factory label specifications; and, where test equipment is available, a powered functional check of bus communication handshake and I/O channel response. Units that do not pass all inspection criteria are quarantined and not dispatched. Inspection records are retained for 24 months and are available to customers on request.

International logistics are managed from Xiamen, China, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited air freight services. Indicative transit times: Europe 3 – 5 business days; Southeast Asia 2 – 4 business days; Americas 4 – 7 business days. Sea freight consolidation is available for bulk orders. All shipments include a commercial invoice, packing list, certificate of origin, and export HS code documentation prepared to facilitate customs clearance at the destination port. Expedited customs brokerage support is available for time-critical plant maintenance orders.
