REXROTH VT-VRPA2-537-10/V0 Proportional Valve Amplifier – WV60-RGC2

REXROTH VT-VRPA2-537-10/V0 Proportional Valve Amplifier Card — Closed-Loop Solenoid Drive Architecture for Hydraulic Axis Control

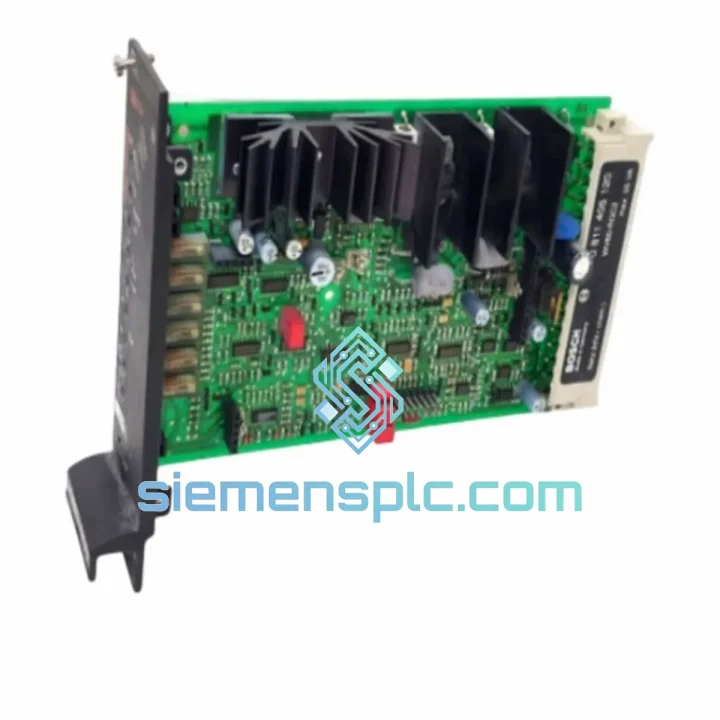

The REXROTH VT-VRPA2-537-10/V0 (Part No. 0811405120, platform designation WV60-RGC2) is a plug-in Euro-card format proportional valve amplifier designed by Bosch Rexroth for precision electrohydraulic control applications. Its primary function within a hydraulic control loop is to translate a ±10 V DC analog command signal — sourced from a PLC analog output, motion controller DAC, or process controller — into a precisely regulated solenoid drive current that positions a proportional directional control valve spool with sub-millimeter repeatability.

Unlike on-valve integrated electronics (OBE), the VT-VRPA2-537-10/V0 operates as a rack-mounted amplifier card, enabling centralized commissioning, parameter adjustment, and fault diagnostics without physical access to the valve body. This architecture is particularly advantageous in confined hydraulic manifold installations, high-temperature press environments, and applications where valve replacement must not disturb amplifier calibration.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The VT-VRPA2-537-10/V0 is built around a current-controlled output stage rather than a voltage-controlled topology. This distinction is fundamental: solenoid coil resistance varies with winding temperature (copper TCR ≈ 0.393%/°C), meaning a voltage-source driver would produce a proportionally drifting force output as the coil heats during sustained operation. The VT-VRPA2 eliminates this drift by sensing actual solenoid current via a low-side shunt resistor and feeding the error back through an internal PI controller, maintaining commanded current within ±1% regardless of coil temperature excursion across the rated 0–50 °C ambient range.

The differential analog input stage employs an instrumentation amplifier topology with a common-mode rejection ratio (CMRR) exceeding 60 dB at 50/60 Hz. In industrial environments where analog signal cables run parallel to motor drive cables or transformer primaries, induced common-mode noise can reach several hundred millivolts. The differential input architecture suppresses this noise before it enters the signal chain, preserving command resolution at the solenoid driver stage.

The dither signal — a low-amplitude, high-frequency AC component superimposed on the DC drive current — serves a specific mechanical purpose: it keeps the valve spool in continuous micro-oscillation, preventing static friction (stiction) from introducing a dead-band in the valve’s force-displacement characteristic. The VT-VRPA2’s dither amplitude potentiometer allows field engineers to tune this parameter to the specific valve model’s spool mass and spring preload, optimizing the trade-off between stiction elimination and spool wear.

EMC design on the VT-VRPA2 platform incorporates transient suppression diodes (TVS) on the 24 V supply rail, ferrite bead filtering on the solenoid output lines, and a ground plane layout that separates analog signal ground from power return paths. This three-layer EMC strategy ensures the card meets EN 61000-4-4 (EFT/Burst, 2 kV) and EN 61000-4-5 (Surge, 1 kV) immunity levels without external filtering components.

The enable input circuit uses an optocoupler isolation stage, decoupling the PLC’s 24 V I/O ground from the amplifier’s internal analog ground. This prevents ground loop currents — a common source of zero-drift and oscillation in mixed-signal industrial boards — from corrupting the command signal reference. When the enable signal is de-asserted (E-stop or PLC output OFF), the output stage is hard-disabled within <2 ms, providing a deterministic safe-state response independent of the analog command level.

System Integration Benefits

• Direct PLC Analog Output Compatibility: The ±10 V differential input maps directly to Siemens SM 332, S7-1500 AQ, Allen-Bradley 1756-OF8, and Beckhoff EL4132 analog output modules without signal conditioning hardware, reducing BOM complexity and wiring labor.
• Deterministic Enable/Disable Response: The optocoupler-isolated enable input provides a <2 ms disable response time, enabling integration with safety relay circuits and SIL-rated E-stop loops without additional interposing relays.
• Independent Ramp Channels: Separate acceleration and deceleration ramp potentiometers allow asymmetric velocity profiling — for example, fast extension with controlled retraction — without requiring ramp generation in the PLC program, reducing scan-cycle load.
• Centralized Parameter Access: All calibration potentiometers (zero, gain, ramp-up, ramp-down, dither amplitude) are accessible on the card face without valve removal, enabling commissioning and re-tuning in live systems with minimal downtime.
• Temperature-Stable Current Output: Closed-loop current regulation maintains solenoid force output within ±1% across the full operating temperature range, eliminating the thermal recalibration cycles required with voltage-source amplifier designs.
• Noise-Immune Signal Chain: 60 dB CMRR at the input stage and TVS/ferrite EMC filtering on the output stage allow installation in high-noise environments — adjacent to VFDs, servo drives, and transformer cabinets — without shielded cable mandates.
• Drop-In Mechanical Compatibility: Euro card form factor and connector pinout are identical across the VT-VRPA2 series, allowing failed card replacement without rack modification, rewiring, or firmware updates.
• Diagnostic Transparency: The enable input state and output current level are observable via the card’s LED indicators, providing first-level fault isolation (no command, no enable, output saturation) without oscilloscope access.
