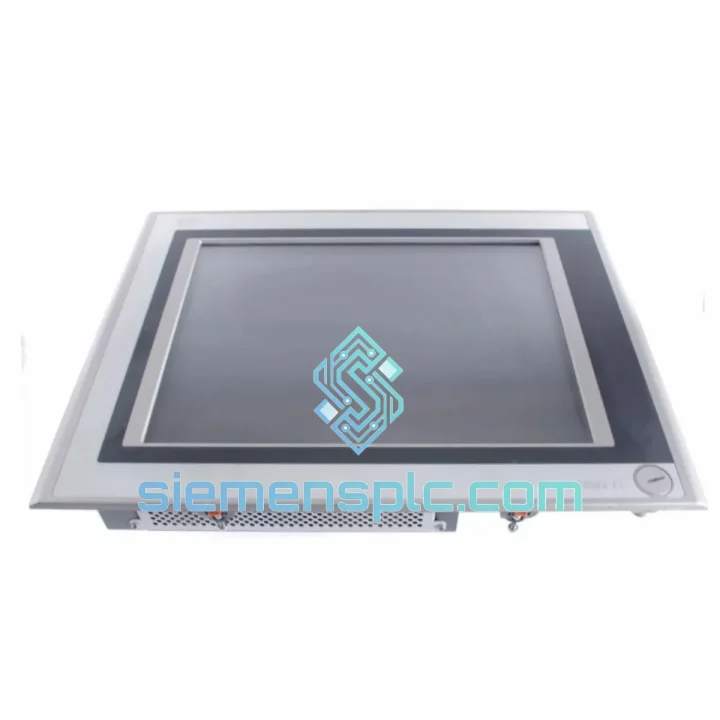

Bosch Rexroth VCP25.2DVN-003-PB-NN-PW HMI Operator Panel – IndraControl VCP25

Bosch Rexroth VCP25.2DVN-003-PB-NN-PW — PROFIBUS-DP Slave HMI Terminal for IndraControl Closed-Loop Architectures

The VCP25.2DVN-003-PB-NN-PW (Material No. R911311507-GB1) is a panel-mount operator interface terminal from Bosch Rexroth’s IndraControl VCP25 series, designed to serve as the human-machine boundary layer in PROFIBUS-DP-based control systems. Unlike general-purpose HMI platforms, the VCP25 was architected specifically for integration with Rexroth’s IndraControl L/M/XM controller families and IndraDrive servo drive systems, where operator input latency and fieldbus cycle determinism are engineering constraints rather than preferences.

In a closed-loop control topology, the VCP25 occupies the visualization and command-entry layer. It does not participate in real-time motion control calculations — that responsibility belongs to the IndraControl CPU. Instead, the VCP25 handles process state display, alarm acknowledgment, recipe parameter entry, and operating mode selection. These functions are time-sensitive in a different dimension: an operator-initiated mode change (e.g., switching from automatic to manual) must propagate to the drive layer within the PROFIBUS master’s configured watchdog window, or the master will flag the slave as absent and trigger a controlled stop. The VCP25’s internal PROFIBUS ASIC is designed to meet this timing obligation independently of the display rendering workload.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The VCP25.2DVN-003-PB-NN-PW implements a dual-processor architecture that physically separates the PROFIBUS communication stack from the display and input management subsystem. The PROFIBUS ASIC — a dedicated hardware state machine — handles the DP protocol layer autonomously: it manages token-ring participation, cyclic I/O data exchange, and diagnostic telegram generation without CPU intervention. This decoupling is the key architectural decision that allows the panel to maintain bus timing compliance even when the application processor is occupied with screen rendering, font scaling, or alarm list sorting.

The PROFIBUS-DP interface operates as a slave-only node, which means the VCP25 never initiates bus transactions. It responds to the master’s polling cycle within the configured T_slot window. At 12 Mbit/s, the minimum cycle time for a single slave exchange is approximately 300 µs; at 1.5 Mbit/s (common in legacy installations), it extends to roughly 2 ms. The VCP25’s ASIC is specified to respond within these windows across the full baud rate range, ensuring the master’s watchdog timer is never triggered by HMI-side latency.

The IP65 front panel seal is achieved through a continuous elastomeric gasket — typically EPDM or silicone compound — compressed uniformly between the bezel flange and the panel cutout edge. The compression force is distributed by the rear clamp system, which must be torqued to the manufacturer’s specification to maintain seal integrity over thermal cycling. The membrane keypad overlay, where present, uses a polyester substrate with silver-ink conductive traces rated for a minimum of 1 × 10⁶ actuations per key position, eliminating the mechanical wear failure mode inherent in discrete tactile switches.

EMC hardening is implemented at the PCB level through continuous ground planes on inner layers, ferrite bead filtering on all signal lines crossing the display assembly boundary, and a shielded cable requirement on the PROFIBUS DB9 connector (pin 6 carries the cable shield to chassis ground). The 24 V DC supply input incorporates a transient voltage suppressor (TVS) array rated to clamp surge events per IEC 61000-4-5 Level 3 (2 kV line-to-earth, 1 kV line-to-line). This is a fixed hardware characteristic — not a configurable parameter — and it defines the panel’s survivability in environments with frequent inductive load switching on shared DC rails, such as contactor-heavy motor control centers.

The STN color LCD backlight has a rated half-brightness lifetime of approximately 50,000 hours at 25 °C ambient. Backlight degradation follows an Arrhenius relationship with temperature: continuous operation at 55 °C reduces effective lifetime to approximately 25,000 hours. This figure should be incorporated into planned maintenance intervals for installations in high-ambient-temperature enclosures, particularly in foundry, press, or outdoor cabinet applications.

System Integration Benefits

• Bus timing independence from HMI load: The dedicated PROFIBUS ASIC maintains DP slave response timing regardless of display processor workload. A complex alarm page render or recipe download does not introduce jitter into the cyclic data exchange, preserving loop determinism at the controller level.
• Single engineering environment: The VCP25 is configured via Bosch Rexroth IndraWorks, the same IDE used for IndraControl L/M/XM PLCs and IndraDrive servo drives. One project file covers HMI screen logic, PLC ladder/structured text, and drive parameterization — eliminating version-mismatch risk during commissioning and firmware updates.
• Structured alarm management with RTC timestamping: The VCP25 platform supports alarm buffers with real-time clock timestamps, enabling post-event sequence reconstruction without an external SCADA historian. For smaller installations, this removes a dependency on a supervisory layer for basic fault analysis.
• Tiered operator access control: Password-protected access levels (typically three to four tiers) enforce separation between operator, maintenance, and engineering functions. Operators can acknowledge alarms and initiate standard production sequences; parameter modification is restricted to authenticated personnel, reducing the risk of inadvertent setpoint changes during production.
• Fieldbus diagnostic transparency: PROFIBUS-DP diagnostic telegrams generated by the VCP25 are readable by the DP master controller. Panel communication faults are logged as structured diagnostic events with station address and error code, rather than generic I/O timeout errors, which accelerates fault isolation during troubleshooting.
• Retrofit-compatible panel footprint: The 5.7″ display fits a standard 192 × 138 mm panel cutout, which is common in DIN-compliant cabinet designs. Retrofit projects replacing older operator terminals can reuse existing cutouts without structural modification to the enclosure door.
• Wide DC supply tolerance for long cable runs: The ±20% tolerance on the 24 V DC input (19.2–28.8 V) accommodates voltage drop on extended cable runs from centralized power supplies in large machine cabinets, without requiring a local DC-DC converter or voltage regulator at the panel.
• Vibration and shock compliance for harsh environments: Rated to EN 60068-2-6 (sinusoidal vibration) and EN 60068-2-27 (mechanical shock) profiles, the VCP25 maintains electrical and display integrity in press lines, stamping machines, and mobile industrial equipment where structural vibration is continuous and shock events are periodic.

Quality Assurance & Global Logistics

Every VCP25.2DVN-003-PB-NN-PW unit dispatched by siemensplc.com is a genuine Bosch Rexroth original component, sourced through established industrial supply channels. Units are not reconditioned, relabeled, or subject to third-party firmware modification. Pre-shipment inspection covers housing marking accuracy, connector pin integrity, factory seal condition, and firmware version label against the manufacturer’s published specification for R911311507-GB1.

Logistics operations are based in Xiamen, China — a primary export hub with direct access to DHL Express, FedEx International Priority, TNT, and UPS Worldwide Expedited services. In-stock orders are processed and handed to the carrier within 1–2 business days of payment confirmation. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared as standard for all international shipments. HS code classification and declared customs value are handled accurately to minimize clearance delays at destination ports in the EU, North America, Southeast Asia, and the Middle East.

A 12-month warranty applies from the dispatch date, covering manufacturing defects and functional failures under operating conditions defined in the Bosch Rexroth VCP25 product documentation. Units exhibiting field failure within the warranty period are assessed on receipt; replacement or credit is issued on a case-by-case basis. For project-scale procurement (multiple units or ongoing supply agreements), extended warranty terms and priority stock reservation are available upon request via the contact channels below.
