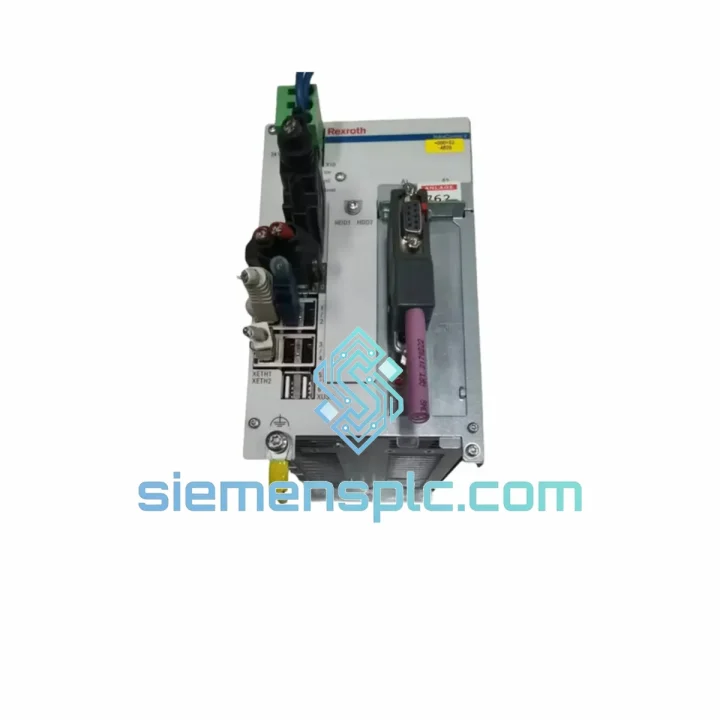

Bosch Rexroth VPB40.3D1L-1G0NN-D1D-DN-NN-FW R911171030 — IndraControl V 15″ Panel Controller for Real-Time Motion and CNC Applications

The VPB40.3D1L-1G0NN-D1D-DN-NN-FW (Material No. R911171030) is a third-generation IndraControl V panel-mount controller from Bosch Rexroth, designed to serve as the central operator interface and motion-coordination node in closed-loop industrial control architectures. Unlike standalone HMI terminals that rely on a separate PLC for logic execution, the VPB40 integrates display management, fieldbus master functions, and real-time motion sequencing within a single IP65-rated enclosure. This consolidation directly reduces inter-device latency, cabinet wiring density, and the number of discrete failure points in a control loop.

In a typical CNC or servo-coordinated system, the VPB40 occupies the top tier of the control hierarchy: it hosts the IndraMotion MTX or MLC runtime, issues position and velocity setpoints to IndraDrive servo amplifiers over a SERCOS III ring, and simultaneously renders operator graphics at the 15-inch daylight-readable TFT panel. The suffix breakdown — 3D1L (third hardware generation, 15″ display, landscape orientation), 1G0NN (1 GB RAM, no optical drive, no additional expansion), D1D (daylight-readable display), DN (standard keyboard interface), NN (no additional option), FW (factory firmware pre-loaded) — encodes the exact hardware configuration without ambiguity, which is critical when ordering a replacement or spare for an existing machine.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The VPB40.3 platform is built on a multi-core x86 architecture partitioned into two logical domains: a real-time domain running the Rexroth motion kernel (IndraMotion MTX or MLC runtime) and a non-real-time domain hosting the Windows Embedded operator environment. A hardware-enforced memory protection unit (MPU) prevents the HMI process space from corrupting the motion kernel’s cyclic task scheduler, which maintains deterministic cycle times of 250 µs to 4 ms on the SERCOS III ring regardless of HMI rendering load.

EMC Design: The front bezel is constructed from die-cast aluminum with continuous conductive gasket sealing around the display aperture, providing a Faraday-cage effect that attenuates radiated emissions and susceptibility in the 30 MHz–1 GHz band. All internal DC/DC converters operate above 200 kHz with spread-spectrum modulation to distribute switching noise below the EN 55011 Class A emission limits. Signal lines entering the rear connector block pass through common-mode chokes and transient voltage suppression (TVS) diodes rated at ±2 kV (IEC 61000-4-5 Level 3).

SERCOS III Ring Arbitration: The VPB40 acts as SERCOS III master, broadcasting Minimum Cycle Time (MDT) and Amplifier Telegram (AT) frames in a deterministic ring topology. The ring controller implements hot-plug slave detection: if a drive node drops off the ring due to a cable fault, the master can reconfigure the ring in a single communication cycle without halting the remaining axes — a critical capability in multi-axis gantry and transfer-line applications where partial-axis operation is preferable to a full e-stop.

Daylight-Readable Display (D1D suffix): The D1D display variant uses a high-brightness LED backlight rated at ≥ 700 cd/m², compared to the standard D1N variant at ~350 cd/m². This specification is not cosmetic — in machine-tool environments with overhead fluorescent or LED shop lighting at 500–1000 lux, a 350 cd/m² panel produces a contrast ratio below 2:1, making alarm states and process values difficult to read without shading. The D1D variant maintains a contrast ratio above 4:1 under the same ambient conditions, meeting ergonomic requirements of ISO 9241-307.

Thermal Management: The VPB40.3 uses a sealed convection-cooling architecture with no internal fan, eliminating the most common mechanical failure mode in panel controllers. Heat is conducted from the processor module through a copper heat spreader to the rear aluminum housing, which acts as a passive radiator. The thermal design is validated for continuous operation at 55 °C ambient with a processor junction temperature margin of ≥ 15 °C, providing a measurable reliability buffer in poorly ventilated control cabinets.

System Integration Benefits

• Single-enclosure motion + HMI consolidation: Eliminating the separate PLC-to-HMI communication link (typically Ethernet or serial) removes one asynchronous data boundary, reducing the worst-case display update latency from ~100 ms (separate devices) to <20 ms (shared memory bus).
• SERCOS III deterministic bus: Cycle jitter on the SERCOS III ring is specified at <1 µs, enabling synchronization of up to 254 drive axes with position-loop closure at the drive level — a prerequisite for electronic gearing and cam-profile applications.
• Integrated diagnostic transparency: The IndraMotion runtime exposes axis-level diagnostic data (following error, current load, thermal state) directly to the HMI process via shared memory, allowing engineers to build real-time oscilloscope views without additional hardware or OPC-UA middleware.
• IP65 front panel — no secondary enclosure required: Direct panel mounting on the machine door eliminates the cost and space of a separate stainless-steel HMI enclosure, which typically adds 2–4 kg and 150–300 mm of door depth to a machine design.
• Scalable I/O via fieldbus: The PROFIBUS DP or PROFINET master port allows connection of distributed I/O racks (e.g., Rexroth Inline, Siemens ET 200) without routing analog and digital signals back to the main cabinet, reducing cable harness length and associated voltage-drop errors on 4–20 mA loops.
• Long-term software compatibility: The VPB40.3 platform is supported by IndraWorks Engineering 14.x and later, with Bosch Rexroth committing to spare-parts availability for a minimum of 10 years post-production — a documented policy that reduces lifecycle risk for OEMs building machines with 15–20 year service expectations.
• Fanless sealed design — predictable MTBF: Removing rotating components from the thermal path raises the calculated MTBF of the controller subsystem by approximately 30–40% compared to fan-cooled equivalents, based on MIL-HDBK-217F component-count methodology.
• DVI-I external monitor output: Allows connection of a second display for remote operator stations or maintenance terminals without additional hardware, using standard DVI-to-HDMI adapters — a practical benefit during commissioning when the machine door is closed and the panel is inaccessible.

Quality Assurance & Global Logistics

Every VPB40.3D1L-1G0NN-D1D-DN-NN-FW unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Label authentication confirms the R911171030 material number against Bosch Rexroth’s published part-number matrix. Physical inspection covers connector pin integrity, display surface condition, and housing seal continuity. Where test fixtures are available, a power-on functional check verifies boot sequence completion and SERCOS III master initialization. Units are packed in anti-static foam-lined cartons with humidity indicator cards; cartons are sealed with tamper-evident tape and labeled with the material number, serial number, and dispatch date for full traceability.

Logistics from Xiamen reach major industrial hubs on the following typical transit schedules: Germany / Netherlands — 3–5 business days (DHL Express); United States (East Coast) — 3–4 business days (FedEx International Priority); Japan / South Korea — 2–3 business days (DHL Express); Southeast Asia — 1–2 business days (DHL / SF Express). Sea freight consolidation is available for bulk orders exceeding 10 units. Full export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (8537.10) — is provided with every shipment to facilitate customs clearance without delay.

All units carry a 12-month warranty from the dispatch date covering manufacturing defects and verified functional failures. Warranty claims are processed within 5 business days of receipt of the returned unit at our Xiamen facility.
