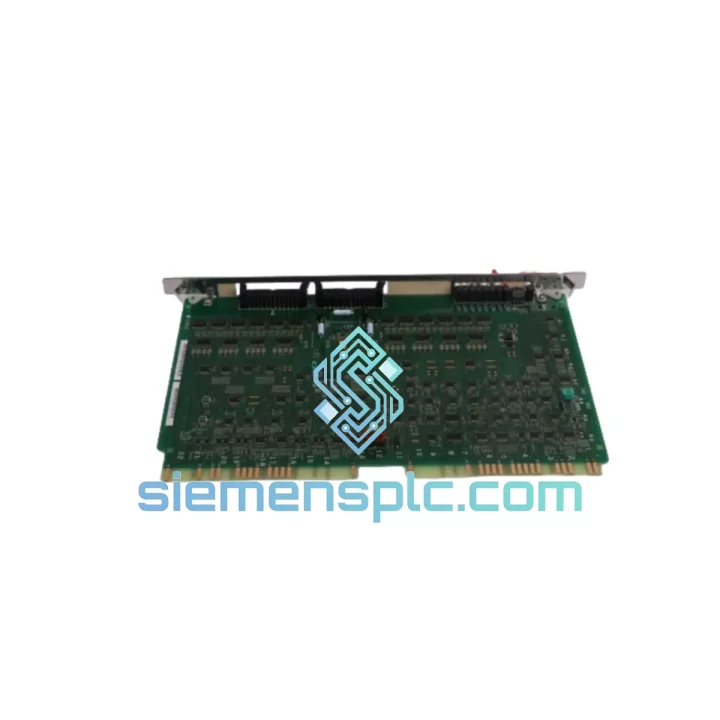

Bosch Rexroth VT-VSPA1-1-12 Proportional Valve Amplifier – VT-VSPA1 Series

REXROTH VT-VSPA1-1-12: Single-Axis Analog Amplifier Card in Proportional Hydraulic Control Loops

In a closed-loop proportional hydraulic axis, the amplifier card occupies the signal-conditioning layer between the PLC analog output and the proportional solenoid coil. Its function is not passive: it must convert a low-power command signal — typically ±10 V DC or 4–20 mA — into a precisely regulated solenoid drive current, while simultaneously applying ramp shaping, dither injection, and enable-state management. Any deviation in output current linearity or ramp timing propagates directly into valve spool displacement error, which in a pressure or flow control loop translates to process instability. The VT-VSPA1-1-12 is Bosch Rexroth’s single-axis, 12 V DC supply variant within the VT-VSPA1 amplifier card family, designed to fulfill this conditioning role with the electrical stability and parameter repeatability demanded by continuous-duty industrial hydraulic systems.

The VT-VSPA1 series was developed to serve OEM machine builders who require a standardized, field-replaceable amplifier format compatible with Rexroth’s proportional directional, pressure, and flow valve portfolio. The 12 V DC supply designation makes the VT-VSPA1-1-12 the preferred selection for mobile hydraulic platforms — agricultural machinery, construction equipment, forestry vehicles — where the onboard electrical system operates at 12 V and adding a DC-DC converter solely to power a 24 V amplifier card is neither cost-effective nor mechanically practical. The card’s DIN-rail mounting and plug-in terminal block architecture allow field replacement without rewiring, reducing mean time to repair in remote operating environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The VT-VSPA1-1-12 implements a linear current-control output stage rather than a PWM-only topology. This architectural choice has a direct consequence on solenoid coil thermal behavior: a linear output stage maintains a continuous regulated current without the switching transients inherent to high-frequency PWM drivers, which reduces conducted emissions on the solenoid wiring harness and eliminates the need for external LC filters on the output line. In electrically dense mobile machine cabinets — where CAN bus transceivers, engine ECUs, and display controllers share a common 12 V rail — this characteristic is operationally significant.

The dither injection circuit operates by superimposing a low-amplitude AC signal onto the DC solenoid drive current. The physical purpose is to maintain the valve spool in a state of micro-vibration, preventing static friction (stiction) from introducing a dead-band at the null position. Dither frequency is typically set in the range of 50–200 Hz depending on valve spool mass and spring rate; amplitude is calibrated to the minimum value that eliminates hysteresis without inducing audible valve noise or measurable flow ripple. The VT-VSPA1-1-12 provides independent potentiometer adjustment for both parameters, allowing field calibration without card replacement.

The ramp generator stage processes the command signal before it reaches the current amplifier. It applies a first-order lag to step changes in the command input, converting instantaneous demand transitions into controlled ramp profiles. This prevents hydraulic shock — the pressure spike generated when a proportional valve opens or closes faster than the hydraulic circuit’s compliance can absorb. In press control and injection molding applications, uncontrolled pressure spikes cause mold flash, tooling fatigue, and seal degradation. The VT-VSPA1-1-12’s independent ramp-up and ramp-down adjustment allows asymmetric profiling: a fast opening ramp for cycle time optimization combined with a slow closing ramp for pressure-spike suppression.

The hardware enable input is a discrete logic pin that gates the output stage independently of the analog command signal. When the enable input is de-asserted — by a safety relay, E-stop circuit, or PLC digital output — the solenoid drive current is forced to zero regardless of the analog command level. This architecture ensures that a PLC software fault that holds a non-zero analog output cannot maintain valve displacement during a machine safety event. The enable pin thus functions as a hardware-enforced safe state, a requirement in machinery safety applications governed by EN ISO 13849.

System Integration Benefits

• Direct 12 V DC compatibility: Eliminates the DC-DC converter stage required when using 24 V amplifier cards in mobile hydraulic platforms, reducing BOM cost, panel space, and one additional failure mode from the power supply chain.
• Plug-in terminal block architecture: The card separates from its terminal base without disturbing field wiring. Replacement time in a trained technician’s hands is under 10 minutes, directly reducing hydraulic system downtime cost in production-critical applications.
• Independent ramp channels: Asymmetric ramp profiling (separate up/down adjustment) allows the control engineer to optimize cycle time and pressure-spike suppression independently, without compromise between the two objectives.
• Calibrated dither output: Field-adjustable dither frequency and amplitude allow the card to be matched to the specific valve model’s spool mass and spring characteristics, achieving minimum hysteresis without introducing flow ripple into the hydraulic circuit.
• Hardware enable gate: The discrete enable input provides a hardware-enforced safe state that operates independently of the analog command path, satisfying the architectural requirements of EN ISO 13849 Category 1 and above safety functions.
• LED diagnostic indicators: Three-state LED array (power, enable, output) provides immediate visual fault isolation at the card level without requiring a laptop, oscilloscope, or fieldbus diagnostic tool — critical for first-response troubleshooting in field environments.
• Standardized form factor: The VT-VSPA1 DIN-rail format is consistent across the Rexroth amplifier card family, allowing a single spare card to serve multiple machine types within a fleet, reducing spare parts inventory carrying cost.
• Broad valve compatibility: The card’s analog command interface and adjustable output current range make it compatible with Rexroth 4WRPEH, 4WRPH, DBEM, DREM, 2FRE, and 2FRM series proportional valves, as well as third-party proportional solenoid valves with equivalent coil impedance specifications.
• Low conducted emissions: The linear output stage architecture avoids high-frequency switching transients on the solenoid drive line, reducing interference with co-located CAN bus, analog sensor, and encoder wiring in shared cable trays.
• Deterministic response: The analog signal path from command input to solenoid current output has a defined, measurable response time, allowing control engineers to include the amplifier’s transfer function in closed-loop stability analysis without uncertainty from digital processing latency.

Quality Assurance & Global Logistics

Every VT-VSPA1-1-12 unit supplied by siemensplc.com is sourced through verified channels: authorized Bosch Rexroth distribution, OEM surplus from documented machine builders, or factory-sealed inventory with intact Rexroth labeling and date codes. No grey-market repackaged or relabeled units are accepted into stock. Each card undergoes visual inspection for housing integrity, authentic Rexroth part marking, and terminal block condition before it is listed as available.

Where bench test equipment is available, amplifier cards are powered at rated supply voltage and output current is verified against the command input before shipment. Units are packed in ESD-safe anti-static bags, placed in foam-lined cartons, and sealed for international transit. Inspection records and lot traceability data are retained for 12 months post-shipment to support warranty claims and customs documentation requests.

Shipments originate from Xiamen, China. Standard international express transit via DHL or FedEx reaches most destinations in Asia, Europe, North America, and the Middle East within 3–7 business days. Sea freight consolidation is available for volume orders. Full export documentation is provided as standard: commercial invoice, packing list, and Certificate of Origin. HS code classification and customs value declaration are prepared in accordance with the destination country’s import requirements. For urgent replacement scenarios, same-day dispatch is available on confirmed in-stock units when orders are placed before the daily cutoff.

A 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize customer downtime: a replacement unit is dispatched upon receipt of the failed card and confirmation of the fault condition.
