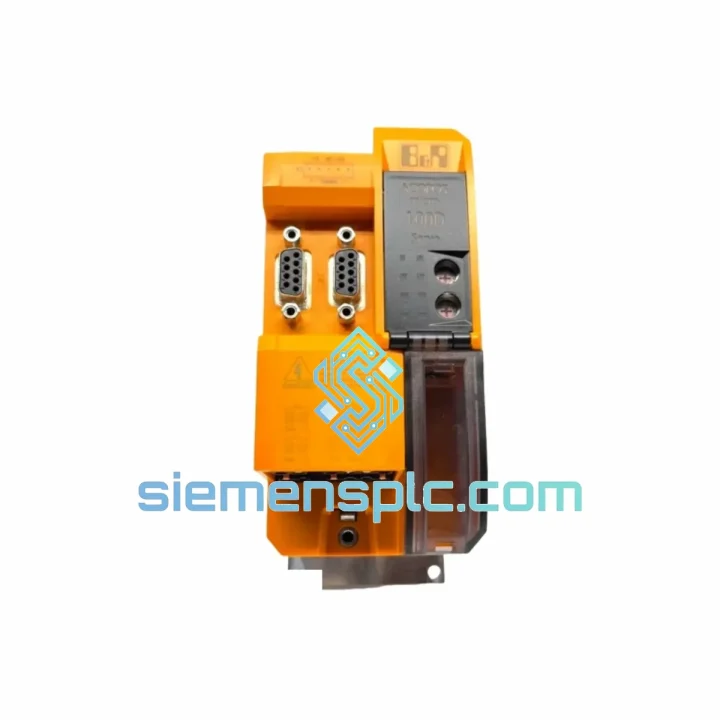

B&R 80VD100PD.C000-01 Inverter Module

B&R 80VD100PD.C000-01 – Stop the Clock on Your Downtime

Every minute your line sits idle, you’re bleeding money. A failed inverter module in an ACOPOS servo drive system doesn’t just halt one axis — it can cascade into a full production stop across synchronized multi-axis cells. The B&R 80VD100PD.C000-01 is the exact replacement you need, and we have it on the shelf in Xiamen right now. No lead-time negotiation. No waiting on factory allocation. We ship the same business day on confirmed orders received before 15:00 CST.

This is not a refurbished pull. This is not a grey-market gamble. Every unit we dispatch is a verified original ACOPOS series component, traceable to authorized supply channels, with physical inspection completed before it leaves our warehouse. If your maintenance team is standing by waiting for a part, this is the call you make.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 80VD100PD.C000-01 is the power inverter stage within the ACOPOS drive stack. Before pulling the old unit, work through this sequence — it prevents chasing ghost faults after the swap.

Fault Codes That Point Directly to This Module:

• Error 6010 / 6011 – DC bus overvoltage / undervoltage: If bus voltage reads normal at the supply but the drive still throws 6010, the internal measurement circuit on the inverter module is suspect. Swap the module before replacing the supply unit.
• Error 6030 – Power stage overtemperature: A reading of 999 °C or -40 °C in Automation Studio diagnostics means the NTC thermistor circuit is open or shorted. The module needs replacement — cleaning the heatsink fins will not fix this.
• Error 6050 – Phase current imbalance: Asymmetric U/V/W current readings with a known-good motor cable almost always indicate a degraded IGBT in one phase leg. Do not attempt to run at reduced load — thermal runaway risk is real.
• Error 29200 – Encoder feedback loss after power cycle: The inverter module’s internal 24V auxiliary supply feeds the encoder interface on some ACOPOS configurations. A failing module can starve the encoder supply intermittently, producing this secondary symptom.

Replacement Field Checklist:

• Isolate and lock out the DC bus. Verify <50 VDC with a calibrated meter before touching any bus bar. Residual charge in the capacitor bank can persist 5+ minutes after power-off at 750 VDC nominal.
• Document the existing module’s firmware revision via Automation Studio (Configuration → Drive → Firmware Info) before removal. The replacement must match or exceed this revision — mismatched firmware between inverter and supply modules generates a compatibility fault on first power-up.
• Photograph the rotary address switch setting on the front panel before removal. Replicate exactly on the new unit. Wrong node address means the module will not appear in the POWERLINK scan.
• Inspect the DC bus connector pins and backplane contacts for carbon tracking or arcing marks. A hard fault may have damaged the connector. Clean with isopropyl alcohol and a non-conductive brush before inserting the replacement.
• After installation: power 24V logic supply first, confirm the module appears in the POWERLINK node list, then enable the DC bus. Do not enable the axis until the drive reports Ready status with no active faults.
• Run a motor identification cycle (Autotuning) if the replacement is from a different production batch. Slight differences in current measurement calibration can cause torque ripple on precision axes.

Reliability in Harsh Conditions

The ACOPOS 80VD100PD.C000-01 was built for environments that destroy lesser hardware. The power stage uses press-fit IGBT modules with direct copper bonding — a construction method that eliminates the solder fatigue failures common in thermally cycled applications. Where solder-bonded IGBTs typically fail within 3–5 years under aggressive start-stop duty cycles, direct-bonded units routinely exceed 10 years in the same conditions.

Vibration resistance is addressed through conformal coating on the control PCB and mechanically isolated capacitor mounting. The module meets IEC 60068-2-6 vibration testing requirements — 10 to 150 Hz, 1g continuous. For installations on stamping presses or near large compressors, this is the specification that separates a module that lasts from one that fails at the solder joints within 18 months.

The conformal coating on all signal-level PCBs provides protection against salt fog and industrial coolant mist — relevant in machining centers where the drive cabinet sits near the cutting zone. If your installation is in a high-humidity environment, verify cabinet door seals and consider active cooling rather than a heat exchanger if ambient dew point is a concern.

The integrated fan assembly uses dual ball bearings rated for 50,000 hours MTBF. Fan failure is one of the most common causes of thermal shutdown faults on ACOPOS drives in high-ambient environments. If your existing module shows intermittent thermal faults and the fan is more than 5 years old, a proactive swap during scheduled maintenance costs a fraction of an emergency production stop.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — direct DHL, FedEx, and UPS gateway access. The unit is physically in our warehouse, inspected, and ready to pack the moment your order is confirmed. This is not a drop-ship arrangement.

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days
• Northeast Asia (Japan, South Korea, Taiwan): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Italy, Poland, Netherlands): 4–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• Australia / New Zealand: 3–5 business days

Every shipment includes a commercial invoice, packing list, and certificate of origin — the documentation your customs broker needs to clear without delay. For countries with specific import licensing requirements for industrial automation equipment, contact us before ordering and we will advise on the correct HS code declaration and any required end-user documentation.

For genuinely critical situations — line down, production stopped, every hour costs money — contact us directly on WhatsApp. We can arrange same-day courier collection and provide a tracking number within 2 hours of payment confirmation.
