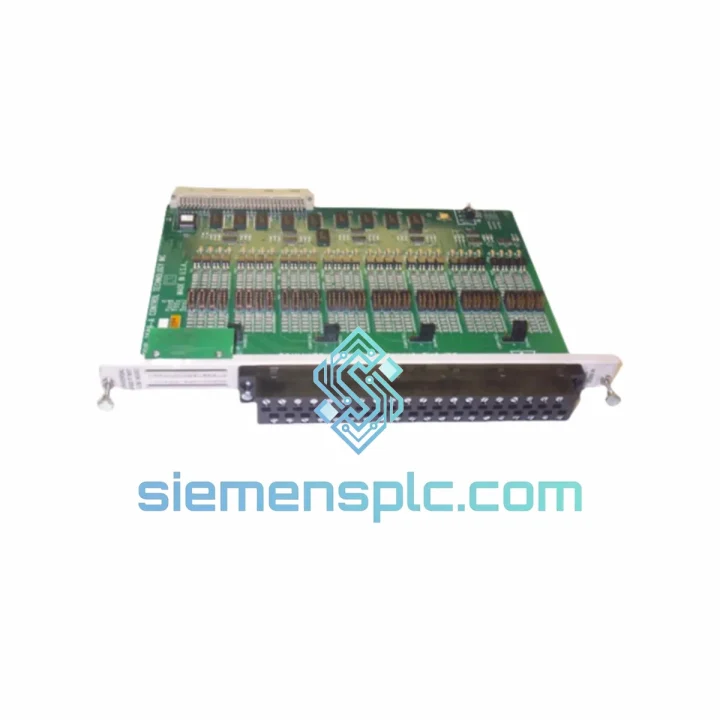

CTI 901B-2589-A Digital Input Module – 900 Series

CTI 901B-2589-A 32-Point Digital Input Module: Signal Acquisition Architecture in 505-Based Control Systems

The CTI 901B-2589-A is a 32-point discrete input module engineered for deployment within CTI 900 Series I/O racks and fully backward-compatible with Siemens SIMATIC 505 and Texas Instruments TI 505 programmable controller platforms. Its primary function within a control loop is deterministic field-signal acquisition — converting 24 V DC discrete field signals into backplane-readable logic states that the host CPU processes within a fixed scan cycle. Unlike general-purpose I/O cards, the 901B-2589-A is designed around the electrical and mechanical constraints of the 505 backplane standard, making it a direct, zero-configuration replacement in legacy and active 505-architecture systems.

In process control and discrete manufacturing environments, the integrity of the input signal chain directly governs the reliability of the entire control loop. A single spurious input state — caused by contact bounce, ground noise, or EMI-induced transients — can trigger unintended actuator commands or force a CPU into a fault state. The 901B-2589-A addresses this at the hardware level through optical isolation on each input channel, ensuring that field-side voltage transients do not propagate to the logic-side backplane circuitry.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 901B-2589-A implements per-channel optical isolation as its primary EMC defense mechanism. Each of the 32 input channels routes the field-side 24 V DC signal through an LED emitter within an optocoupler package. The phototransistor on the logic side switches in response to the emitted light, with no direct electrical path between the field conductor and the backplane data bus. This galvanic separation provides a minimum isolation barrier of 1,500 V AC between field and logic domains, suppressing common-mode noise, ground loop currents, and high-frequency transients that are endemic in industrial panel environments with variable-frequency drives, solenoid coils, and relay switching loads operating in proximity.

The module’s input filter network introduces a hardware debounce delay — typically in the range of 3 ms to 10 ms depending on revision — that attenuates contact bounce from mechanical switches and reed relays before the signal is latched into the backplane register. This is a passive RC filter stage, not a software-configurable parameter, which means the debounce characteristic is deterministic and independent of CPU scan load. In high-noise environments such as stamping presses or conveyor motor panels, this hardware-level filtering prevents false input transitions that would otherwise require complex software filtering routines in the CPU ladder program.

The 32 input channels are organized into groups sharing a common field-side return, which simplifies field wiring by allowing multiple sensors to share a common DC negative rail without individual return conductors per channel. The backplane connector is a high-density edge connector conforming to the 505 mechanical standard, with gold-plated contacts rated for a minimum of 500 insertion cycles — a specification relevant in maintenance environments where modules are periodically removed for inspection or replacement.

The module’s status LED array — one LED per input channel — provides local visual indication of each channel’s logic state without requiring the CPU to be online or the programming terminal to be connected. This is a significant diagnostic advantage during commissioning and fault-finding: a technician can verify field wiring continuity and sensor output states by observing the LED panel directly, reducing mean time to repair (MTTR) in fault scenarios.

System Integration Benefits

• Zero-configuration backplane compatibility: The 901B-2589-A installs into any slot of a CTI 900 Series or Siemens 505 I/O rack without address jumpers or DIP switch configuration. Slot addressing is handled automatically by the backplane, eliminating a common source of commissioning errors in multi-module racks.
• Deterministic scan-cycle contribution: The module presents its 32-bit input register to the CPU backplane within the backplane arbitration window, contributing a fixed, predictable latency to the CPU scan cycle. This is essential in time-critical control loops where input-to-output response time must be bounded.
• Diagnostic transparency via LED matrix: The 32-channel LED status array allows field-level signal verification without software tools, reducing diagnostic dependency on programming terminals and accelerating fault isolation during production downtime events.
• Galvanic isolation for mixed-voltage field environments: The 1,500 V AC isolation barrier allows the module to interface with field devices operating on separate DC supply rails without ground reference conflicts, supporting installations where field instruments and PLC logic share different earthing systems.
• Direct legacy system compatibility: Full electrical and mechanical compatibility with Siemens SIMATIC 505 and TI 505 racks means the 901B-2589-A can replace end-of-life OEM modules without rack modification, CPU reprogramming, or I/O address remapping — preserving existing ladder logic investments.
• Hardware-level input debounce: The passive RC filter network on each channel eliminates contact bounce artifacts at the hardware layer, reducing the need for software timer-based debounce routines in the CPU program and freeing scan cycle capacity for control logic execution.
• High channel density in single slot: 32 discrete inputs in a single backplane slot maximizes I/O density in constrained rack configurations, deferring the need for rack expansion and reducing overall system BOM cost in high-point-count applications.
• Broad operating temperature range: Rated operation from 0 °C to +60 °C covers the thermal envelope of standard industrial panel enclosures without forced cooling, supporting deployment in outdoor cabinets, foundry environments, and non-climate-controlled plant floors.

Quality Assurance & Global Logistics

Every CTI 901B-2589-A unit supplied by siemensplc.com is sourced through verified distribution channels with full traceability to CTI’s manufacturing records. Prior to shipment, each module undergoes a structured inspection protocol: physical examination of connector contacts, housing integrity, and label authenticity; cross-reference of serial number and lot code against manufacturer documentation; and where stock condition permits, bench-level power-on verification of LED status response. Units that do not pass inspection are quarantined and not listed for sale.

All orders are fulfilled from our warehouse in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard international transit times are 3 to 5 business days to major industrial hubs in Europe, Southeast Asia, the Middle East, and the Americas. For bulk procurement, sea freight consolidation is available with full export documentation: commercial invoice, packing list, certificate of origin, and HS Code 8537.10 classification. A 12-month warranty covers manufacturing defects from the date of shipment, with DOA replacement processed within 5 business days of confirmed fault report.
