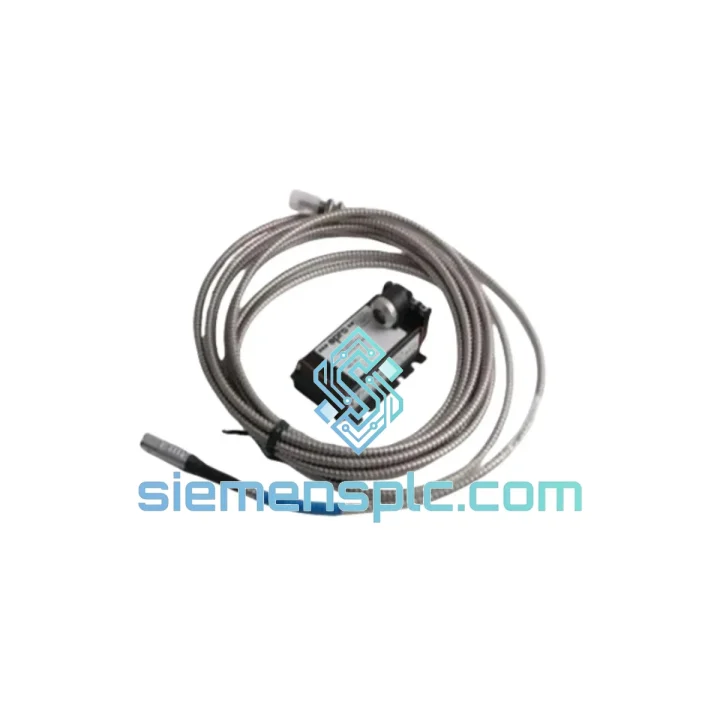

Emerson EPRO PR6424/000-040-CN-CON021 — Eddy Current Proximity Sensor for Rotating Machinery Protection

The PR6424/000-040-CN-CON021 is a non-contact eddy current proximity probe manufactured by Emerson EPRO, designed for continuous shaft displacement, radial vibration, and axial position measurement in critical rotating machinery. The sensor operates on the principle of electromagnetic induction: a high-frequency oscillating current is driven through the probe coil, generating an alternating magnetic field. When a conductive target — typically a steel or stainless-steel shaft — enters the field, eddy currents are induced on the target surface, loading the coil and producing a measurable impedance shift. This impedance change is converted by a paired signal conditioner (CON021 series) into a DC voltage output linearly proportional to the gap distance between probe tip and target surface.

The “/000-040” suffix in the part number designates a 40 mm probe body length with a standard 8 mm tip diameter coil geometry, optimized for a linear measurement range of approximately 0.25 mm to 2.25 mm (gap). The “-CN” designation indicates a cable-integrated (non-connector) construction, eliminating the intermediate connector junction that is a common failure point in high-vibration environments. The “CON021” suffix specifies compatibility with the Emerson EPRO CON021 signal conditioner, which supplies the required −24 VDC bias voltage and conditions the output to the standard −2 VDC to −18 VDC range used by EPRO MMS 6000 series monitors and Bently Nevada 3500 series racks.

This probe is fully compliant with API 670 (5th Edition) machinery protection system requirements, making it a direct-fit replacement in turbine, compressor, pump, and motor protection systems across petrochemical, power generation, LNG, and heavy industrial sectors. Every unit shipped from our Xiamen, China facility is sourced through verified supply channels and carries a 12-month quality warranty.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PR6424 probe coil is wound on a ferrite core and encapsulated in a PEEK (polyether ether ketone) tip housing. PEEK provides a dielectric constant stable across the full operating temperature range, preventing thermal drift from introducing measurement offset — a critical requirement in steam turbine environments where probe tip temperatures can approach 110°C during transient load events. The coil impedance at the nominal operating frequency (typically 1 MHz for 8 mm tip geometry) is matched to the CON021 oscillator/demodulator circuit, ensuring the system operates within the validated linear region without requiring field calibration adjustments when replacing probes of the same part number.

The integral cable construction (CN designation) eliminates the probe-to-extension-cable connector, which in conventional two-piece probe systems is the primary site of signal degradation due to fretting corrosion, moisture ingress, and mechanical loosening under vibration. The cable shield is a double-layer braid construction — inner braid provides RF shielding against the probe’s own oscillator frequency, while the outer braid provides low-impedance grounding continuity to the conditioner chassis. This dual-shield architecture reduces common-mode noise pickup in environments with high electromagnetic interference (EMI) from variable-frequency drives (VFDs), large motor starters, and bus bars.

The probe body is machined from 316L stainless steel, providing corrosion resistance in hydrogen sulfide (H₂S) and chloride-bearing atmospheres common in upstream oil and gas installations. The M14 × 1.5 thread form is compatible with standard EPRO probe holders and lock nuts, allowing installation torque to be applied to the body rather than the cable, preventing torsional stress on the integral cable root — a common cause of premature cable failure in field installations.

EMC performance is governed by the probe’s inherent differential measurement topology: because the output is a function of impedance change relative to a stable oscillator reference, low-frequency magnetic field interference (50/60 Hz power frequency) is rejected by the demodulation stage in the CON021 conditioner. The system’s −3 dB frequency response extends to 10 kHz, sufficient to capture sub-synchronous instability events (oil whirl, oil whip) and blade-passing frequencies in most industrial turbomachinery applications.

System Integration Benefits

• API 670 drop-in compliance: The PR6424/000-040-CN-CON021 meets all dimensional, electrical, and performance requirements of API 670 (5th Edition) without requiring system re-validation when used as a direct replacement in existing EPRO-based protection racks.
• Deterministic output latency: The CON021 conditioner demodulation circuit produces a DC output with a settling time under 1 ms for step gap changes, ensuring the protection system receives a valid measurement within one scan cycle of a 1 kHz monitor sampling loop.
• Zero mechanical wear: Non-contact measurement eliminates probe-to-shaft contact, removing the wear mechanism that limits the service life of contact-type displacement transducers. Mean time between replacement (MTBR) in clean environments exceeds 10 years.
• High common-mode rejection: The dual-shield cable and differential conditioner topology provide >60 dB common-mode rejection ratio (CMRR) at 50/60 Hz, maintaining measurement accuracy in switchgear rooms and motor control centers where magnetic field densities can exceed 1 mT.
• Thermal stability: PEEK tip encapsulation limits thermal sensitivity coefficient to <0.05% of full-scale per °C, preventing false alarms during machine warm-up transients where shaft temperature gradients alter target surface resistivity.
• Direct monitor compatibility: Output voltage range (−2 V to −18 V) is natively compatible with EPRO MMS 6350, MMS 6110, and MMS 6120 monitor cards, as well as Bently Nevada 3500/40M and 3500/42M modules when used with the appropriate input range configuration.
• Simplified spare-parts management: The integral cable eliminates the need to stock separate extension cables and connectors as independent spare parts, reducing the bill of materials for a complete probe replacement kit to a single line item.
• Diagnostic transparency: The linear DC output allows the monitor’s gap voltage to be read directly as a proxy for probe-to-shaft clearance, enabling maintenance engineers to verify correct probe installation gap (typically 1.0 mm ± 0.1 mm, corresponding to approximately −10.5 VDC ± 0.8 VDC) without specialized calibration equipment.

Quality Assurance & Global Logistics

Every PR6424/000-040-CN-CON021 unit dispatched from our Xiamen, China facility is sourced through verified industrial supply channels and subjected to incoming inspection covering label authenticity, connector and cable integrity, and coil impedance verification against EPRO factory reference data. Units that do not meet specification are quarantined and returned — no compromised stock enters our dispatch inventory.

Xiamen’s geographic position as a major South China Sea port provides direct access to DHL, FedEx, and UPS international express networks, with typical transit times of 3–5 business days to Southeast Asia, 4–6 days to Europe and the Middle East, and 5–7 days to North America. All shipments are packed in anti-static foam-lined cartons with desiccant inserts to protect the probe coil and cable assembly from humidity during transit. Commercial invoice, packing list, and certificate of conformance are included as standard documentation. A 12-month warranty covers defects in materials and workmanship from the date of shipment.
