Emerson Fisher CL6721X1-A4 12P1824X012 Discrete I/O Module – DeltaV CL Series

Emerson Fisher CL6721X1-A4 12P1824X012 — DeltaV CL Series Discrete I/O Module in Process Control Architecture

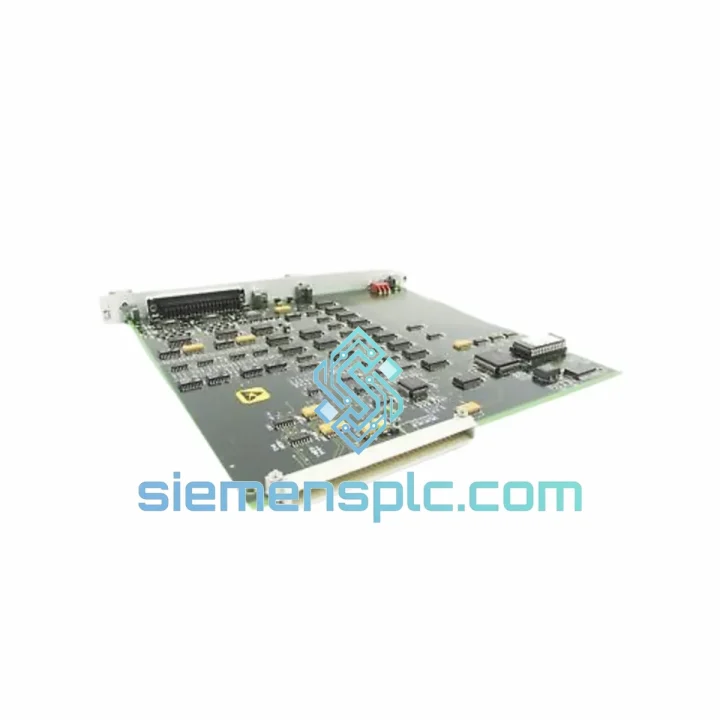

The Emerson Fisher CL6721X1-A4 12P1824X012 is a discrete I/O module engineered for the DeltaV CL Series distributed control system platform. Within a DCS control loop, this card occupies the field-interface tier: it receives binary state signals from field devices — valve limit switches, motor run/stop contacts, pressure switch outputs, and relay feedback circuits — and transmits discrete command outputs back to actuators and motor starters. Its role is deterministic signal conditioning and channel-level isolation between the field wiring domain and the DeltaV controller backplane, ensuring that transient field faults do not propagate into the control logic layer.

In a typical DeltaV node architecture, the CL6721X1-A4 12P1824X012 mounts onto a CL-series I/O carrier. The carrier provides the mechanical interface, backplane power distribution, and the proprietary CL communication bus that links each I/O module to the DeltaV controller. The module’s internal logic scans all discrete channels at a fixed cycle rate, packages the channel state data into backplane frames, and delivers them to the controller with deterministic latency — a prerequisite for interlock and safety-related discrete logic executed at the DCS level.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CL6721X1-A4 12P1824X012 implements opto-isolation at the channel boundary. Each discrete input channel passes the field signal through a phototransistor coupler, creating a galvanic break between the field wiring loop and the module’s internal 3.3 V logic domain. This architecture limits the maximum fault energy that can reach the backplane bus to the forward voltage drop of the LED emitter — typically under 2 V — regardless of field-side transient magnitude. In environments with variable-frequency drives, large motor contactors, or long cable runs susceptible to induced EMF, this isolation boundary is the primary defense against common-mode noise injection into the DCS controller.

On the output side, the module’s driver stage incorporates current-limiting circuitry that clamps output current within the rated load envelope. This prevents thermal runaway in the output transistor during short-circuit conditions on the field wiring, and the module’s onboard diagnostics register the overcurrent event as a channel fault — surfaced in DeltaV Explorer as a discrete alarm — rather than causing silent output failure.

The backplane interface logic implements a watchdog handshake with the DeltaV controller. If the controller fails to poll the module within the configured scan timeout window, the module drives all outputs to their configured fail-safe state (de-energized by default). This fail-safe-on-loss-of-communication behavior is a fundamental requirement for process safety applications and is implemented in hardware logic, independent of the module’s firmware execution path.

EMC performance is further reinforced by the module’s PCB layout: power and signal planes are separated, decoupling capacitors are placed at each IC power pin, and the chassis ground connection through the carrier provides a low-impedance return path for shield currents. The result is a module that meets IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity levels appropriate for industrial panel environments.

System Integration Benefits

• Native DeltaV Auto-Sensing: When inserted into a CL carrier, the DeltaV controller automatically identifies the module type, channel count, and I/O configuration without manual parameter entry, reducing commissioning errors in large-scale I/O marshalling projects.
• Channel-Level Diagnostics: Each input and output channel reports its state, fault status, and wire-break condition (where applicable) directly to DeltaV Explorer, enabling maintenance personnel to isolate a single failed field device without loop tracing.
• Deterministic Scan Latency: The CL backplane bus operates on a fixed-cycle polling schedule, guaranteeing that discrete state changes are delivered to the controller within a bounded time window — a requirement for interlock logic with defined response time budgets.
• Hot-Swap Module Replacement: Compatible CL carrier configurations support online module extraction and insertion without de-energizing the carrier or interrupting adjacent channel operation, reducing planned maintenance downtime to the module swap interval only.
• Fail-Safe Output Behavior: Hardware-enforced fail-safe state on communication loss ensures that field actuators revert to a defined safe position independent of controller or network availability.
• Scalable Node Architecture: Multiple CL6721X1-A4 12P1824X012 modules can populate a single carrier, allowing engineers to scale discrete I/O density within a single DeltaV node without adding controller hardware.
• Backward Compatibility: Emerson’s CL series maintains hardware and firmware backward compatibility across DeltaV system versions, protecting capital investment in existing I/O infrastructure during DCS software upgrades.
• Reduced Marshalling Complexity: High channel density per module slot lowers the total module count in a marshalling cabinet, reducing terminal block count, cable tray fill, and associated installation labor hours.

Quality Assurance & Global Logistics

Every Emerson Fisher CL6721X1-A4 12P1824X012 unit dispatched from our Xiamen, China facility is a genuine Emerson original component. Prior to shipment, each module undergoes a structured inspection protocol: label and date-code authentication, visual PCB inspection for handling damage, and a power-on communication test to confirm backplane bus response. Units are packed in anti-static ESD bags, enclosed in foam-lined cartons rated for international air freight handling, and sealed with tamper-evident tape. A certificate of conformance is included with every shipment.

Logistics from Xiamen cover all major industrial regions. Standard export documentation — commercial invoice, packing list, and HS code declaration (HS 8537.10) — is prepared for every order. Express air freight via DHL, FedEx, and UPS typically delivers to North America and Europe within 3–5 business days; Southeast Asia and Middle East destinations within 2–4 business days. For project BOM quantities, sea freight consolidation is available with full export customs clearance handled by our licensed freight forwarder. All 12-month warranty claims are processed directly through our Xiamen operations center, with advance replacement available for qualified accounts.
