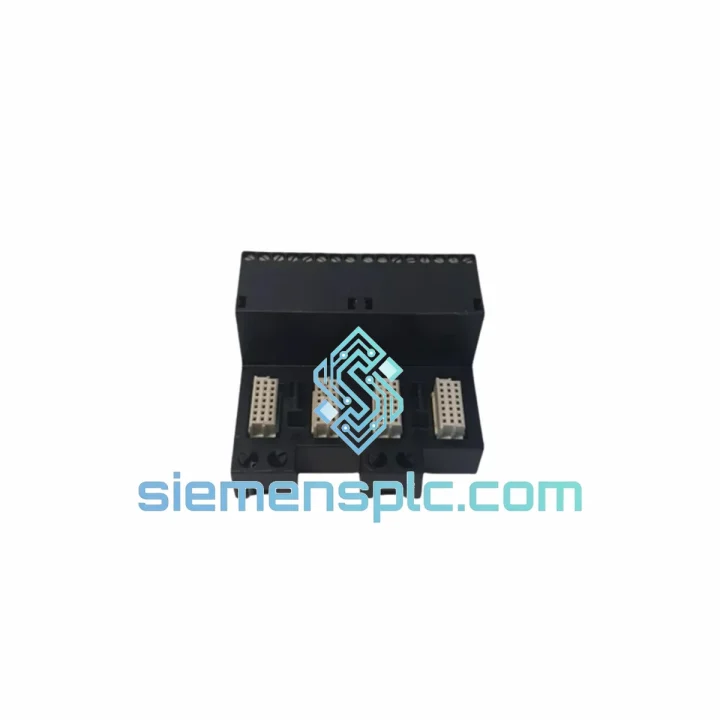

EMERSON KC4011X1-BC1 12P6745X012 Terminal Block – DeltaV Series

EMERSON KC4011X1-BC1 12P6745X012 DeltaV Terminal Block — Field Termination Architecture in Process Control Loops

The EMERSON KC4011X1-BC1 12P6745X012 is a factory-original terminal block module engineered for deployment within the EMERSON DeltaV distributed control system (DCS) platform. Within a DeltaV control loop, the terminal block occupies the critical boundary layer between field instrumentation and the I/O subsystem — it is the physical interface where 4–20 mA analog signals, discrete contact closures, and HART communication channels are terminated, marshalled, and routed to the corresponding I/O card. Any degradation at this junction — whether from oxidized contacts, loose screw torque, or counterfeit metallurgy — directly compromises signal fidelity and loop integrity. The KC4011X1-BC1 12P6745X012 is designed to eliminate these failure modes through precision-machined terminal geometry, silver-plated contact surfaces, and a mechanical locking mechanism that maintains rated clamping force across the full operating temperature range of −20 °C to +70 °C.

In marshalling cabinet architectures, this terminal block serves as the structured wiring node between multi-pair field cables and the DeltaV I/O carrier. Its footprint and pin-out are fully compatible with EMERSON’s standard DIN-rail mounting system, enabling direct drop-in replacement without re-engineering the cabinet layout or modifying existing cable schedules. For brownfield modernization projects — where minimizing loop downtime is a primary constraint — this characteristic alone represents measurable engineering value.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KC4011X1-BC1 12P6745X012 terminal block is not a passive connector strip — its mechanical and electrical design reflects the deterministic reliability requirements of continuous-process DCS environments. Several hardware characteristics merit detailed examination:

Contact Geometry and Clamping Mechanism: The screw-type clamping design applies a defined, measurable force to the conductor cross-section. Unlike spring-clamp alternatives that can exhibit creep under sustained vibration, the screw terminal maintains a stable contact resistance — typically below 5 mΩ per pole — across the rated temperature cycle. This is critical in analog signal loops where a 1 mΩ variation in termination resistance can introduce a measurable offset error in a 4–20 mA transmitter circuit.

Silver-Plated Contact Surfaces: Silver plating on the contact interface suppresses the formation of resistive oxide layers that develop on bare copper under humid or mildly corrosive atmospheric conditions. In process plant environments — where H₂S, SO₂, and chlorine compounds are present at trace concentrations — silver’s relatively stable surface chemistry maintains low and consistent contact resistance over a multi-year service interval without requiring periodic maintenance intervention.

EMC Passive Shielding Compatibility: The terminal block’s mechanical design accommodates shield drain wire termination alongside signal conductors. Proper shield grounding at the marshalling cabinet — with the shield terminated at one end only — is essential for suppressing common-mode noise on long field cable runs. The KC4011X1-BC1 12P6745X012 provides the physical termination point for this grounding architecture without requiring additional ground bus bars in most standard cabinet configurations.

Thermal Derating Behavior: At the rated 10 A per pole, the terminal block operates within its thermal envelope up to +70 °C ambient. In high-density marshalling cabinets where thermal loading from adjacent components can elevate local ambient temperature, the rated current should be derated per EMERSON’s published thermal derating curves — typically 0.5 A per 10 °C above +40 °C — to maintain contact integrity over the component’s service life.

Mechanical Keying and Mis-wiring Prevention: The physical form factor of the KC4011X1-BC1 12P6745X012 is dimensionally matched to the DeltaV I/O carrier interface. This mechanical keying prevents incorrect module seating and reduces the probability of field wiring errors during initial commissioning or maintenance replacement — a non-trivial consideration in multi-loop marshalling assemblies with hundreds of individual terminations.

System Integration Benefits

• Zero-modification replacement: Pin-out and DIN-rail footprint are identical to the original EMERSON specification, eliminating re-engineering costs and reducing replacement time to under 15 minutes per terminal block in a standard marshalling cabinet.
• Signal loop integrity preservation: Silver-plated contacts maintain contact resistance below 5 mΩ, preventing offset errors in 4–20 mA analog loops and preserving HART communication signal margins above the 0.5 mA peak-to-peak threshold required for reliable multi-drop polling.
• Deterministic loop response: Stable termination resistance eliminates the variable contact impedance that can introduce noise into the DeltaV I/O scan cycle, supporting the controller’s deterministic execution period without introducing jitter from the field wiring layer.
• Diagnostic transparency: Consistent termination quality ensures that DeltaV’s built-in loop diagnostics — including HART device status polling and analog input range checking — produce accurate, actionable results rather than false alarms caused by degraded termination contacts.
• Reduced unplanned downtime: Verified OEM-grade construction eliminates the premature failure modes associated with counterfeit or non-OEM terminal blocks, including contact delamination, insulation cracking under thermal cycling, and screw thread stripping under repeated maintenance access.
• Broad conductor compatibility: The 0.5–4.0 mm² wire range accommodates both instrument cable (typically 0.75–1.5 mm²) and power feed conductors (up to 4.0 mm²) within a single terminal block type, simplifying cabinet BOM management and spare parts inventory.
• Compliance with IEC 60947-7-1: The terminal block meets the low-voltage switchgear and controlgear standard for terminal blocks for copper conductors, ensuring compatibility with plant electrical safety audits and insurance inspection requirements.
• Long-term spare parts availability: Sourced through verified industrial supply channels, the KC4011X1-BC1 12P6745X012 is available for immediate shipment, supporting MRO procurement strategies that require confirmed stock rather than extended lead-time factory orders.

Quality Assurance & Global Logistics

Every unit of the EMERSON KC4011X1-BC1 12P6745X012 supplied by siemensplc.com undergoes a structured pre-shipment verification protocol. Physical inspection confirms that part markings, date codes, and lot numbers are consistent with EMERSON’s OEM production standards. Units exhibiting any evidence of re-marking, re-packaging, or non-OEM origin are rejected at intake. Traceability documentation — including supplier chain records and inspection reports — is retained on file and available to qualified buyers upon request.

Logistics operations are managed from our warehouse in Xiamen, Fujian Province, China — a major export hub with direct access to international freight carriers. Standard export shipments are dispatched via DHL Express, FedEx International Priority, and UPS Worldwide, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. For bulk orders, sea freight consolidation from Xiamen Port is available with full export documentation including commercial invoice, packing list, certificate of origin, and HS Code 8538.90 classification support.

All shipments are covered by a 12-month warranty from the date of shipment. In the event of a verified quality discrepancy, replacement units are dispatched within 3 business days of claim confirmation. Our technical team — with direct experience in DeltaV system architecture — is available to support pre-purchase compatibility verification and post-delivery installation queries.
