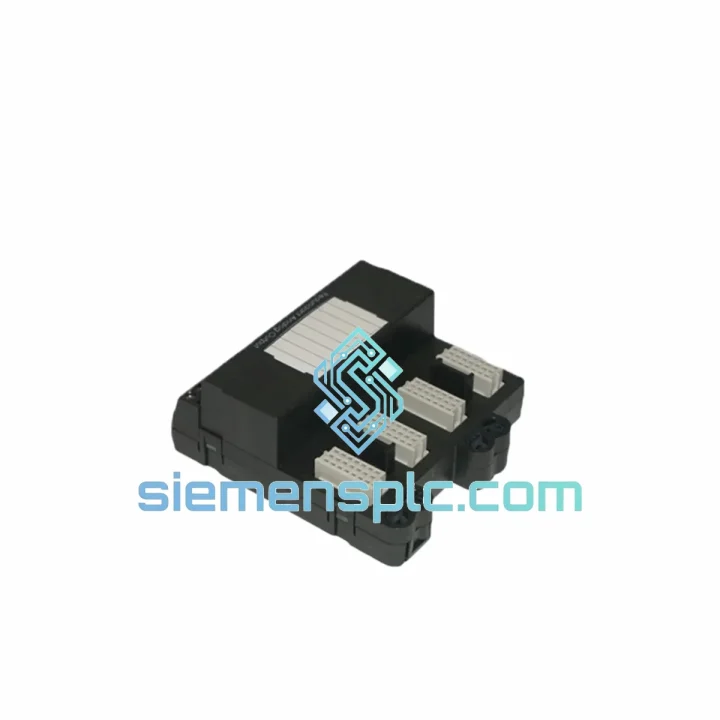

Emerson KC4011X1-BD1 12P6758X022 Field Termination Assembly

Emerson KC4011X1-BD1 / 12P6758X022 — Every Minute Your Loop Is Down, You’re Bleeding Money

It’s 02:00. Your DeltaV marshalling cabinet has gone dark on a critical process loop. Field signals are dead. The board operator is in manual, burning through shift coverage, and your maintenance supervisor is standing behind you waiting for an answer. The culprit: a failed KC4011X1-BD1 field termination assembly — the passive wiring interface that bridges every field instrument to your DeltaV I/O card. Without it, the card sees nothing. There is no software patch, no configuration workaround. You need the physical part, and you need it before the next shift handover.

This is exactly the scenario siemensplc.com was built for. We hold the KC4011X1-BD1 (cross-reference: 12P6758X022) in stock at our Xiamen warehouse, ready to dispatch within 24 hours of purchase order confirmation via DHL Express or FedEx International Priority. We have shipped this part to refineries in the Middle East, chemical plants in Southeast Asia, and offshore platforms in the North Sea — all on emergency timelines. We know what downtime costs. We move accordingly.

⚡ URGENT REQUIREMENT? Contact us now:
📧 [email protected] | 💬 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that the KC40-series FTAs fail in predictable ways. Here is what to check before you condemn the part — and what to watch for when you swap it.

Top Failure Modes in the Field

• Terminal oxidation and contact resistance creep: The most common failure in coastal, offshore, or high-humidity environments. Corroded screw terminals increase loop resistance incrementally — DeltaV starts logging sporadic AI channel faults with no corresponding field event. Measure terminal-to-terminal resistance with a milliohm meter. Anything above 0.5 Ω on a signal terminal is suspect. Don’t replace the I/O card until you’ve ruled this out.
• Surge-induced PCB tracking: Long field cable runs in open-air installations are lightning antennas. A surge event can arc across terminal gaps and leave carbon tracking on the FTA substrate. Pull the assembly and inspect under a work light. Visible burn marks between terminals confirm the FTA is the casualty — not the I/O card behind it. Replace the FTA first; it’s a fraction of the cost.
• Ribbon/multi-pin connector fretting: The KC4011X1-BD1 mates to the DeltaV I/O card via a multi-pin connector. Vibration — especially on compressor skids or near rotating equipment — works this connection loose over months. Before raising a parts order, reseat the connector firmly, cycle power to the I/O carrier, and check DeltaV Diagnostics. If channel faults clear, you’ve saved yourself a procurement cycle.
• Post-maintenance wiring reversal: After any field rewiring, verify polarity on every analog input channel. A reversed 4–20 mA loop won’t damage the FTA but will produce a pegged-low reading that mimics a hardware fault. Check the loop before you pull the part.
• Incorrect FTA variant installed: The KC40 family covers multiple I/O types. Confirm the replacement KC4011X1-BD1 matches the I/O card type (AI, AO, DI, DO) installed in that slot. Installing an AO-type FTA on an AI card will produce channel faults that look like hardware failure but are purely a mismatch error.

Step-by-Step Replacement Protocol

• Before touching any wiring: photograph every terminal on the existing FTA. The KC4011X1-BD1 can carry 16 to 32 field terminations — label every wire with a marker or cable flag before disconnecting.
• At the DCS workstation: open DeltaV Diagnostics, isolate the affected I/O card, and place all associated control loops in manual mode. Confirm with the board operator before proceeding.
• Disconnect field wiring from the FTA terminals in sequence. Keep wire bundles organized — do not let them drop into the cabinet and intermix with adjacent marshalling rows.
• Disconnect the multi-pin connector between the FTA and the I/O card. Note the connector orientation — it is keyed, but confirm visually before reinsertion.
• Install the replacement KC4011X1-BD1. Seat the multi-pin connector fully until you feel the latch engage. Reconnect field wiring per your photographs, verifying polarity on all analog channels.
• In DeltaV Diagnostics: bring the I/O card back online and verify each channel. Cross-check signal values against field instrument readings before returning any loop to automatic.
• For tested-surplus units: run a 30-minute soak in manual mode, monitoring all channels for intermittent faults, before handing control back to operations.

Reliability in Harsh Conditions

Not every DeltaV marshalling cabinet sits in a climate-controlled control room. The KC4011X1-BD1 is deployed in some of the most demanding industrial environments on the planet — and it is built to handle them.

• Thermal performance: Rated 0°C to +60°C continuous operation. In practice, marshalling cabinets in desert refineries regularly see ambient temperatures at the upper end of this range during summer shutdowns. The passive design of the FTA — no active components, no heat-generating circuitry — means it handles thermal stress better than the I/O cards it serves.
• Humidity and condensation: Rated to 95% RH non-condensing. For offshore and tropical installations where cabinet breathing cycles cause condensation, ensure cabinet heaters and desiccant packs are functional. The FTA terminals are the first point of failure when moisture is present — not the last.
• Vibration and mechanical shock: Designed to IEC 68-2-6 vibration profiles. DIN rail mounting with proper end stops and cable strain relief prevents mechanical fatigue on terminal screws. On compressor skids or near reciprocating machinery, inspect terminal torque annually — vibration loosens screw terminals over time regardless of initial torque spec.
• EMC and electrical noise: CE marked and designed to operate in the electrically noisy environment of a process plant I/O room. Proper cabinet grounding and cable segregation (signal vs. power) remain the engineer’s responsibility — the FTA does its part.
• Connector cycle life: The multi-pin connector between the FTA and I/O card is rated for repeated insertion cycles, supporting sites that hot-swap I/O cards during planned maintenance windows without replacing the FTA each time.

Every unit dispatched from siemensplc.com undergoes a pre-shipment inspection: terminal condition, connector seating integrity, and physical housing check. New factory-sealed units ship in original Emerson ESD packaging. Tested surplus units are repackaged in anti-static foam with humidity indicator cards and a signed inspection record.

Global Express Logistics

Our warehouse operates out of Xiamen, Fujian — a tier-one export hub with direct airfreight access via Xiamen Gaoqi International Airport and sea freight via the Port of Xiamen. When your plant is down, geography matters. Here is what our logistics network delivers:

• DHL Express — Asia Pacific: Xiamen to Singapore, Kuala Lumpur, Jakarta, Bangkok — 1 to 2 business days. To Mumbai, Chennai, Karachi — 2 to 3 business days.
• DHL Express — Middle East: Xiamen to Dubai, Abu Dhabi, Riyadh, Doha — 2 to 3 business days. Covers the majority of Gulf petrochemical and refinery sites.
• DHL / FedEx — Europe: Xiamen to Rotterdam, Frankfurt, London, Milan — 2 to 3 business days. Suitable for North Sea offshore support bases and European chemical clusters.
• FedEx International Priority — Americas: Xiamen to Houston, Los Angeles, New York — 2 to 3 business days. To São Paulo and Buenos Aires — 3 to 4 business days.
• Export documentation: Commercial invoice, packing list, and certificate of conformance prepared same day as shipment. HS code 8538.90 applied for customs classification. All exports are Xiamen Customs compliant.
• Emergency dispatch protocol: Orders confirmed before 14:00 CST with payment cleared are eligible for same-day dispatch. Contact us via WhatsApp for real-time stock confirmation and ETA commitment before raising your PO.
• Payment terms: USD, EUR, HKD, and CNY accepted. T/T bank transfer, PayPal, and trade finance terms available for qualified accounts. We do not hold emergency orders for payment processing — contact us and we will work out the fastest path.

We have one operating principle: when your plant is down, every hour we save you is money back in your pocket. Send us the part number, quantity, and delivery address — we will have a confirmed price and ETA back to you within the hour during business hours (08:00–18:00 CST, Monday–Saturday).

Contact Information

📧 Email: [email protected]
💬 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
